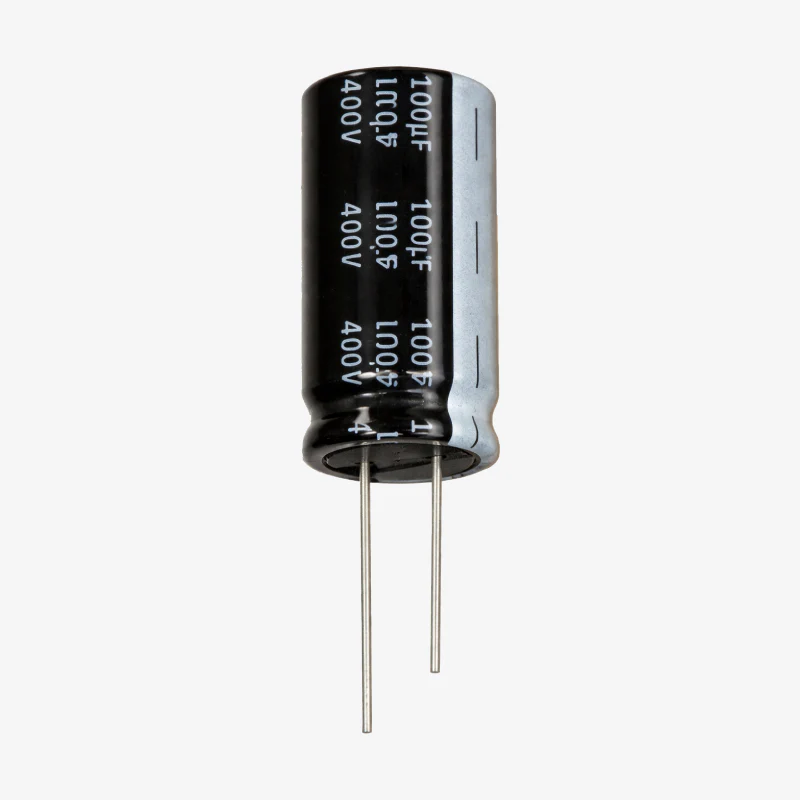

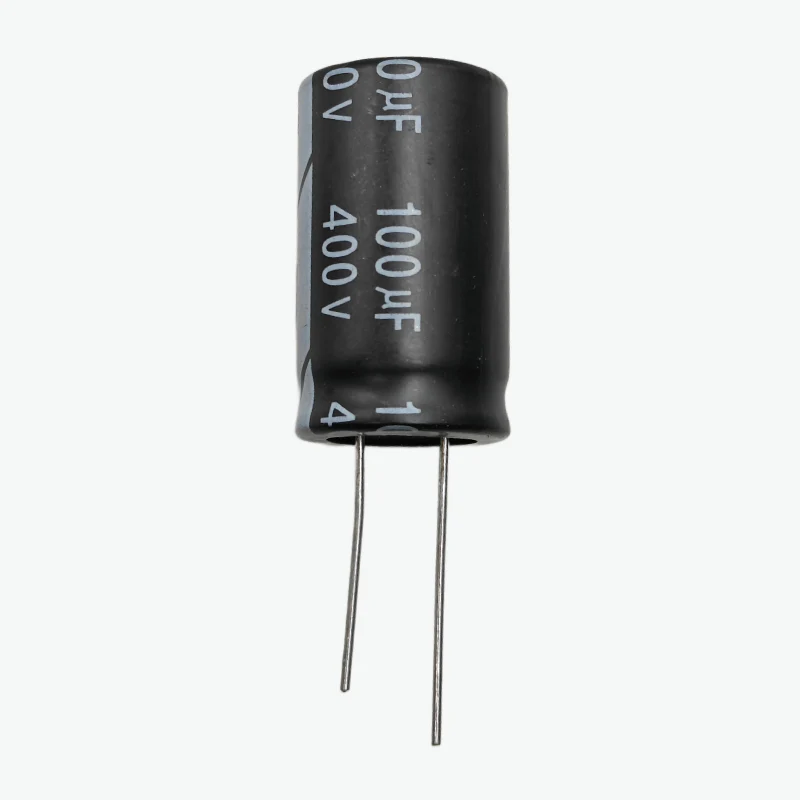

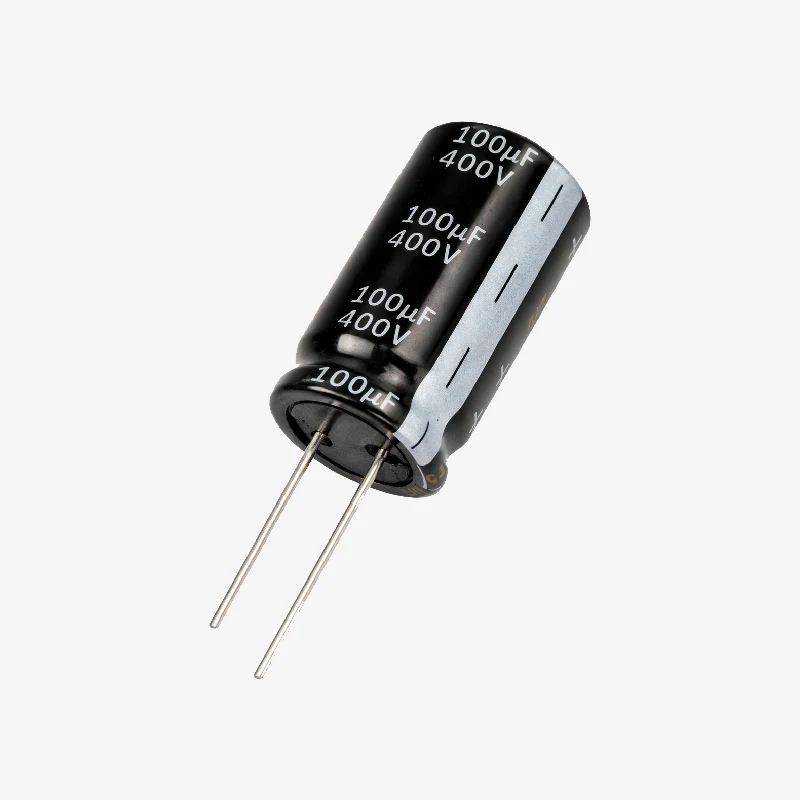

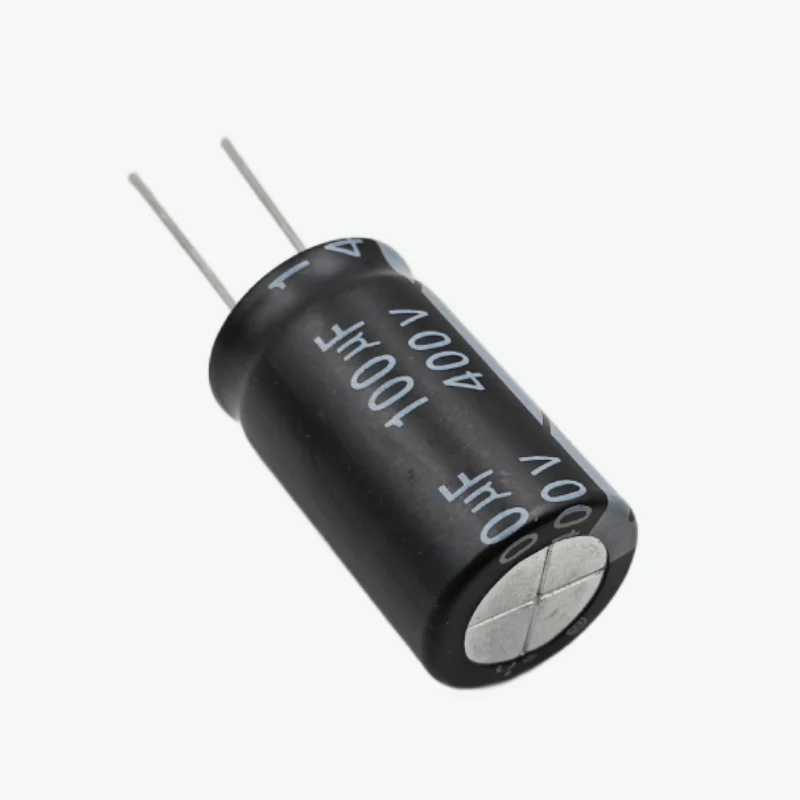

100uF 400V Aluminum Radial Electrolytic Capacitor - Through Hole Package is a polarized aluminum electrolytic capacitor designed for high-voltage DC smoothing and filtering applications, offering a capacitance of 100 microfarads with a 400V DC rating, controlled ESR of 520 mΩ at 100 kHz, ripple current capability of 950 mA at 100 kHz, and a robust radial plug-in can construction suitable for reliable operation in power supplies and industrial electronic circuits.

Features:

1. 100 µF capacitance for high-voltage smoothing and filtering
2. 400V DC rated voltage for high-voltage applications
3. ESR of 520 mΩ at 100 kHz for stable performance
4. Ripple current rating of 950 mA at 100 kHz
5. Radial plug-in through-hole mounting design
6. Robust aluminum can construction
7. Suitable for power and industrial electronics

Specifications:

• Product Type: Aluminum Electrolytic Capacitor
• Capacitance: 100 µF
• Rated Voltage: 400 V DC
• Tolerance: ±20%
• ESR: 520 mΩ @ 100 kHz
• Ripple Current: 950 mA @ 100 kHz
• Mounting Type: Through Hole
• Case Size: 18 × 30 mm
• Polarity: Polarized
• Applications: High-voltage power supplies, DC smoothing circuits, inverters, industrial electronics, consumer power equipment

Package Includes:

1 × 100uF 400V Aluminum Radial Electrolytic Capacitor - Through Hole Package
