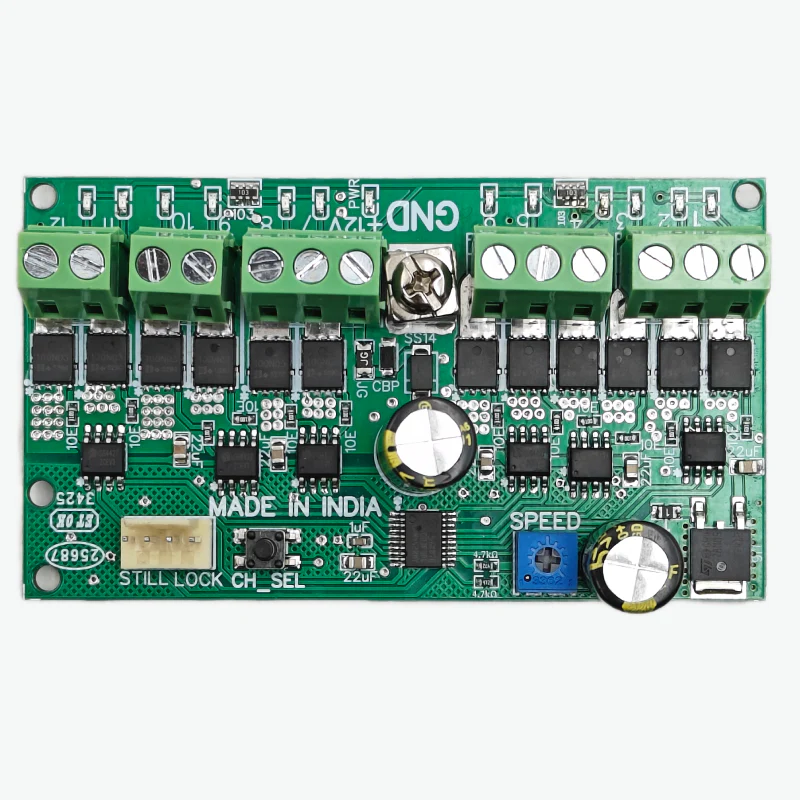

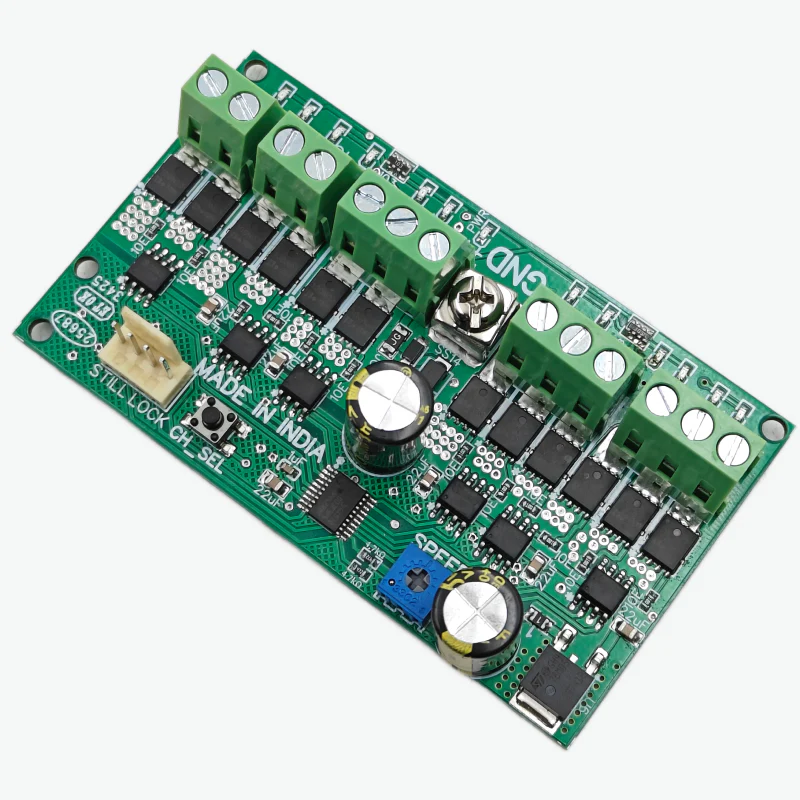

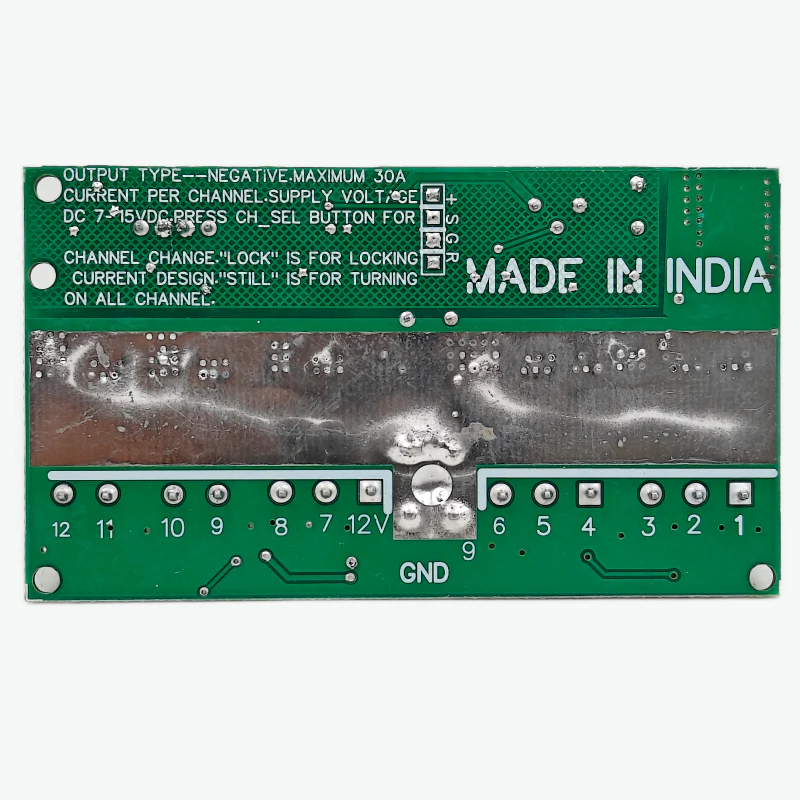

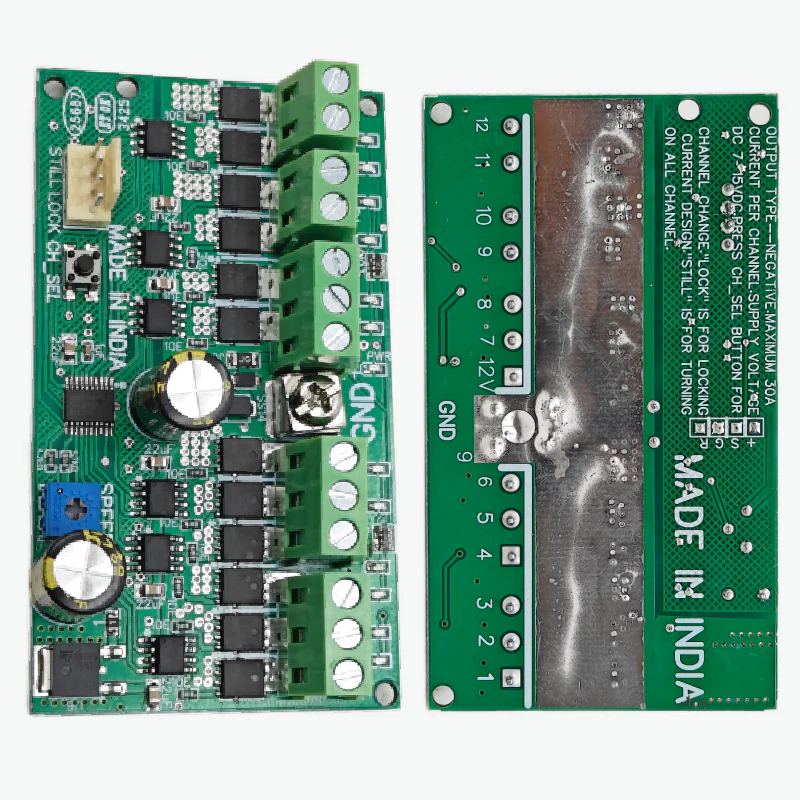

The 12 Channel 50A DC Design Chaser Module is a high-power, ready-to-use electronic control board designed to create sequential and decorative lighting effects across twelve output channels. With a total load capacity of up to 50A, this module is ideal for automotive lighting, stage effects, signage, decorative installations, and DIY electronics projects requiring high-current DC load management. Operating on a 7V–15V DC input range, the module can safely drive multiple high-power DC lights or LED strips when proper wiring, load distribution, and heat management are applied.

Features:

1. 12-channel DC design chaser output
2. High-current support with up to 50A total load
3. Sequential and pattern-based lighting control
4. Wide DC operating voltage range: 7V to 15V
5. Stable and reliable operation for continuous use
6. Suitable for DC lights, LED strips, and other low-voltage DC loads
7. Compact and robust PCB design for easy installation
8. Ideal for automotive, decorative lighting, stage effects, and DIY projects

Specifications:

• Module Type: 12-Channel High-Power DC Design Chaser Controller
• Number of Channels: 12
• Input Voltage: DC 7V – 15V
• Maximum Load Current: Up to 50A (total, application dependent)
• Output Type: Sequential / patterned DC output
• Switching Mode: Automatic and continuous chaser patterns
• PCB Material: FR4
• Operating Temperature: –10°C to +60°C

Package Includes:

1 × 12 Channel 50A DC Design Chaser Module (7–15V DC)
