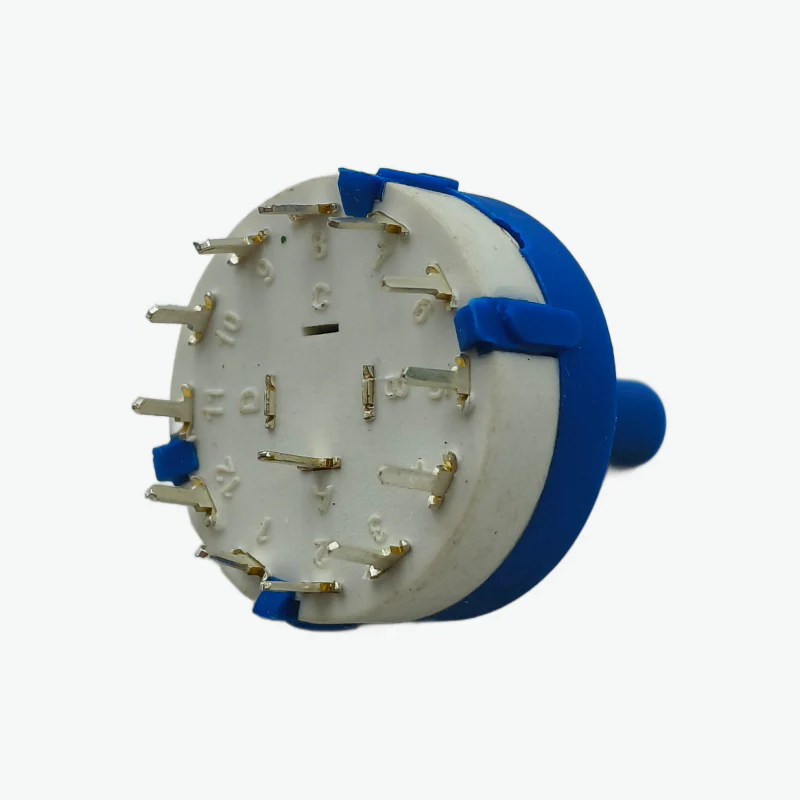

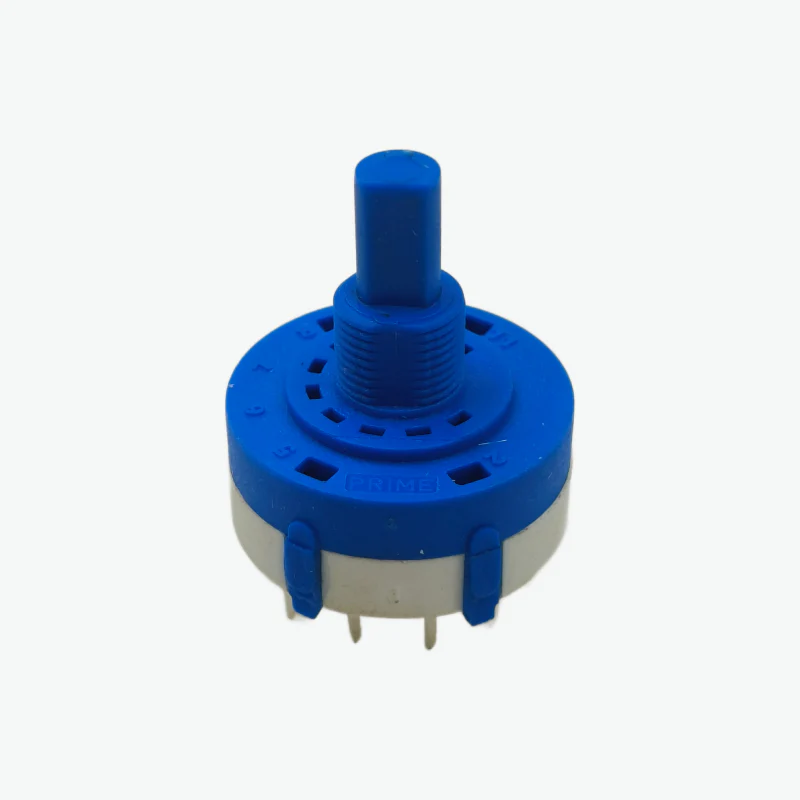

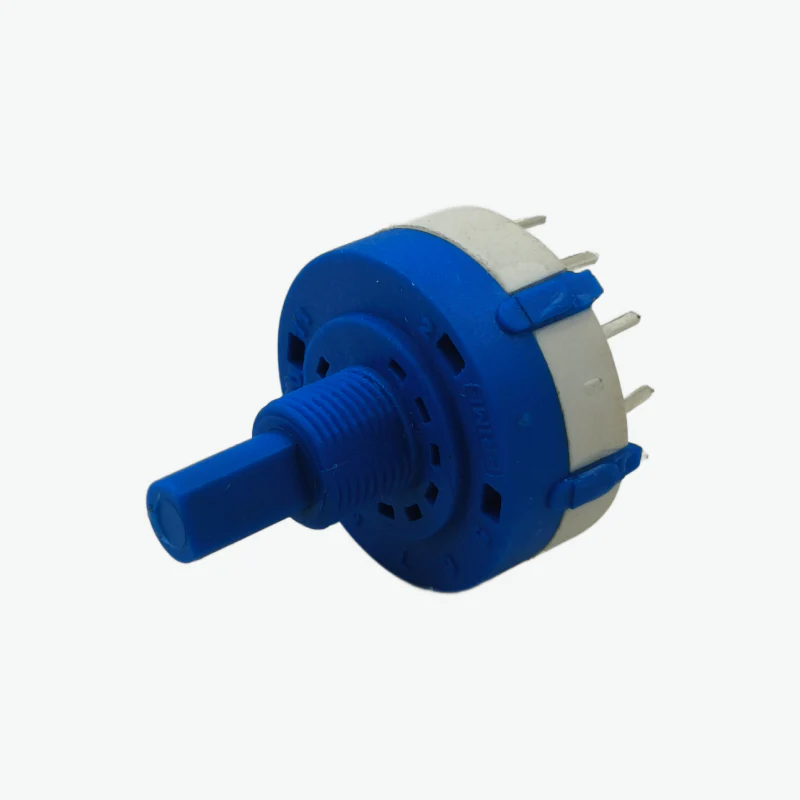

The 1 Pole 12 Way 26mm Rotary  Switch is a durable and high-performance control device designed for smooth and precise regulation. With 12 selectable positions, it provides flexible control for a variety of fan or multi-speed electrical applications. Built with robust engineering thermoplastic and high-quality metal components, this rotary switch ensures excellent insulation, long operational life, and reliable performance under continuous use.

Features:

1. Rated for 5A at 250V AC for standard electrical control
2. 12-step rotary operation for smooth and accurate adjustment
3. Single-pole design suitable for various control circuits
4. High insulation resistance and dielectric strength for safety
5. Rugged thermoplastic housing for enhanced durability
6. Smooth rotation with clear detent positions
7. Tin/Silver-plated terminals ensure stable electrical contact
8. Compact 26mm mounting design for easy panel integration

Specifications:

• Model: 1 Pole 12 Way Rotary Switch
• No. of Poles: 1
• No. of Ways: 12

• Type: Rotary Fan Regulator Switch
• Rated Voltage: 250V AC
• Rated Current: 5A
• Mounting Diameter: 26mm
• Switch Operation: 12 Position (Rotary Selection)
• Body Material: Engineering Thermoplastic
• Contact Material: Tin/Silver Plated Metal

• Insulation Resistance: >1000 MΩ (at 500V DC)
• Dielectric Strength: >2KV
• Operating Temperature Range: -20°C to +70°C
• Electrical Endurance: >5,000 Cycles at Rated Load

Package Includes:

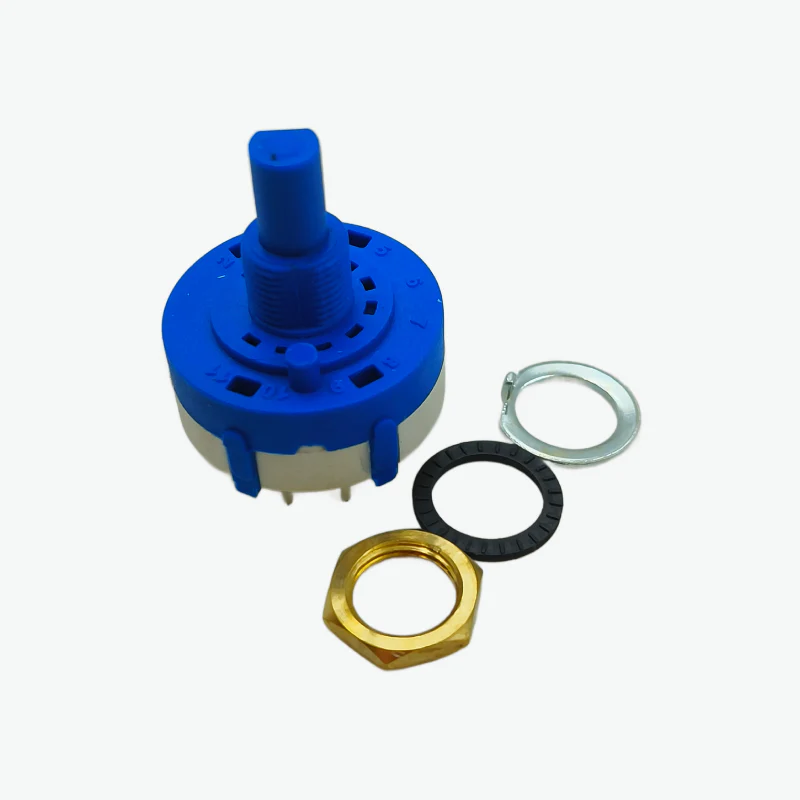

1 × 1 Pole 12 Way 26mm Rotary Switch – 5A 250V AC
