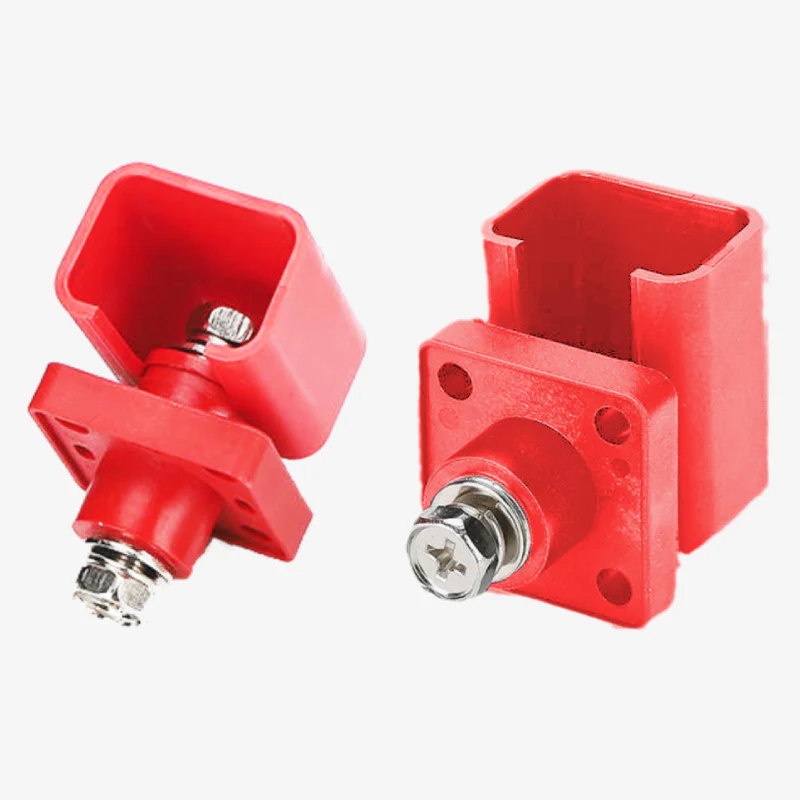

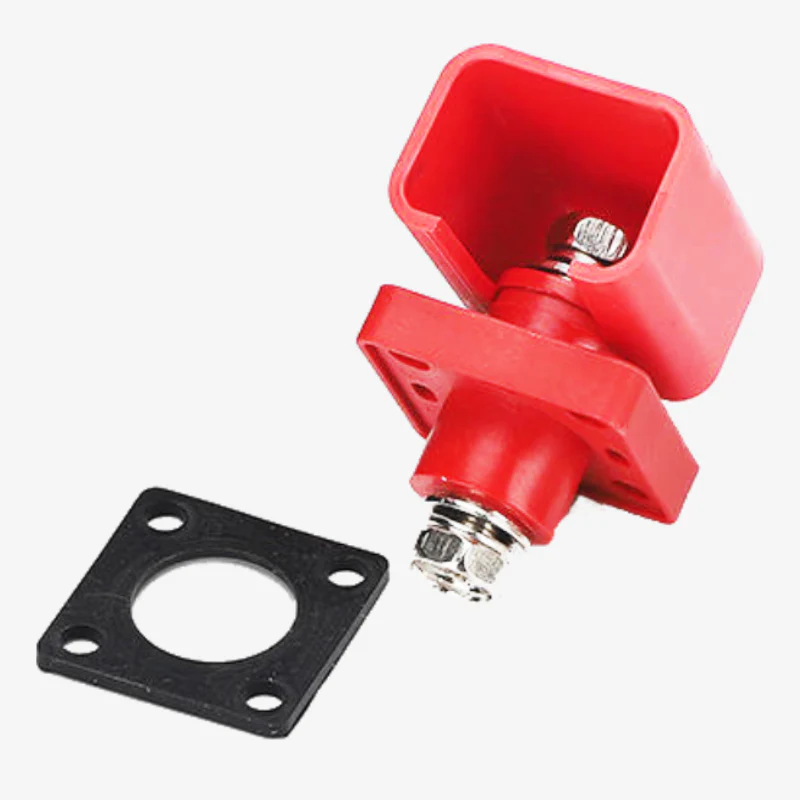

The 120A Bolt Type Copper Double Threaded Square Battery Terminal is a heavy-duty power connector designed for secure and stable high-current battery connections. Built with solid copper conductors and a robust square insulated housing, this terminal ensures low resistance, reliable conductivity, and safe installation in automotive, inverter, solar, UPS, and battery bank systems. The double-threaded bolt design allows firm fastening of lugs and cables, minimizing power loss and preventing overheating under high load conditions. The red insulated cap indicates positive polarity for safe wiring identification and enhanced electrical safety.

Features:

1. Rated for high current applications up to 120A
2. Solid copper conductor for excellent conductivity and minimal voltage drop
3. Double threaded bolt design for strong and secure cable termination
4. Square insulated housing for stable mounting and vibration resistance
5. Red color coding for positive terminal identification
6. Corrosion-resistant metal components for long service life
7. Suitable for battery banks, inverters, UPS systems, and solar installations
8. Easy panel-mount installation with included hardware

Specifications:

• Current Rating: 120A
• Terminal Type: Bolt Type, Double Threaded
• Conductor Material: High-purity Copper
• Housing Type: Square Insulated Base
• Polarity Identification: Red (Positive)
• Mounting Style: Panel Mount
• Thread Type: Dual Stud Threads
• Insulation Material: High-strength heat-resistant plastic
• Contact Resistance: Low resistance for efficient power transfer
• Application Voltage: Suitable for 12V / 24V / 48V battery systems
• Operating Temperature: -20°C to +80°C
• Usage: Battery terminals, power distribution, automotive and electrical systems

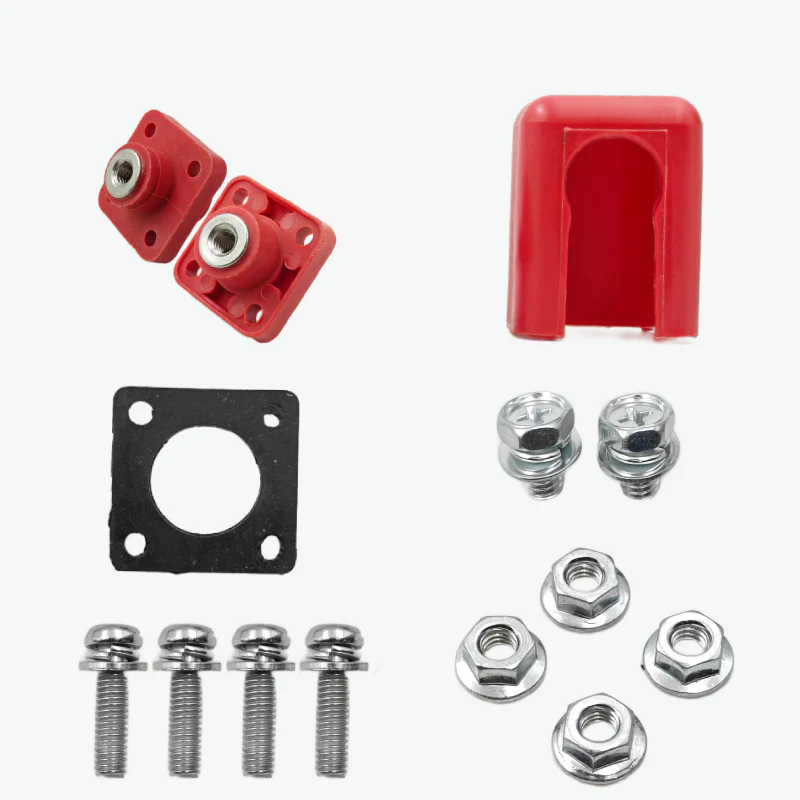

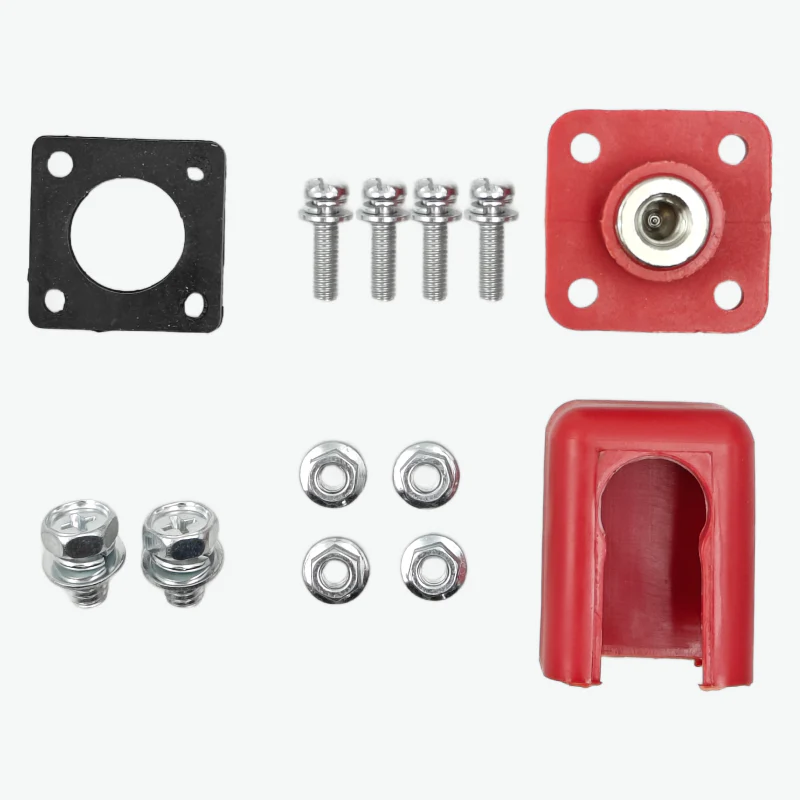

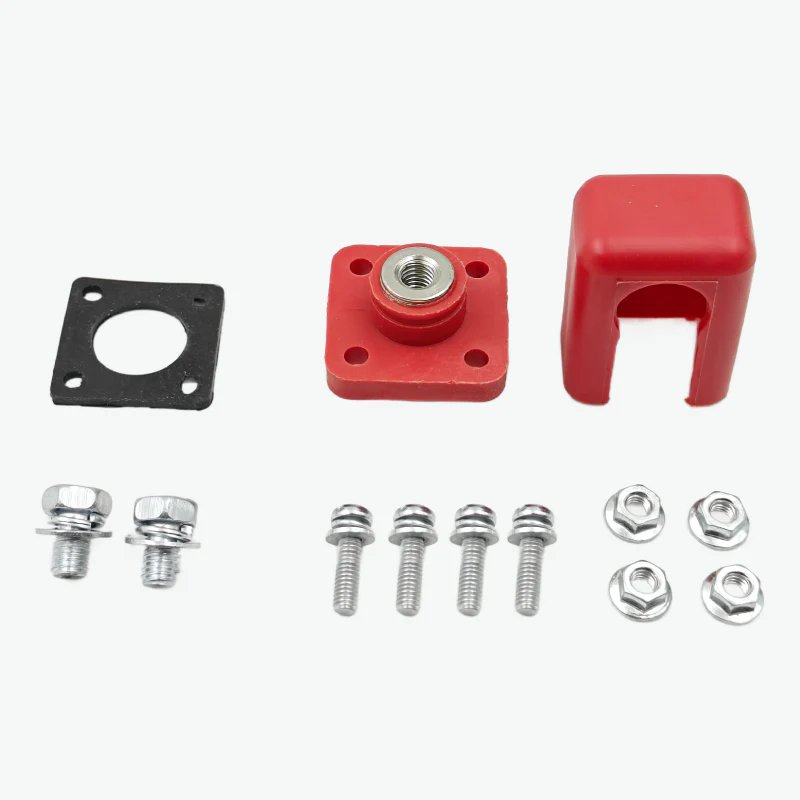

Package Includes:

1 × Red Square Battery Terminal Connector (120A)
1 × Insulating Protective Cover (Red)
1 × Mounting Gasket Plate
4 × Mounting Screws
4 × Nuts
2 × Terminal Fixing Bolts
