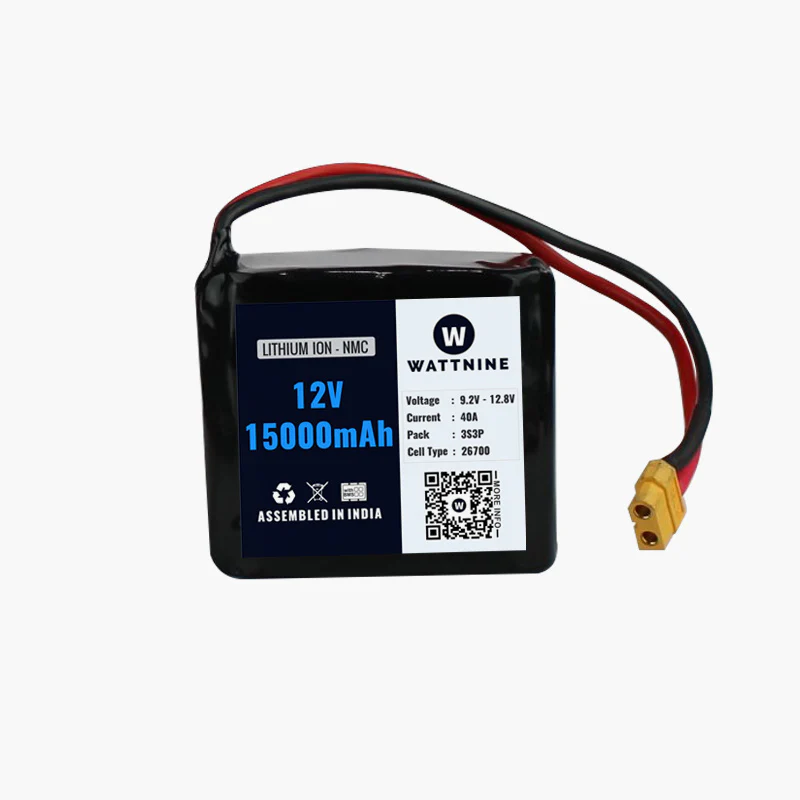

This Battery Pack is rated for 11.1V 15Ah (15,000 mAh). It is built using 26700 lithium NMC cells in a 3S3P configuration. The pack is tested to provide 15Ah at 15A discharge and can be charged using a 6A or 10A 12.6V Lithium charger. It also has a built-in BMS which provides over-charge, over-discharge, and short circuit protection.

  Datasheet / Specification

Recommended Charger - Charging Time



1. 12.6v 2A Li-ion Battery Charger - 8Hrs
2. 12.6v 3A Li-ion Battery charger - 5Hrs
3. 12.6v 5A Lithium Battery Charger - 3Hrs



Specification

• Charging Voltage- 12.6V
• Charging Current- 15A (max)
• Nominal Pack Voltage- 11.1V
• Discharge Current- Tested for 10A, 15A, 20A

Terminals:

• XT60 Connector

Certifications & Warranty:

• BIS Approved: Yes
• BIS Registration Number: R-84005630
• Warranty: 3 Years

Warranty Terms:

This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.

Applications:

• Small scale UPS Battery
• Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
• Wifi Modem or Router Battery for backup
• 12V Remote CCTV Camera
• PSP
• Industrial Machines
• Emergency Lights
• Robotics and RC cars
• Music Players and Audio Systems

Warranty Terms:

This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
