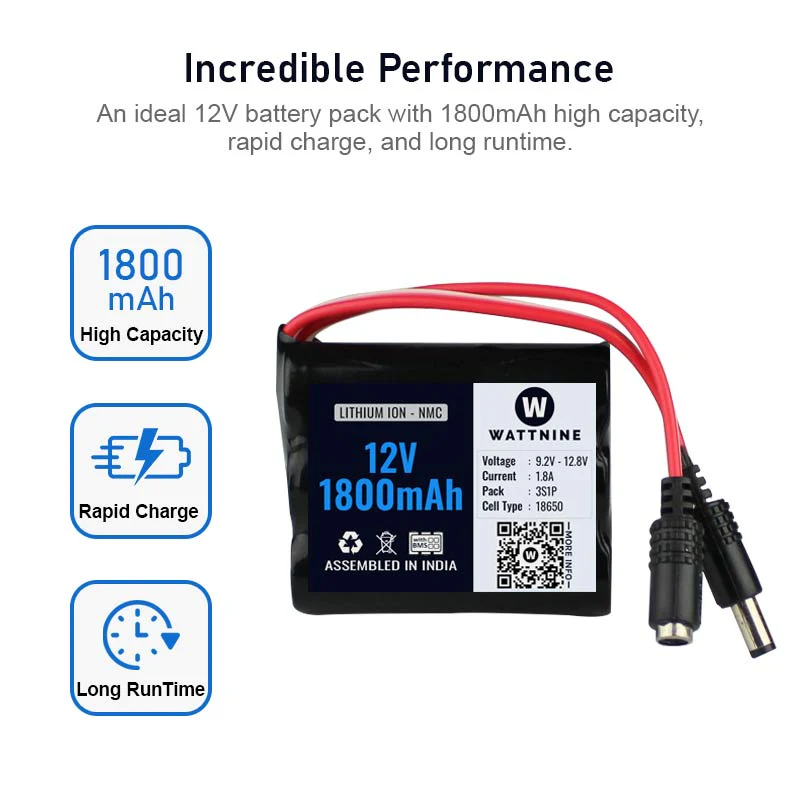

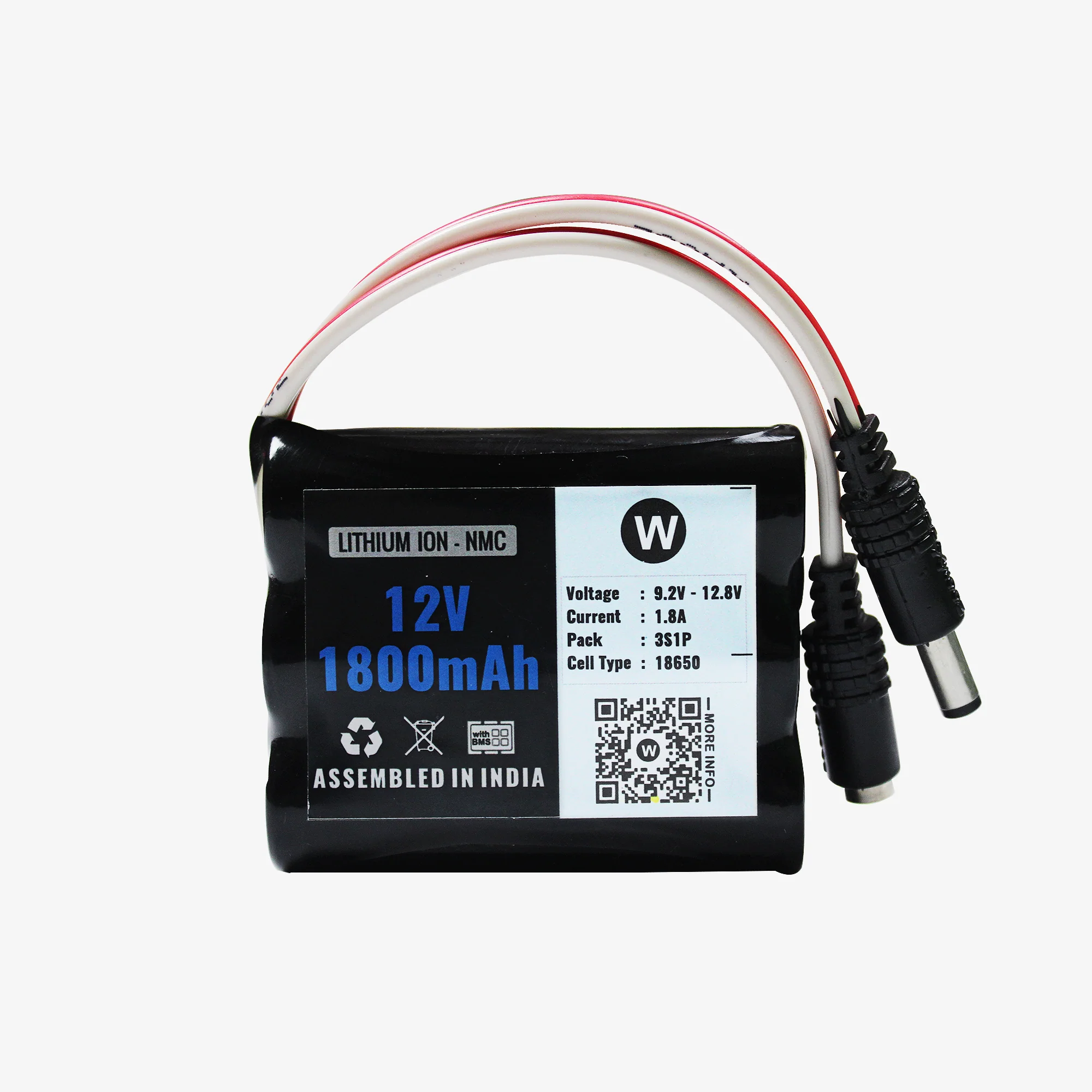

WATTNINE® 12V 1800mAh Rechargeable Lithium Battery Pack with Warranty for GPS, CCTV, Industrial and Commercial Application
This Li-ion Rechargeable Battery Pack has a nominal voltage of 12.6 volts and is a 3s battery pack. The 12V lithium ion battery pack contains three cells connected in series, giving it a capacity of 1800mAh. The battery pack has a built-in BMS that protects the battery from overcharging, over-discharging and short circuit.
Recommended Charger - Charging Time
- 12.6v 1.5A Lithium Battery Charger - 1Hr.
Specification
- Charging Voltage- 12.6V
- Charging Current- 1000mA
- Nominal Pack Voltage- 11.1V
- Discharge Current- Tested for 500mA, 1A, 2A
Protection (Included BMS)
- Short Circuit Protection
- Overvoltage cut-off- 12.8
- Undervoltage cut-off- 9.2V
Applications:
- Small scale UPS Battery
- Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
- Wifi Modem or Router Battery for backup
- 12V Remote CCTV Camera
- PSP
- Industrial Machines
- Emergency Lights
- Robotics and RC cars
- Music Players and Audio Systems
Warranty Terms:
This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
How does the protection feature work?
The BMS of the battery pack with lock the output voltage to zero volts on a short circuit or under voltage conditions. Please charge the battery pack with an adapter or RPS (Shown below) to get the Battery Pack working again.
The below graph shows how the battery pack handels itself in different loading conditions, namely at 500mA, 1A and 2A. As you can see in these conditions the capacity of the pack is around 1750mah to 1820mah.
Since the maximum operating voltage of the battery pack is 12.6V it can be used to power your 12V application.
Note: Lithium batteries can become unstable, if not handled properly, resulting in heat or fire. Safety precautions and prior knowledge is advised.
