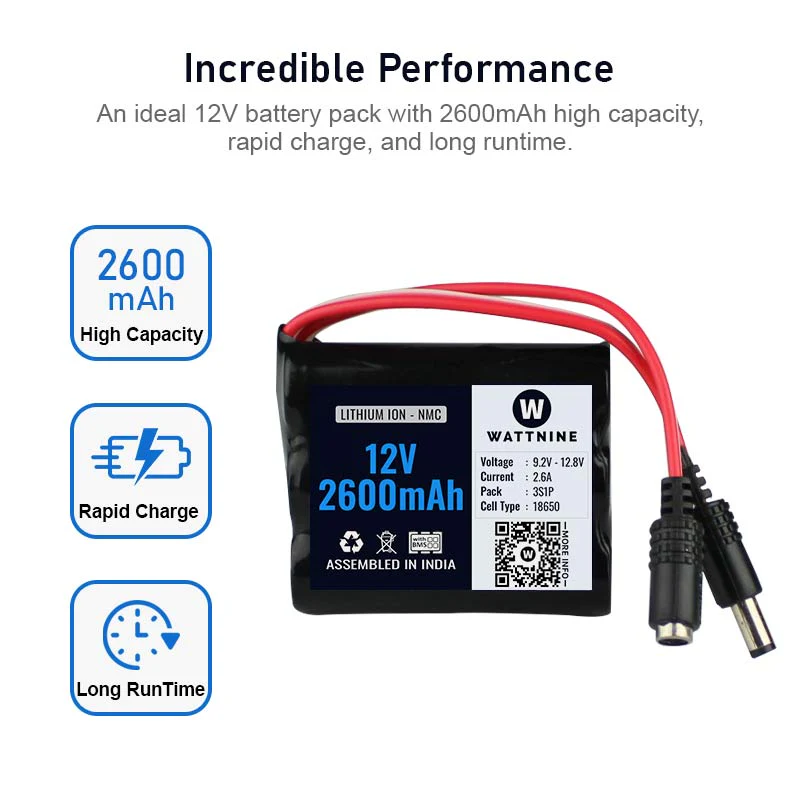

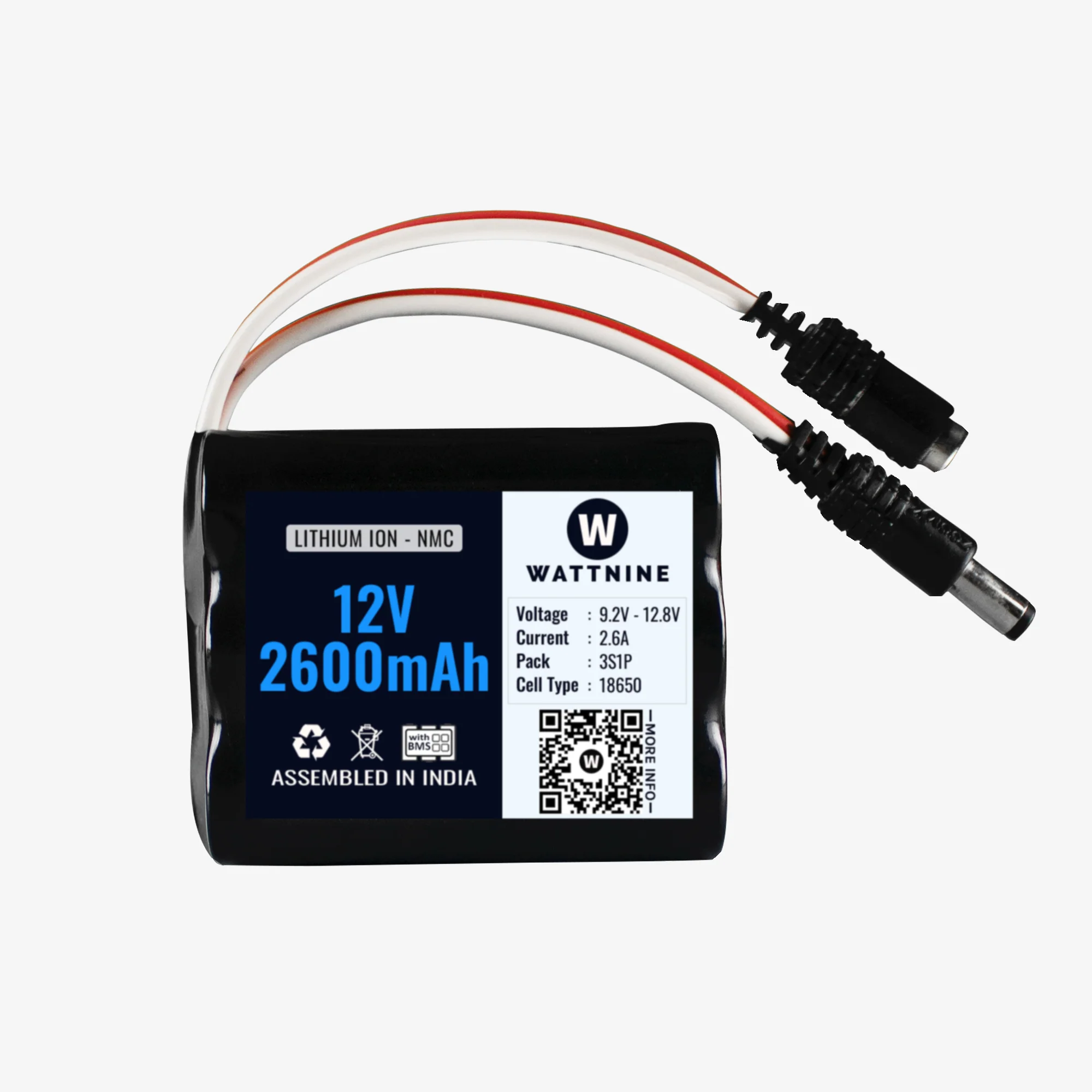

This Li-ion Rechargeable Battery Pack has a nominal voltage of 11.1 volts and is a 3s battery pack. This battery pack contains three cells connected in series, giving it a capacity of 2600mAh. The battery pack has a built-in BMS that protects the battery from overcharging,  over-discharging and short circuit.

Recommended Charger - Charging Time

1. 12.6v 1.5A Lithium Battery Charger - 1Hr 45Min.
2. 12.6v 2A Li-ion Battery Charger - 1Hr 10Min.



  Datasheet / Specification

Specification

• Charging Voltage- 12.6V
• Charging Current- 1.3A
• Nominal Pack Voltage- 11.1V
• Discharge Current- Tested for 1A, 2A
• Max. Disharge Current - 2.6A

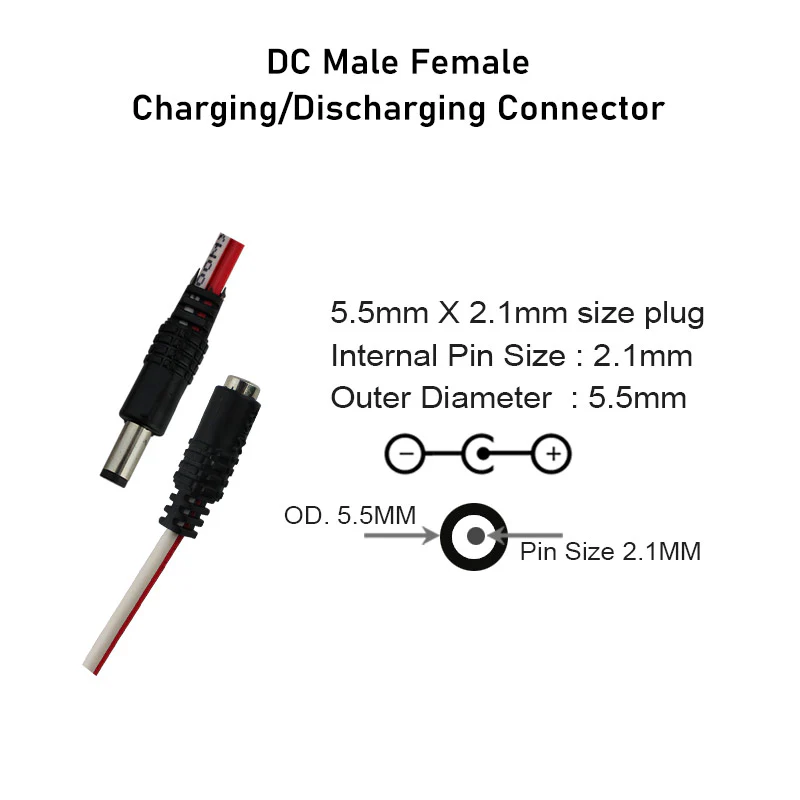

• Charging Method: DC Male Female connectors.

Protection (Included BMS)

• Short Circuit Protection
• Overvoltage cut-off- 12.8
• Undervoltage cut-off- 9.2V

Certifications & Warranty:

• BIS Approved: Yes
• BIS Registration Number: R-84005630
• Warranty: 3 Years

Applications:

• Small scale UPS Battery
• Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
• Wifi Modem or Router Battery for backup
• 12V Remote CCTV Camera
• PSP
• Industrial Machines
• Emergency Lights
• Solar Lights
• Robotics and RC cars
• Music Players and Audio Systems



Warranty Terms:

This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
