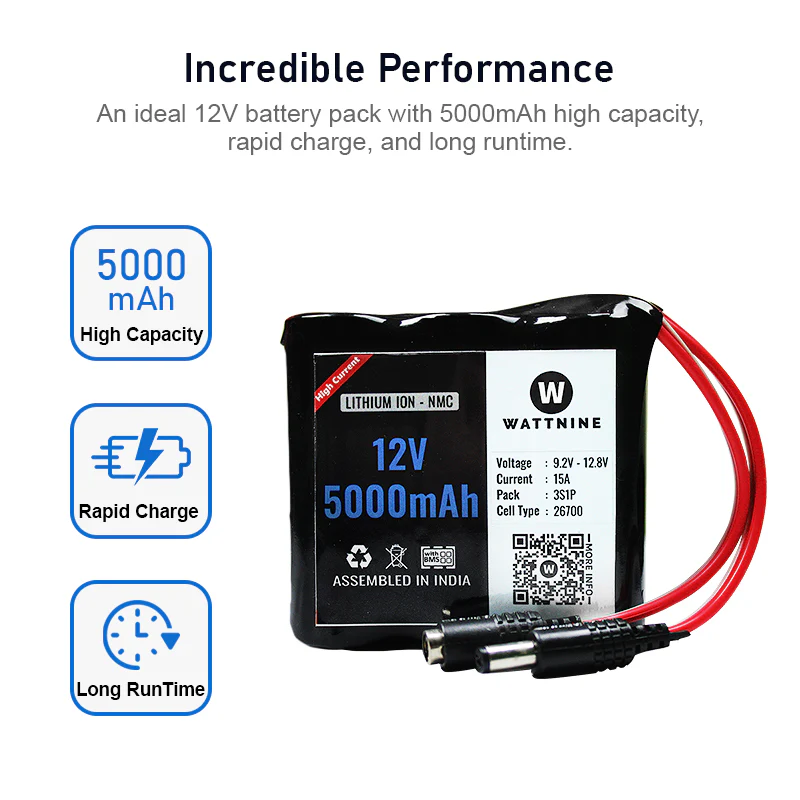

This 12V 5Ah Battery Pack is rated for 11.1V 5Ah (5000mAh). It is built using 26700 lithium NMC cells in a 3S1P configuration. The pack is tested to provide 5Ah at 5A discharge and can be charged using a 2.5A 12.6V Lithium charger. It also has a built-in BMS which provides over-charge, over-discharge, and short circuit protection.

Recommended Charger - Charging Time

1. 12.6v 1.5A Lithium Battery Charger - 3Hrs 30Min.
2. 12.6v 2A Li-ion Battery Charger         -2Hrs 30Min.
3. 12.6v 3A Li-ion Battery charger          -1Hr 30MIn.



  Datasheet / Specification

Specification

• Charging Voltage- 12.6V
• Charging Current- 2.5A
• Nominal Pack Voltage- 11.1V
• Discharge Current- Tested for 3A, 5A, 8A, 10A
• Max Discharge Current - 15A

Terminals:

• DC Male-Female Connector for Charging/Discharging

Certifications & Warranty:

• BIS Approved: Yes
• BIS Registration Number: R-84005630
• Warranty: 3 Years

Applications:

• Small scale UPS Battery
• Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
• Wifi Modem or Router Battery for backup
• 12V Remote CCTV Camera
• PSP
• Industrial Machines
• Emergency Lights
• Robotics and RC cars
• Music Players and Audio Systems
• Solar Lights

Warranty Terms:

This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
