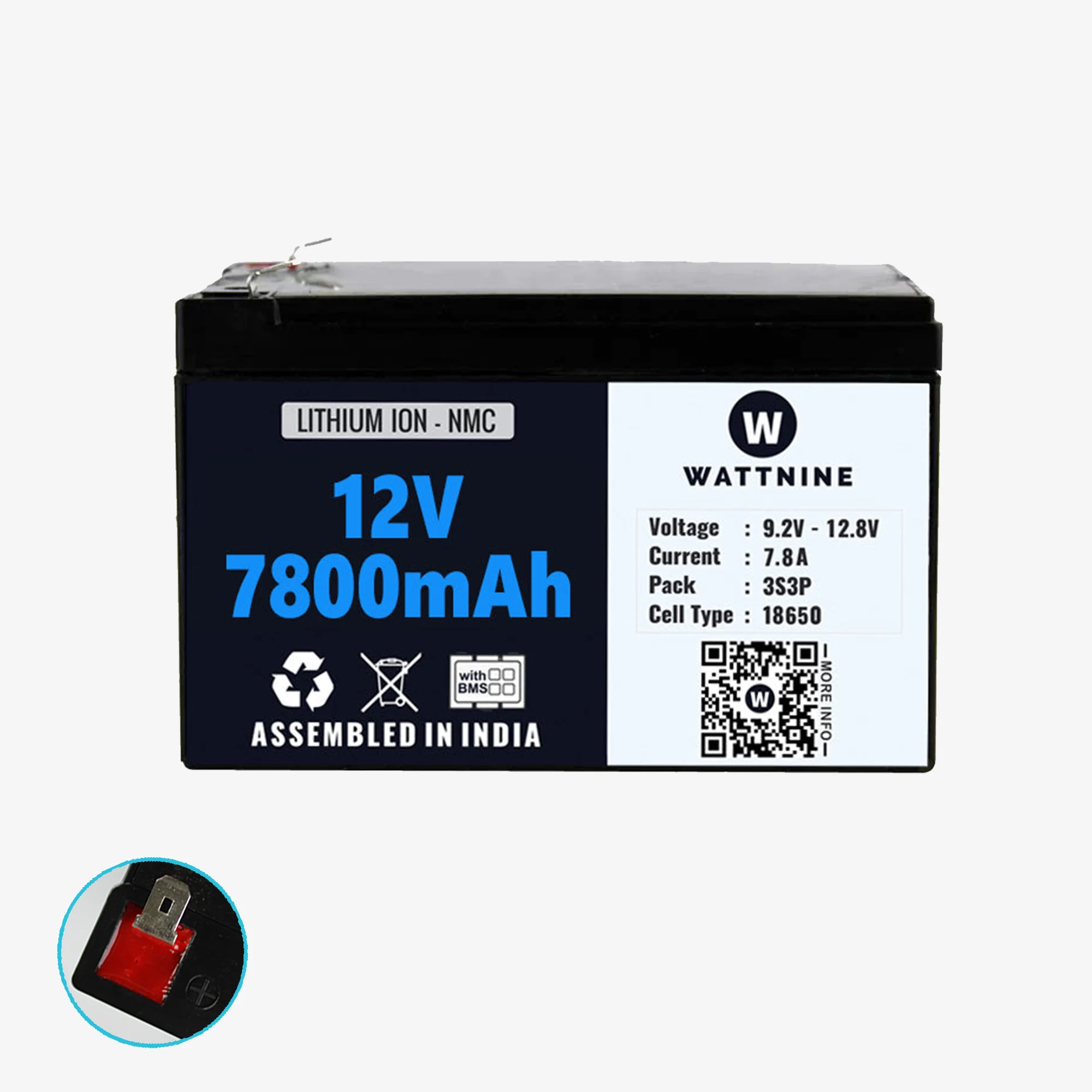

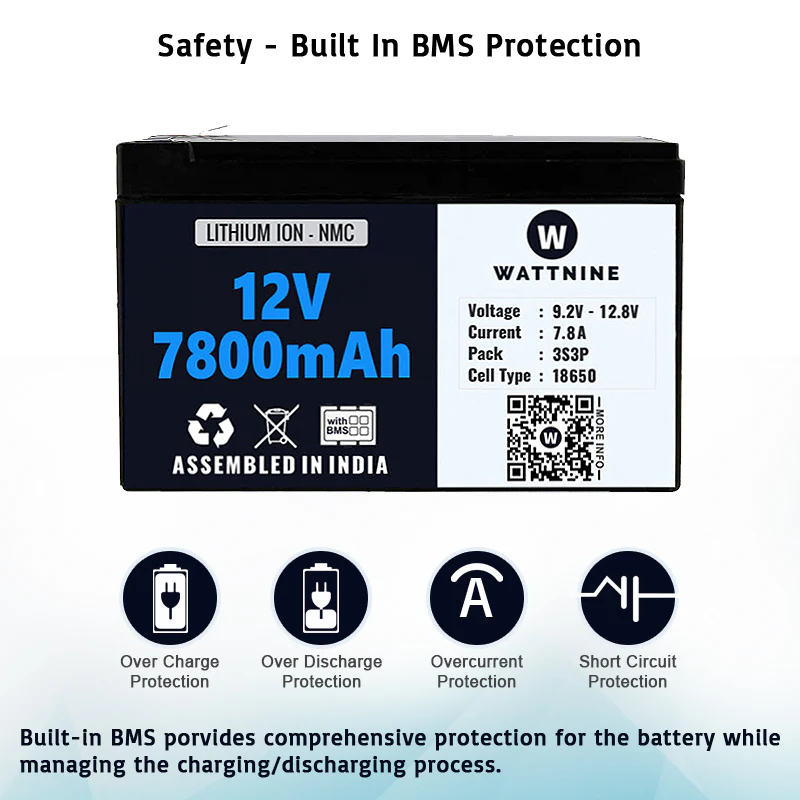

This Battery is rated for 11.1V 7.8Ah (7800 mAh). It is built using 18650 lithium NMC cells in a 3S3P configuration. The pack is tested to provide 7.8Ah Capacity with Max 7.8A discharge and can be charged using a 3.5A 12.6V Lithium charger. It also has a built-in BMS which provides over-charge, over-discharge, and short circuit protection.

Important: If you are looking for a computer ups battery replacement this battery is not suitable. Do not buy for computer UPS



Recommended Charger - Charging Time

1. 12.6v 1.5A Lithium Battery Charger - 5Hrs.
2. 12.6v 2A Li-ion Battery Charger - 3 Hrs 30Min.
3. 12.6v 3A Li-ion Battery charger - 2Hrs 30Min.
4. 12.6v 5A Lithium Battery Charger - 1 Hr 30Min.



  Datasheet / Specification



12V 7800mAh Battery Specifications

• Charging Voltage- 12.6V
• Charging Current- 3.5A (max)
• Nominal Pack Voltage- 11.1V
• Discharge Current- Tested for 5A, 6A, 7A
• Max Discharge Current - 7.5A.

Certifications & Warranty:

• BIS Approved: Yes
• BIS Registration Number: R-84005630
• Warranty: 3 Years



Applications:

• Small scale UPS Battery
• Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
• Wifi Modem or Router Battery for backup
• 12V Remote CCTV Camera
• PSP
• Industrial Machines
• Emergency Lights
• Solar Lights
• Robotics and RC cars
• Music Players and Audio Systems

 Note - Please don't use in Computer UPS or Bike.

Warranty Terms:

This battery pack comes with 3 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
