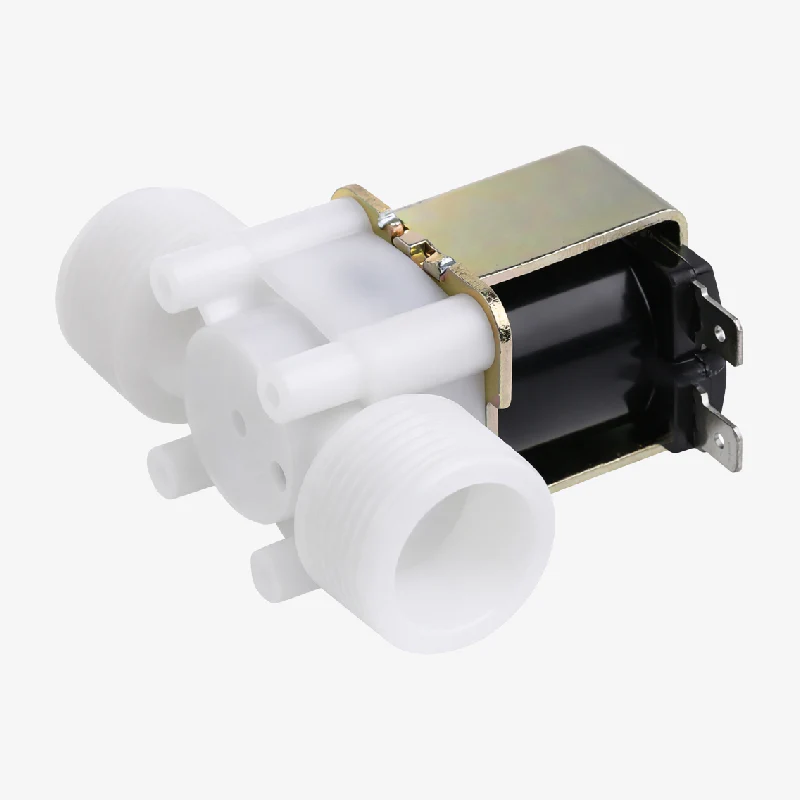

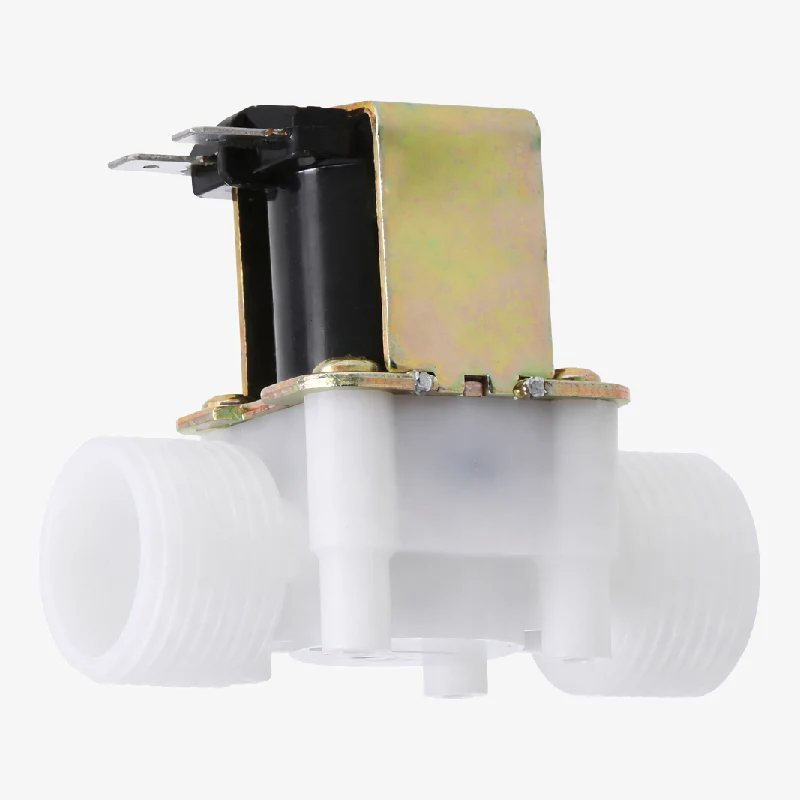

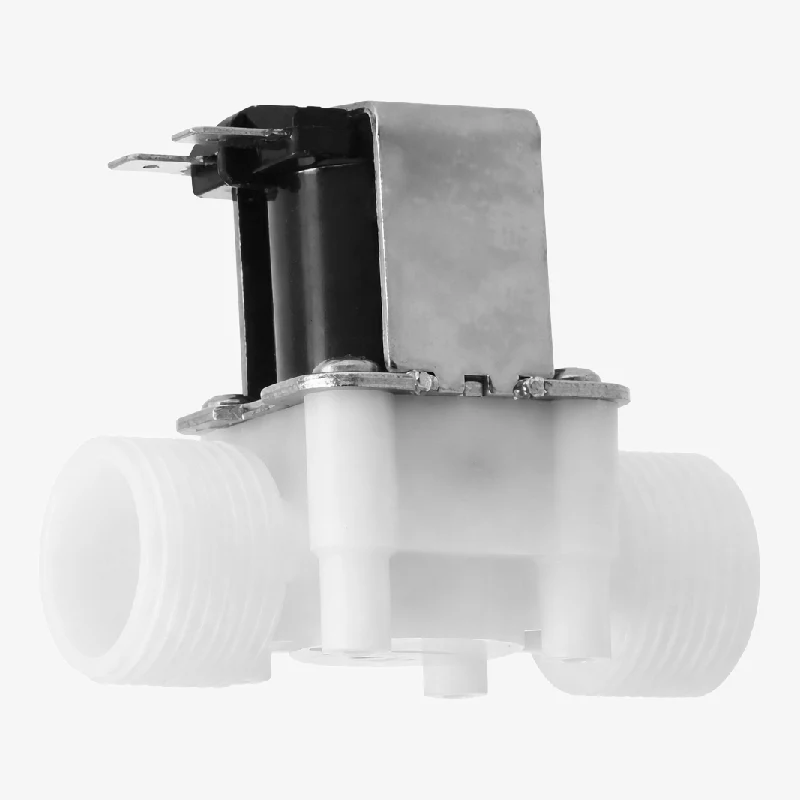

12V DC 1/2 Electric Solenoid Water Air Valve Switch (Normally Closed) is an electrically actuated solenoid valve designed for precise control of water and air flow, featuring a normally closed operating mode that opens when powered with 12V DC, hose barb inlet and outlet suitable for 1/2-inch outer diameter hoses, compact body and coil dimensions, and reliable performance under moderate pressure and temperature conditions, making it ideal for automation systems, fluid control, and general-purpose industrial and DIY applications.

Features:

1. Normally closed operation for fail-safe control
2. 12V DC operating voltage
3. Hose barb inlet and outlet for 1/2-inch outer diameter hose
4. Compact and lightweight construction
5. Low power consumption of 8W
6. Suitable for water and air applications
7. Designed for intermittent operation

Specifications:

• Product Type: Electric Solenoid Valve
• Operating Voltage: 12V DC
• Rated Current: 0.6 A
• Power Consumption: 8 W
• Operation Mode: Normally Closed
• Pressure Range: 0.02 to 0.8 MPa
• Maximum Fluid Temperature: 100°C
• Energized Form: Intermittent
• Inlet / Outlet Type: Hose barb for 1/2 inch hose (outer diameter)
• Body Dimensions: 84 × 57 mm (L × H)
• Coil Size: 34 × 23 mm (W × H)
• Weight: 48 g
• Applications: Water control systems, air flow control, irrigation systems, automation equipment, industrial control, DIY projects

Package Includes:

1 × 12V DC 1/2 Electric Solenoid Water Air Valve Switch (Normally Closed)
