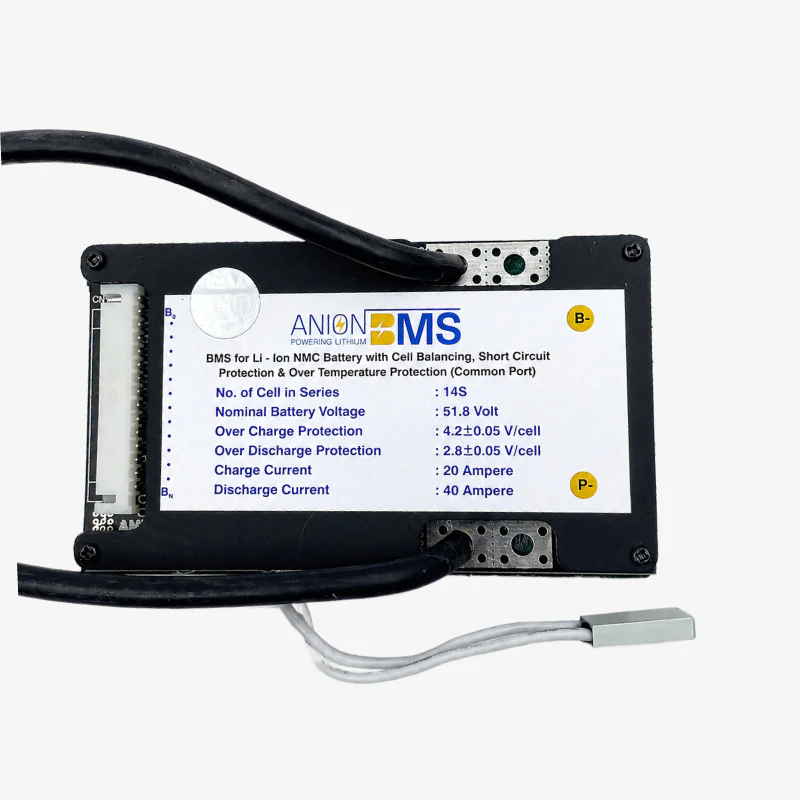

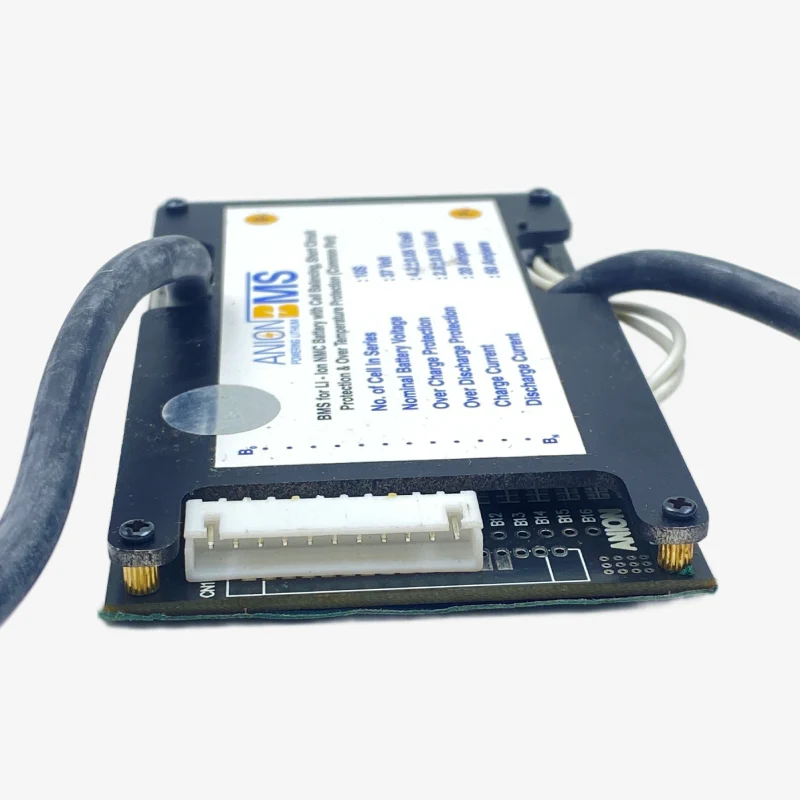

14S 48V 40A BMS for Lithium Ion NMC Battery with Cell Balancing (Common Port) is designed to protect and manage 14-series lithium-ion NMC battery packs with stable performance and balanced charging. Ideal for e-bikes, energy storage systems, and high-power battery applications.

Features:

1. Supports 14S Lithium-Ion (NMC) Battery Packs
2. High Current Handling up to 40A
3. Built-in Cell Balancing Function
4. Overcharge Protection
5. Over Discharge Protection
6. Overcurrent and Short Circuit Protection
7. Common Port Design for Charging and Discharging
8. Reliable and Stable Performance

Specifications:

Parameter	Value
Battery Type	Lithium-Ion (NMC)
Configuration	14S (48V Nominal)
Continuous Current	40A
Balancing Function	Yes
Overcharge Detection Voltage	~4.25V per Cell
Overcharge Release Voltage	~4.1V per Cell
Over Discharge Detection Voltage	~2.7V per Cell
Over Discharge Release Voltage	~3.0V per Cell
Port Type	Common Port
Protection	Overcharge, Over Discharge, Overcurrent, Short Circuit
Operating Temperature	-20°C to +60°C



Also Check these out:-

10S 36V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

10S 36V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

7S 24V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

7S 24V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

Package Includes:

1 x 14S 48V 40A BMS for Lithium Ion NMC Battery with Cell Balancing (Common Port)
