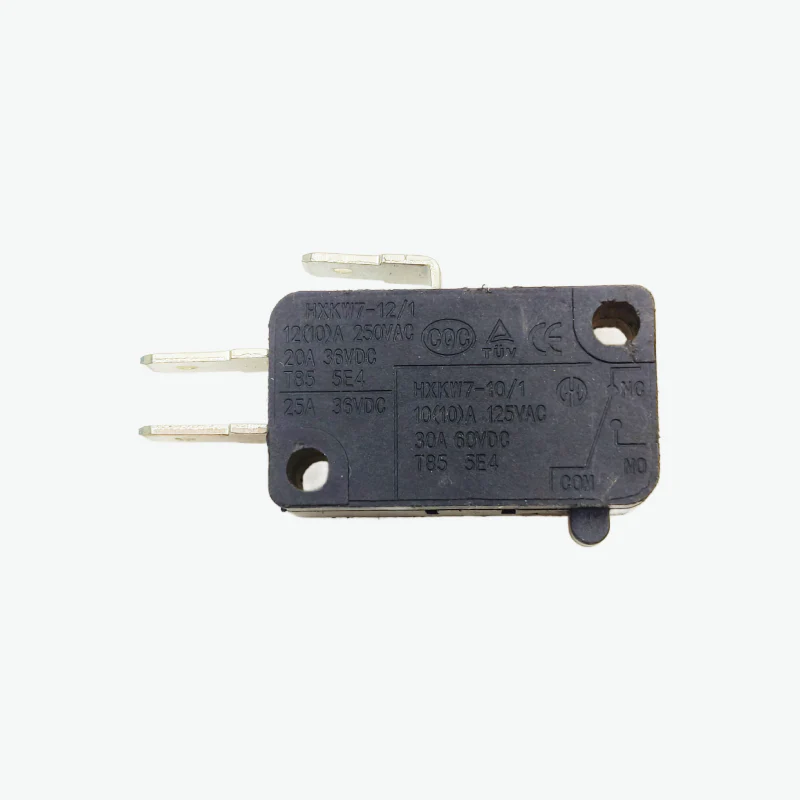

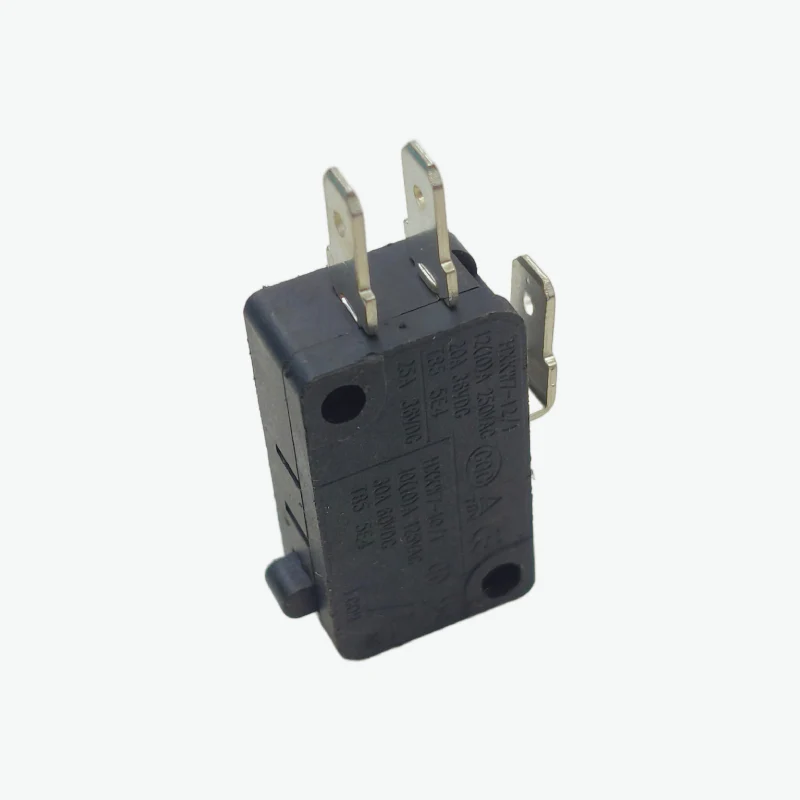

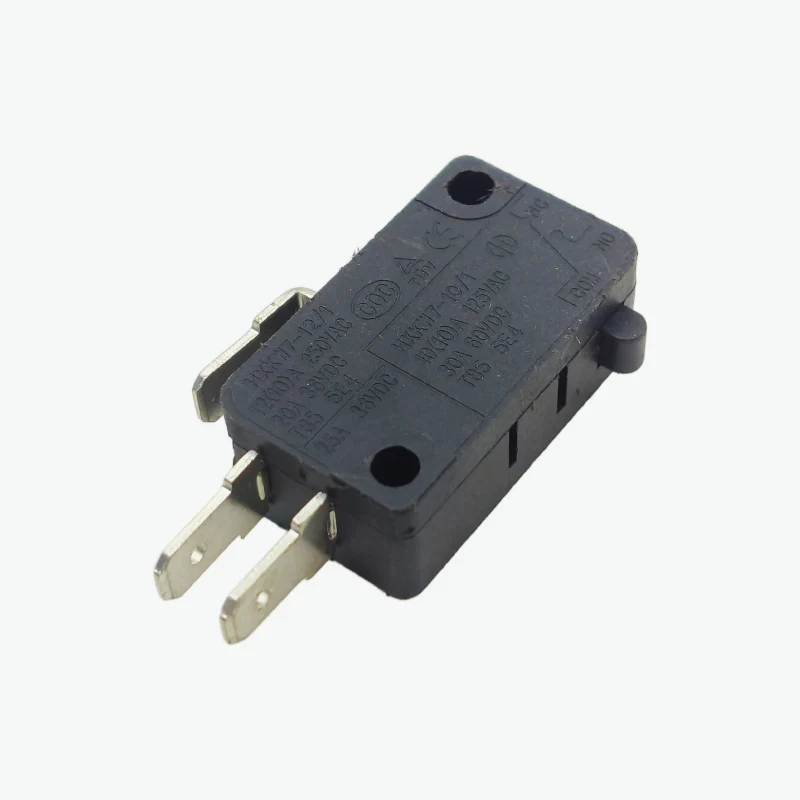

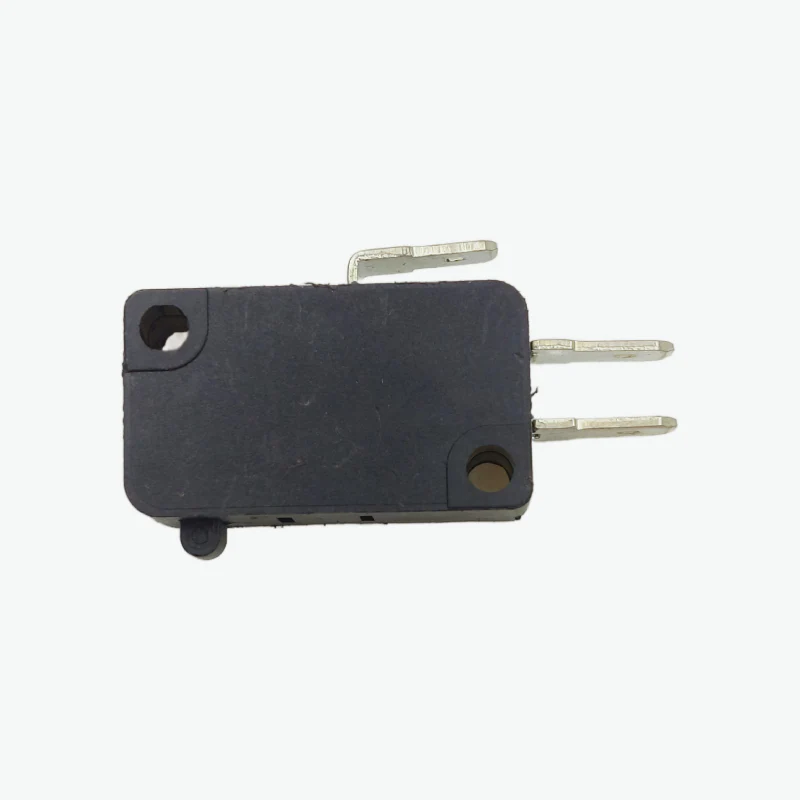

The HXYW7-10/1 Micro Limit Switch is a compact and durable SPDT (Single Pole Double Throw) switch designed for reliable performance in automation, machinery, and industrial control systems. With a high current rating it ensures dependable operation even under heavy loads. Ideal for use in home appliances, CNC machines, safety interlocks, and control panels, this switch provides long mechanical life, precise switching, and easy installation with quick-connect terminals.

Features:

1. High current handling for AC/DC circuits
2. Long-lasting and reliable operation
3. Compact design for easy integration
4. Quick-connect terminals for easy wiring
5. Ideal for automation, robotics, and safety control

Specifications:

• Model: HXYW7-10/1
• Contact Type: SPDT (NO + NC)
• Current Rating: 10A @ 125V AC, 30A @ 60V DC
• Operating Temperature: -25°C to +85°C
• Mechanical Life: 10 million operations (typical)
• Electrical Life: 100,000 operations (under rated load)
• Mounting Type: Panel/surface mount
• Actuator: Pin plunger
• Material: High-strength thermoplastic housing

Package Includes:

1 x HXYW7-10/1 SPDT Micro Limit Switch
