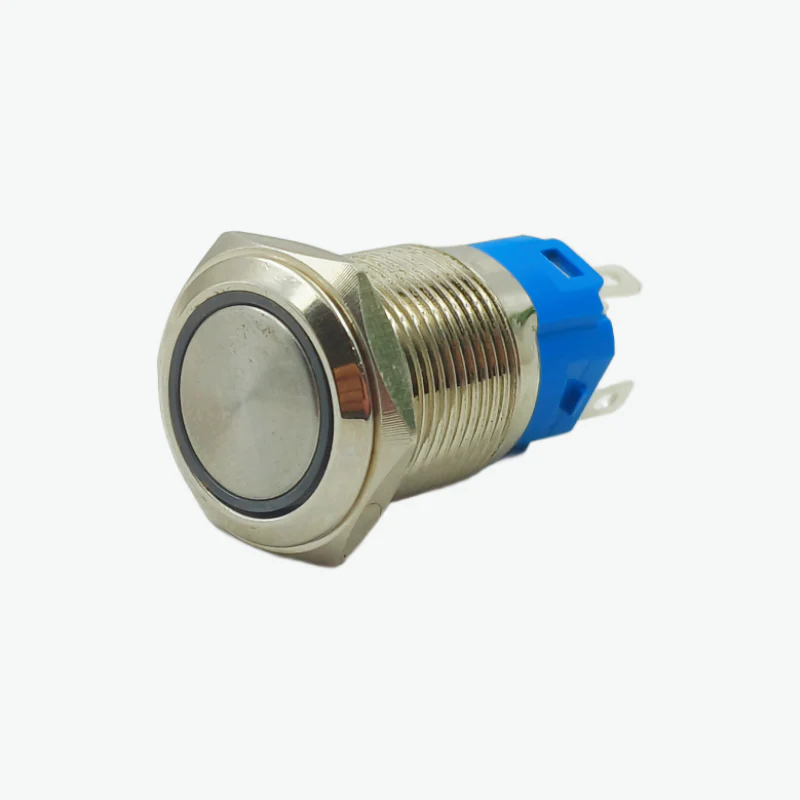

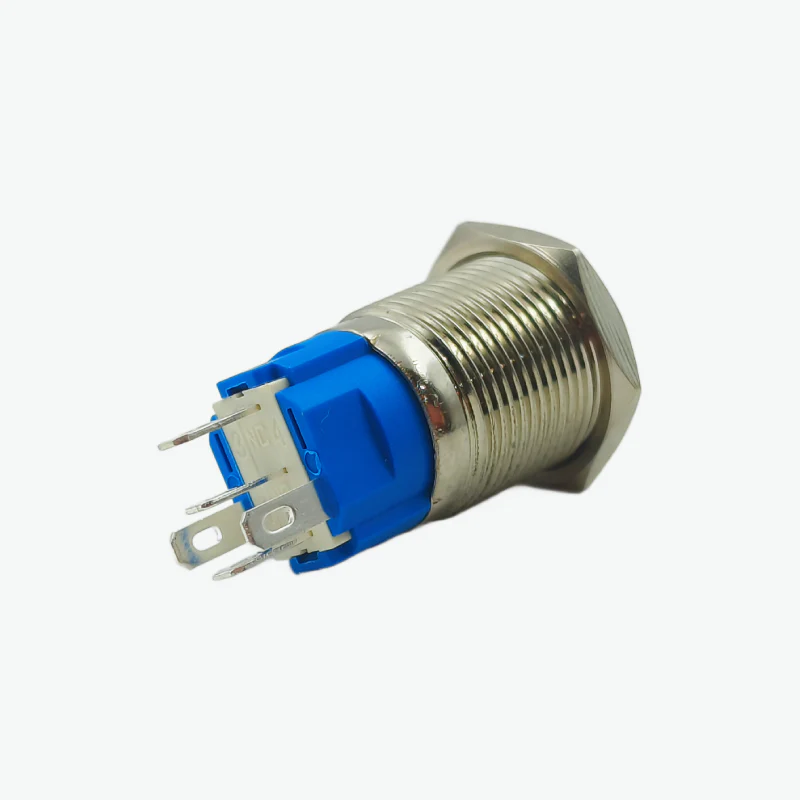

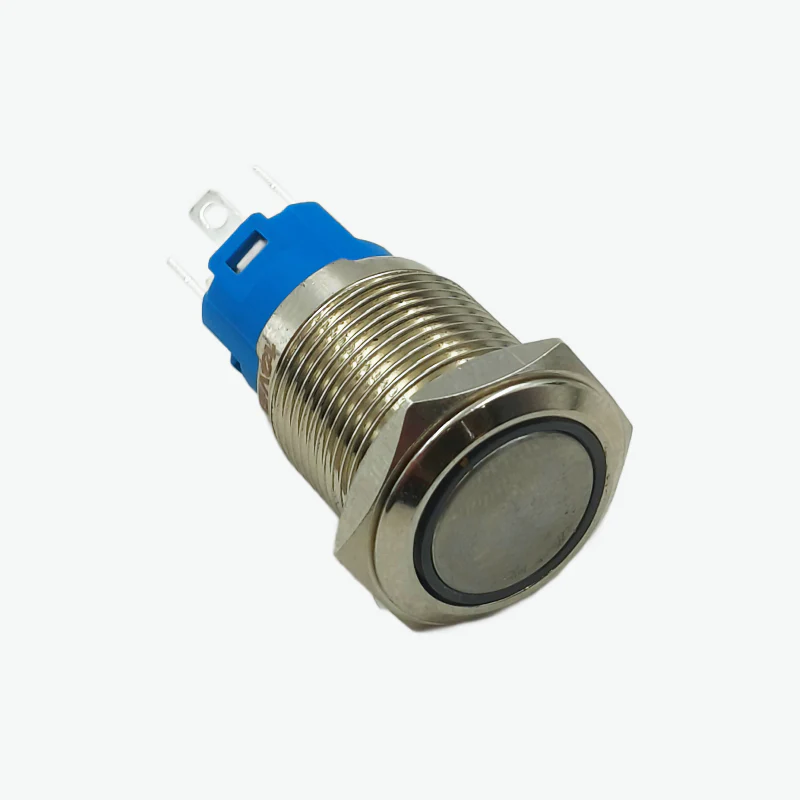

This 16mm Flat Head Metal Latching Push Button Switch is a durable, industrial-grade switch designed for reliable performance and long life. Featuring a ring-style LED illumination and a rugged stainless-steel body, this switch provides a professional look and high resistance against dust and moisture (IP67 rated).

It is a latching type switch, meaning it stays in its last position until pressed again - perfect for On/Off control applications. Operating on 12V - 24V DC, it includes 5 pins (C, NO, NC, and 2 LED pins) allowing independent LED operation or LED activation only when the switch is pressed.

This switch is ideal for use in industrial control panels, automotive systems, power equipment, and DIY electronics projects.

Also check: 16mm Latching/Momentary Switch Connector Socket Plug

Features:

• Ring LED illumination for clear switch status indication
• Latching type – press once ON, press again OFF
• Durable stainless steel metal body for long life
• IP67 waterproof and dustproof for outdoor/industrial use
• Operates on 12V–24V DC wide voltage range
• 5-pin design with separate LED control pins
• Easy 16mm panel mounting with threaded design

Specifications:

Switch Type	Latching (Push ON / Push OFF)
Mounting Hole Diameter	16mm
Operating Voltage	12V–24V DC
LED Type	Ring Illumination
LED Color	Green
Pin Configuration	5 Pins (C, NO, NC + 2 LED Pins)
Switch Rating	4A / 250V AC
Body Material	Stainless Steel
Protection Level	IP67 Waterproof
Operation Life	≥ 50,000 Cycles
LED Life	≥ 50,000 Hours
Mounting Type	Panel Mount
Contact Type	SPDT (Single Pole Double Throw)

Applications:

• Control panels and machinery
• Automotive dashboard or ignition control
• Marine and outdoor equipment
• DIY electronics and robotics
• Power supply On/Off switch
• Computer case or power control

Package Includes:

1 × 16MM 12V–24V Latching Metal Push Button Switch with Green LED Ring Illumination
