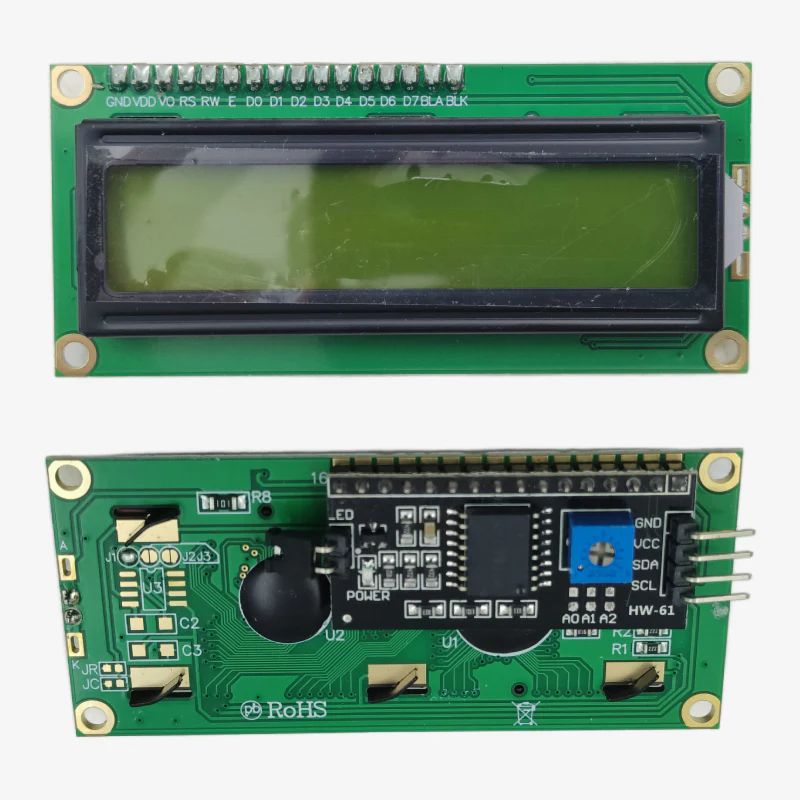

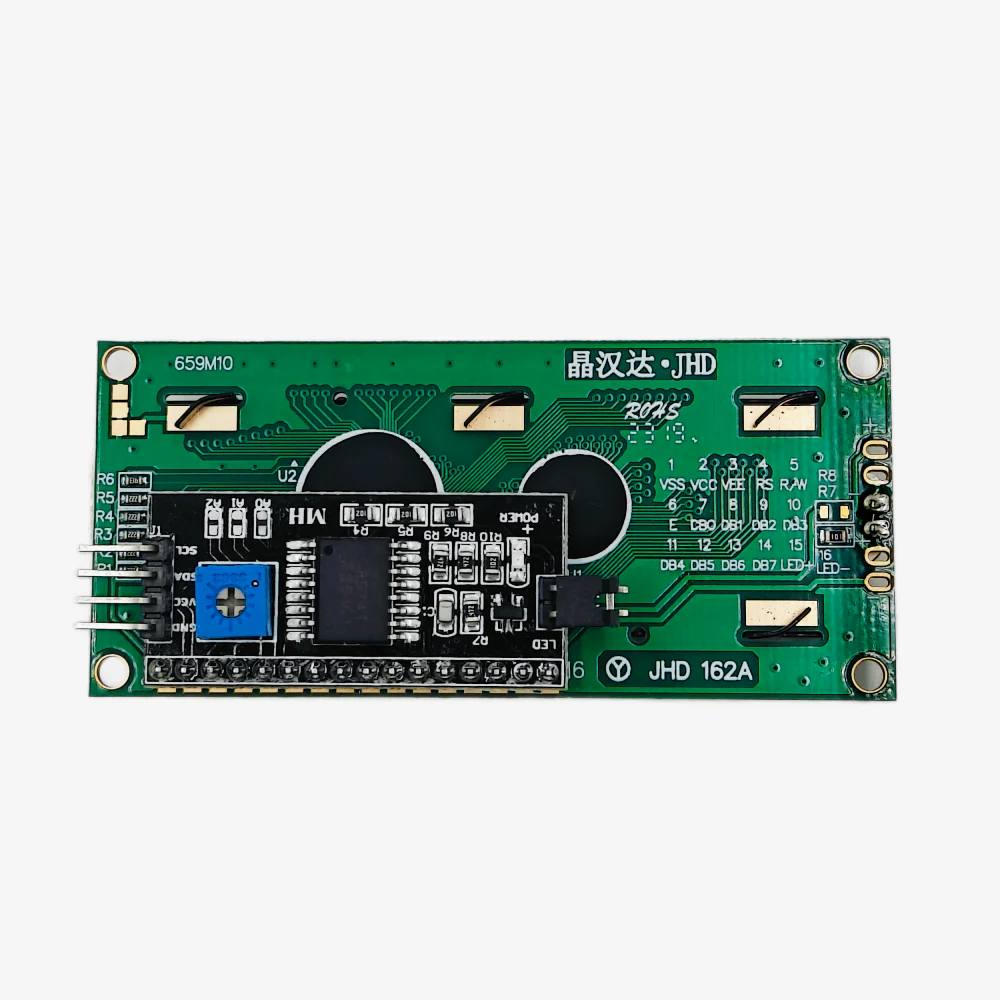

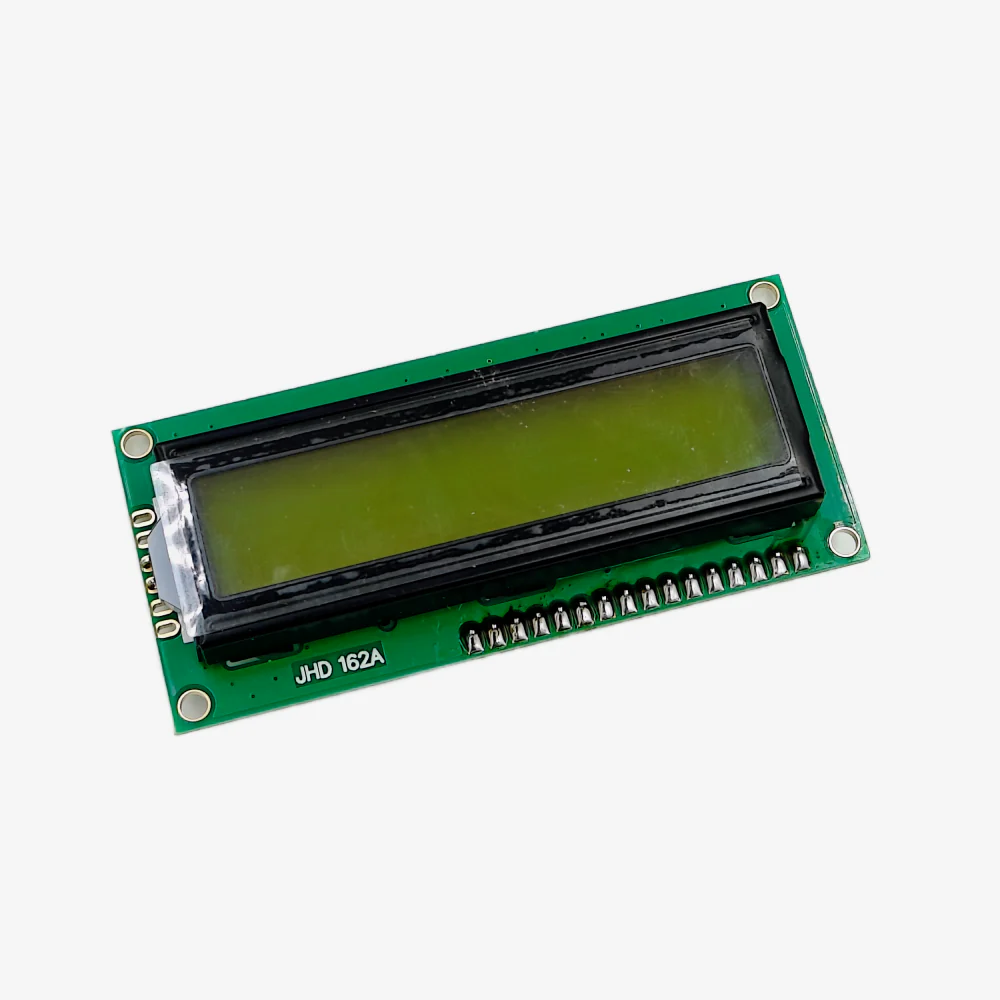

The 16x2 LCD Display with IIC/I2C interface featuring a green backlight and black characters is an efficient and user-friendly display module for embedded systems. It is widely used in electronics projects due to its compatibility with I2C communication, which minimizes the number of GPIO pins required for interfacing.

This display is ideal for various applications like robotics, IoT devices, home automation systems, and educational projects. Its green backlight ensures excellent readability, while the adjustable contrast allows users to fine-tune the display for optimal performance in different environments.

16x2 LCD Display (Green Backlight) with IIC/I2C Interface Features and Specifications:

Specifications:

• Display Type: 16x2 Alphanumeric LCD
• Interface Type: I2C/IIC (4-pin)
• Operating Voltage: 5V DC
• Backlight Color: Green with black text
• Characters: 16 characters per row, 2 rows
• I2C Address: Default 0x27 (adjustable via soldering pads)
• Contrast Adjustment: Potentiometer on the I2C module
• Dimensions: 80mm x 36mm x 12mm (approx.)

Features:

• High contrast with a green backlight for clear visibility
• I2C interface simplifies wiring, using only SDA and SCL pins
• Built-in potentiometer for easy contrast adjustment
• Low power consumption
• Compatible with Arduino, Raspberry Pi, and other microcontroller platforms
• Compact size for seamless integration into various projects

Applications:

• Home Automation Systems
• IoT Devices
• Robotics Projects
• Data Logging Systems
• Educational Prototypes and Demonstrations
• Embedded System Menus

Package Contains:

• 1x 16x2 LCD Display (Green Backlight) with IIC/I2C Interface
