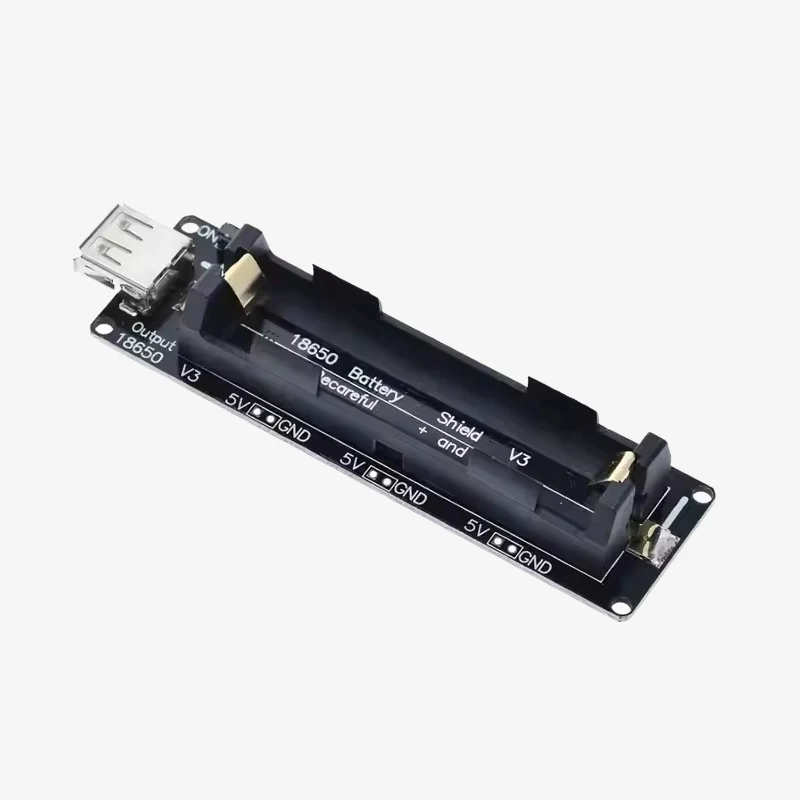

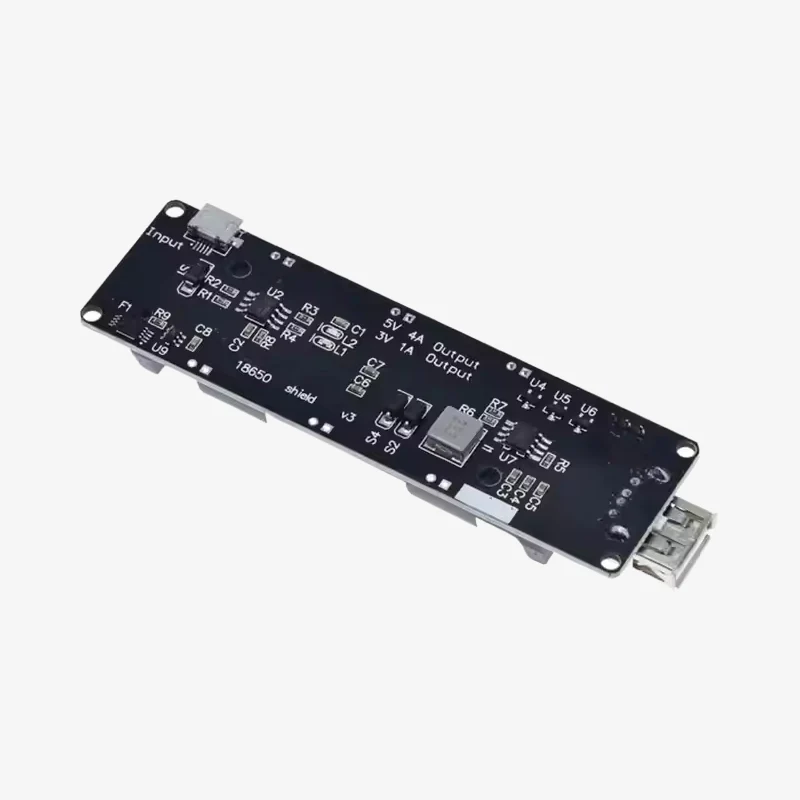

The 1 x 18650 Battery Shield Module is a versatile and compact power solution for your development boards, including Arduino, ESP8266, and Raspberry Pi. This module allows you to power your projects with a rechargeable 18650 lithium-ion battery, providing a stable 5V output for continuous operation. It features built-in charging and protection circuits, ensuring safe battery management with overcharge, over-discharge, and short-circuit protection. With easy integration and compact design, it’s an ideal choice for portable applications, robotics, IoT projects, and other battery-powered systems.

Also check: 2 x 18650 Battery Shield V8 Module

Features:

• Wide Compatibility: Designed for use with Arduino, ESP8266, and Raspberry Pi.
• Stable 5V Output: Provides a reliable 5V output to power your projects.
• Built-in Charging Circuit: Allows safe charging of the 18650 battery.
• Overcharge & Over-discharge Protection: Protects the battery and connected devices from damage.
• Short-Circuit Protection: Ensures safe operation by preventing damage from circuit faults.
• Compact and Durable: Small form factor for easy integration into your projects.

Specifications:

• Input Voltage: 3.7V (from 18650 Li-ion battery)
• Output Voltage: 5V
• Maximum Output Current: 6A
• Battery Type: 18650 Lithium-Ion Battery
• Charging Input: Micro USB
• Protection Circuit: Overcharge, over-discharge, and short-circuit protection

Package Includes:

• 1 x 18650 Battery Shield Module for Arduino, ESP8266, and Raspberry Pi
