The MY1016Z2 24V 250W 2A Electric Bike Motor Kit is a complete drive solution designed for DIY electric mobility and robotics applications. Built around a high-torque geared DC motor, it delivers smooth acceleration, reliable performance, and efficient power transmission for custom e-bikes, scooters, ATVs, and experimental robotic platforms. The kit includes all essential components such as controller, throttle, drivetrain parts, and charger, allowing easy installation and stable operation for both beginners and advanced builders.

Features:

1. Powerful 250W geared DC motor for strong low-speed torque
2. Stable 24V operating system for efficient performance
3. High torque output for load handling and climbing ability
4. Intelligent motor controller with voltage and current protection
5. Compatible with #410 bicycle chain via 9-tooth sprocket
6. Smooth throttle-based speed control
7. Brake input compatibility for safe motor cutoff
8. Complete installation accessories included
9. Ideal for DIY e-bikes, scooters, robotics, and mobility projects

Specifications:

Motor:

• Rated Voltage: 24V DC
• Output Power: 250W
• Reduction RPM: 300 RPM
• No-load Current: 2.2A
• Full Load Current: 13.4A
• Rated Torque: 8 N·m (80 kg-cm)
• Stall Torque: 40 N·m (400 kg-cm)
• Gear Type: Geared motor
• Sprocket: 9T (for #410 chain)

Controller:

• Rated Voltage: 24V DC
• Power Output: 250W
• Undervoltage Protection: 20.5V
• Current Limiting Protection: 21.5A
• Throttle Voltage Input: 1.1V – 4.3V
• Brake Compatibility: High / Low Level
• Phase Angle: 60° / 120°

Battery Compatibility: Recommended Battery: 24V 7.8Ah Li-ion pack

Operating Temperature: Ambient Range: -20°C to +45°C

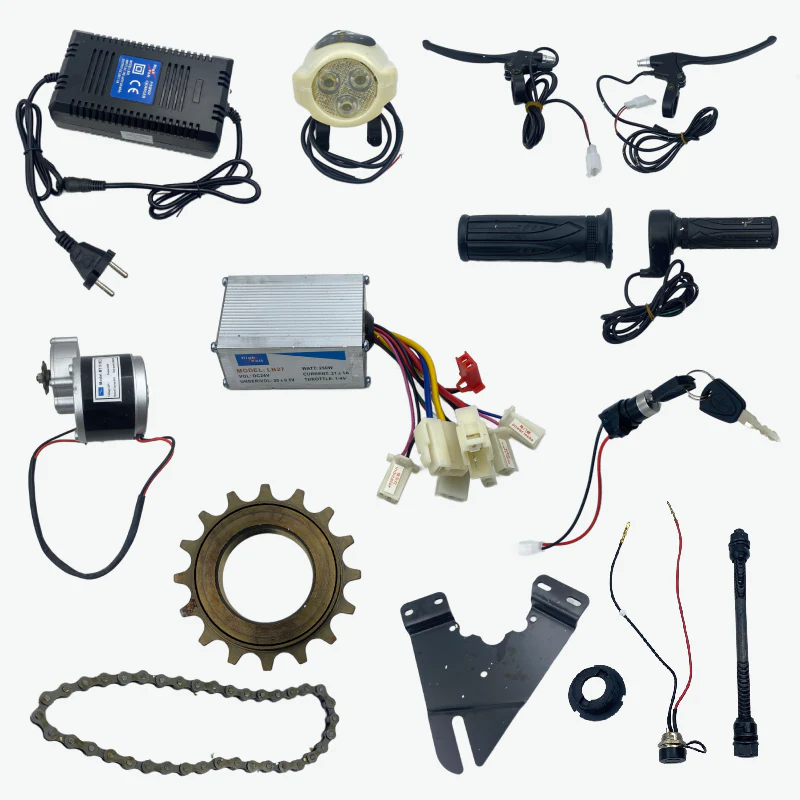

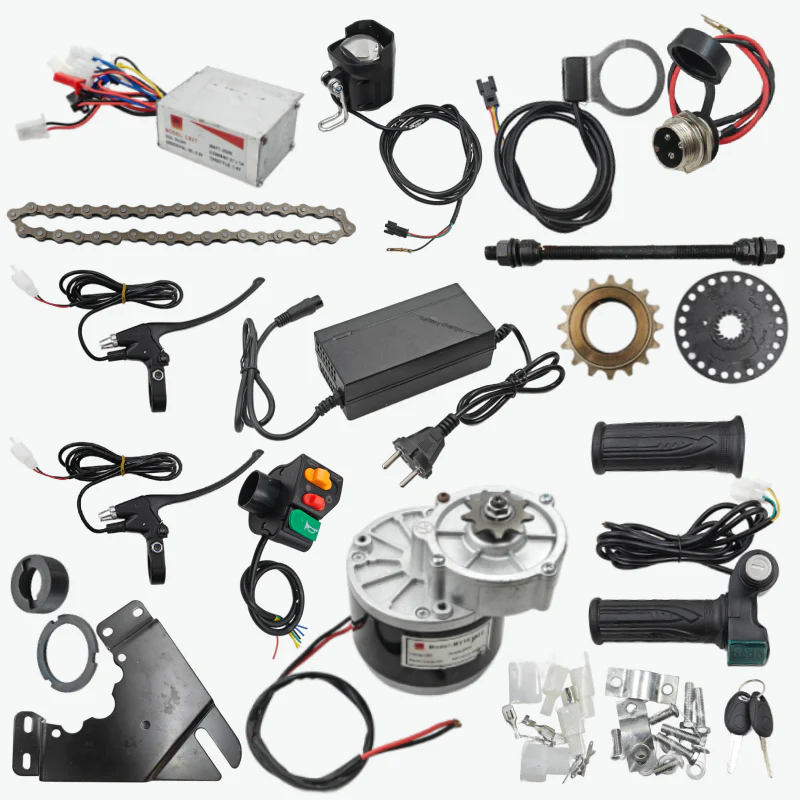

Package Includes:

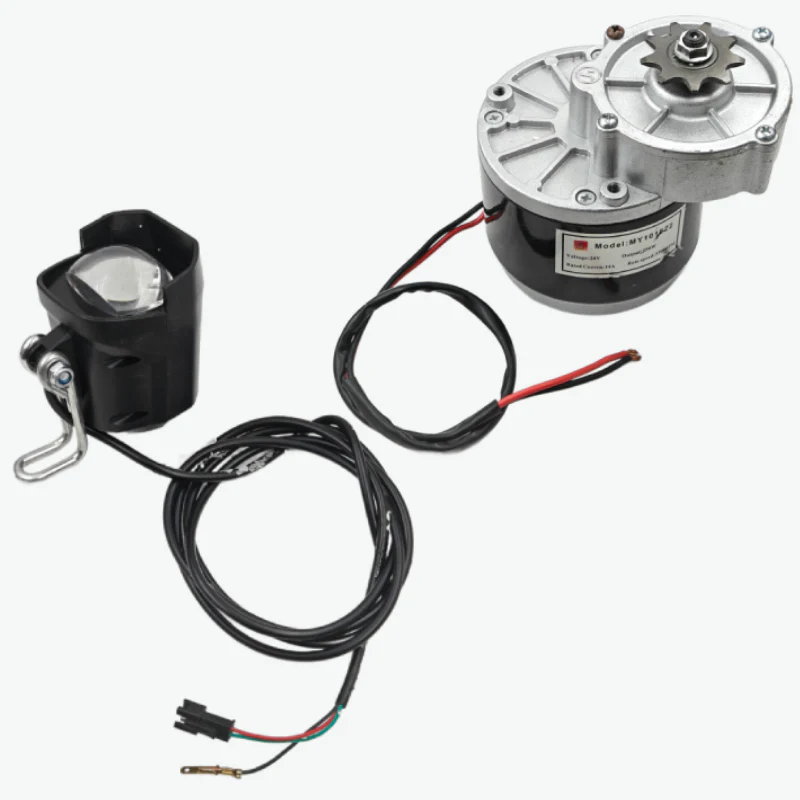

1 × 24V 250W 2A DC Geared Motor (MY1016Z2)
1 × Motor Controller

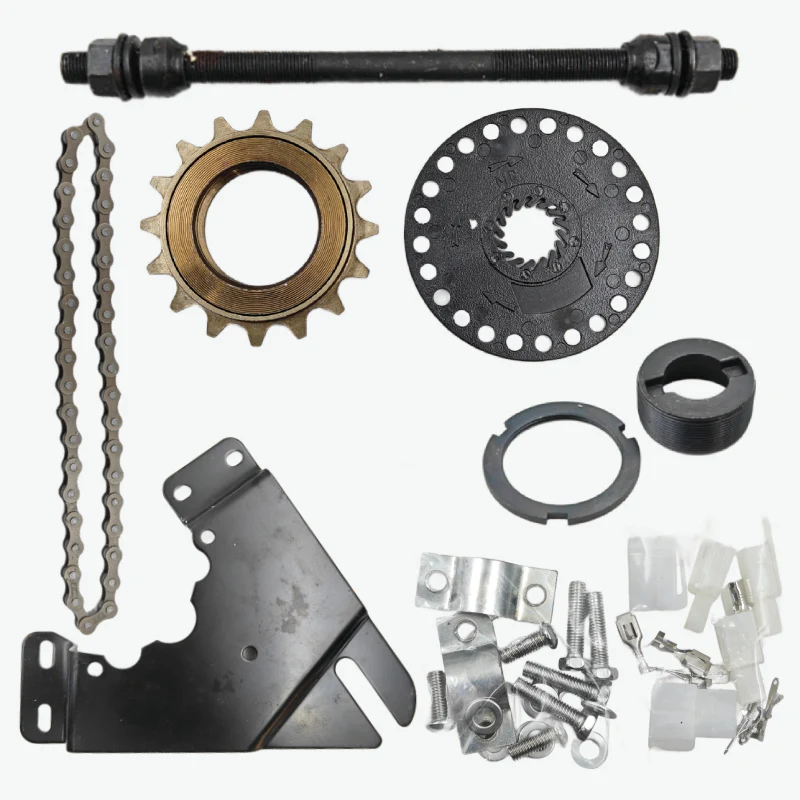

1 × Bicycle Chain
1 × Freewheel
1 × Mounting Plate with Bolts

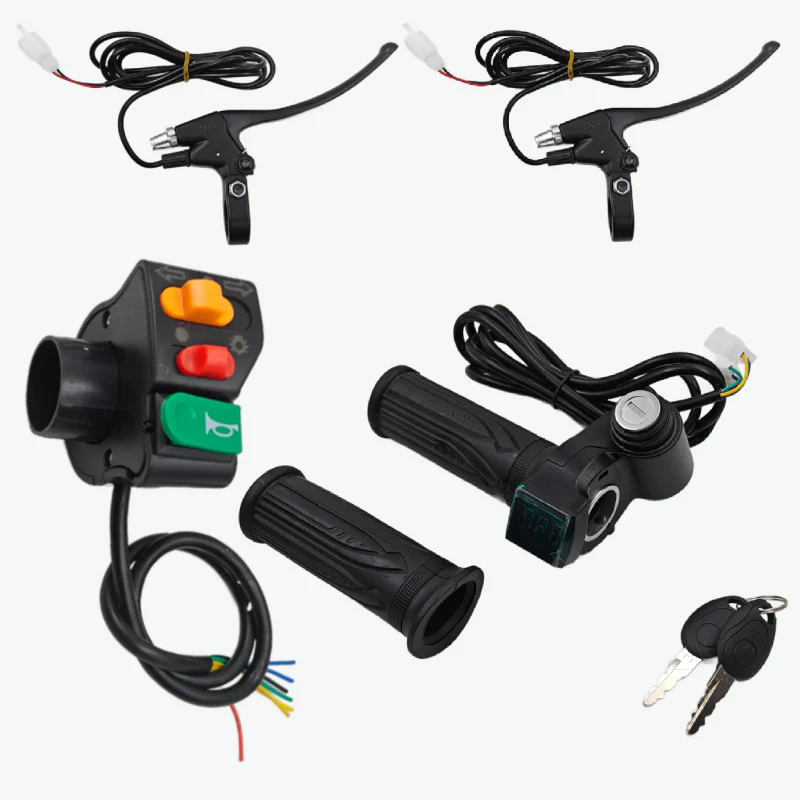

1 × Throttle Handle & Brake Lever
1 × Headlight
1 × Key Switch
1 × 18cm Axis
1 × Battery Charger
