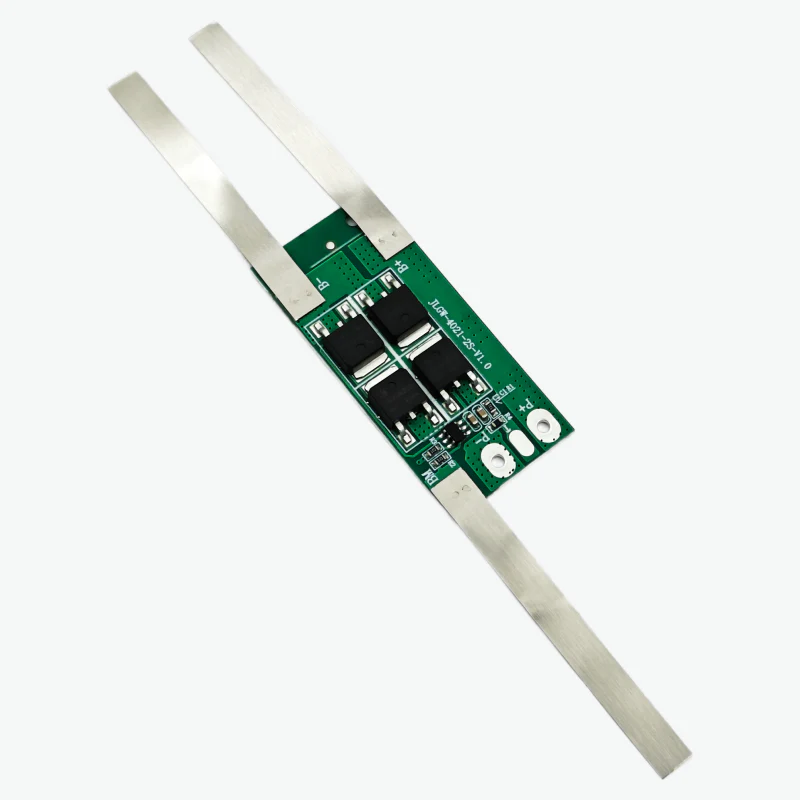

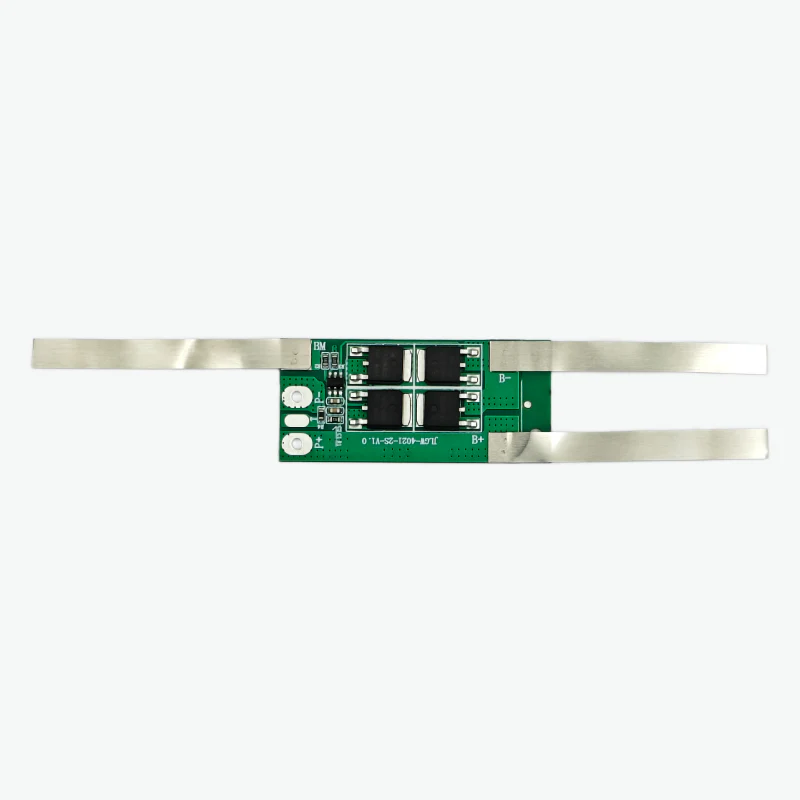

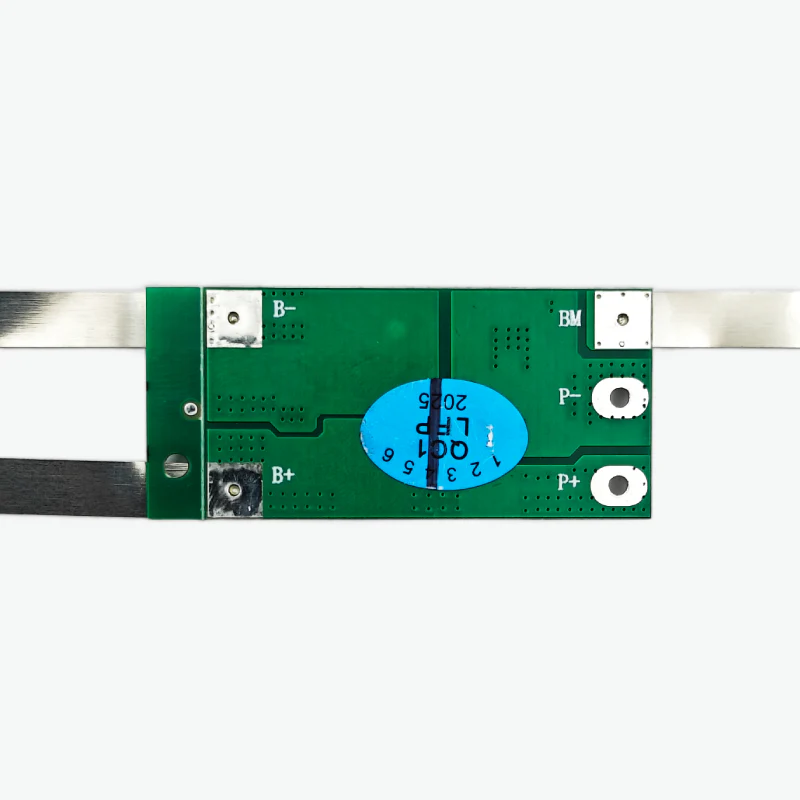

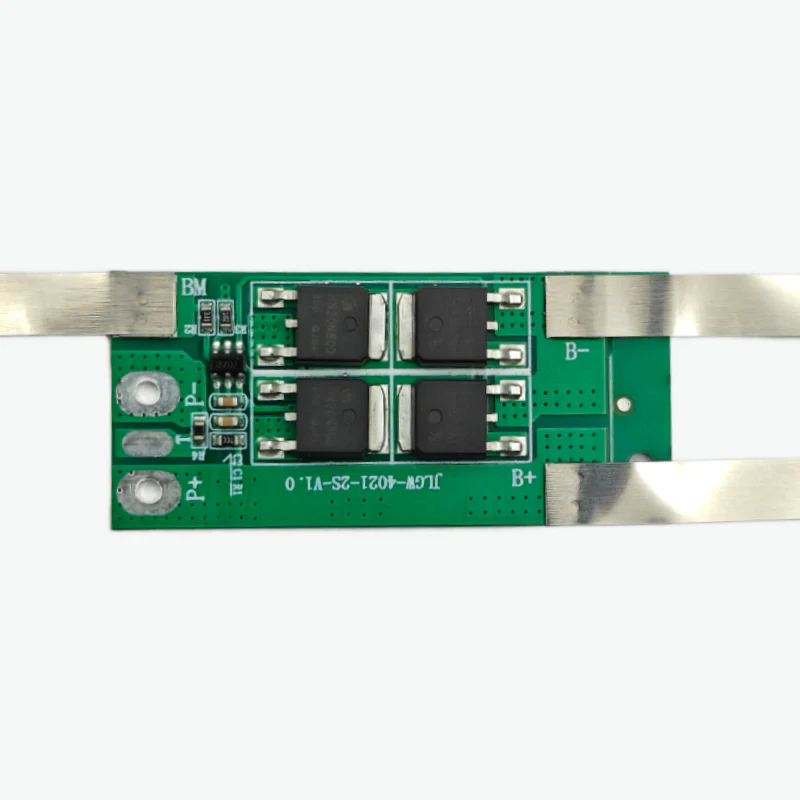

The 2S 10A Lithium Iron Phosphate LFP Battery Protection BMS Module is designed for 3.2V LiFePO₄ cells connected in a 2-series configuration (6.4V nominal). It provides essential protections such as overcharge, over-discharge, overcurrent, and short circuit, ensuring long life and safety for LiFePO₄ battery packs. With a continuous 10A discharge rating and included nickel strips, this module is ideal for compact DIY power banks, solar storage, e-bikes, and robotics projects using LiFePO₄ chemistry.

Features of 2S 10A LiFePO₄ Battery Protection BMS Module:

1. Designed for 2S (6.4V nominal) LiFePO₄ battery packs
2. Continuous discharge current of up to 10A
3. Overcharge and over-discharge protection tailored for LiFePO₄ chemistry
4. Short circuit and overcurrent protection
5. Nickel strips provided for easy battery assembly
6. Lightweight and compact for embedded power systems

Specifications of 2S 10A LiFePO₄ Battery Protection BMS Module:

• Battery Type: LiFePO₄ (Lithium Iron Phosphate)
• Configuration: 2S (6.4V nominal)
• Continuous Discharge Current: 10A
• Charging Voltage: 7.3V
• Overcharge Detection Voltage: ~3.65V ± 0.05V
• Over-discharge Detection Voltage: ~2.0V ± 0.1V
• Short Circuit Protection: Yes
• Operating Temperature: -20°C to +60°C

Package Includes:

1 × 2S 10A LiFePO₄ BMS Module
