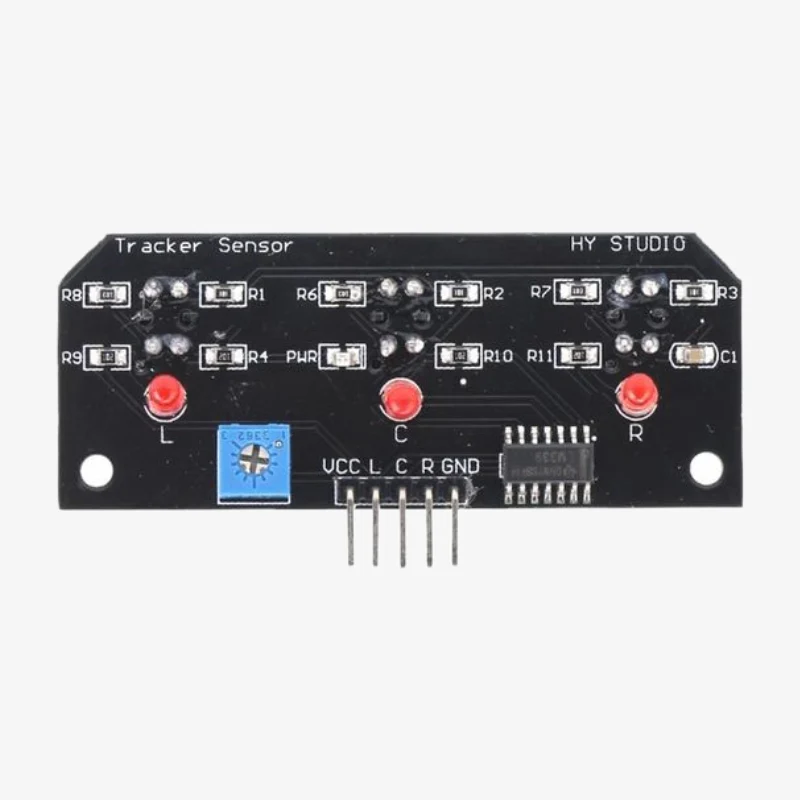

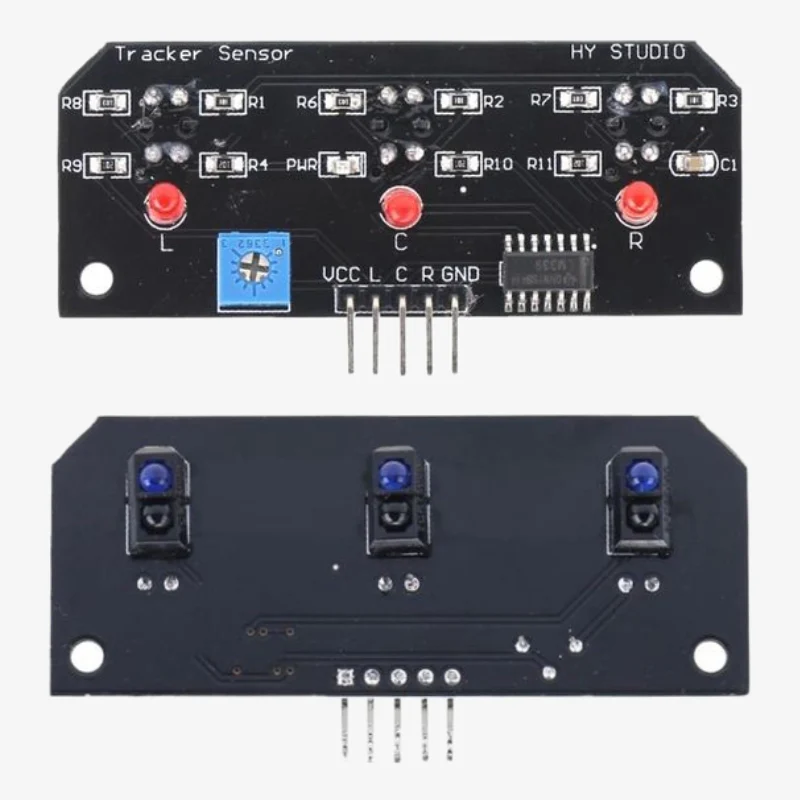

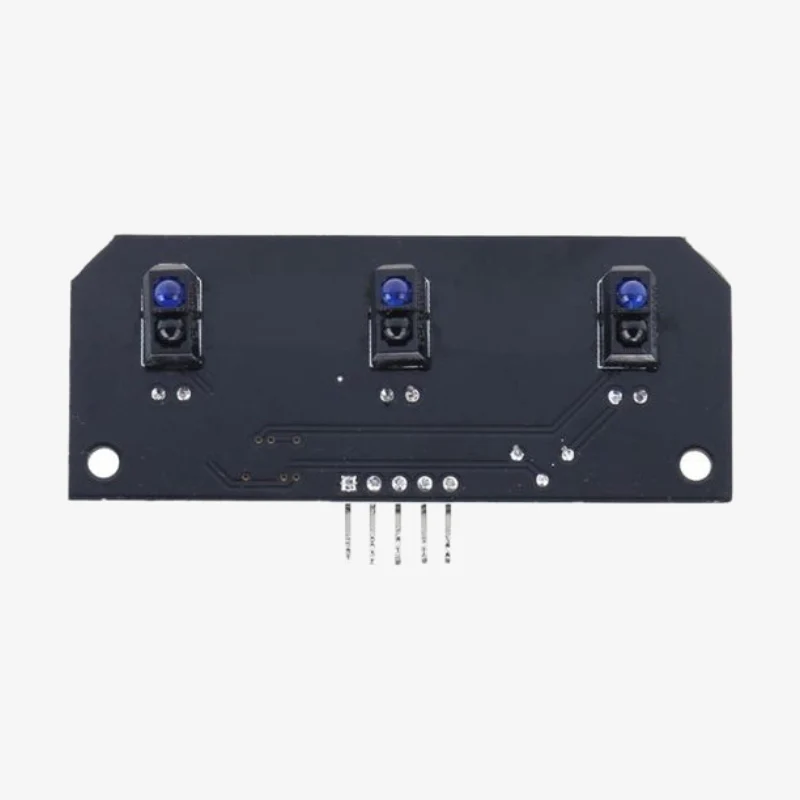

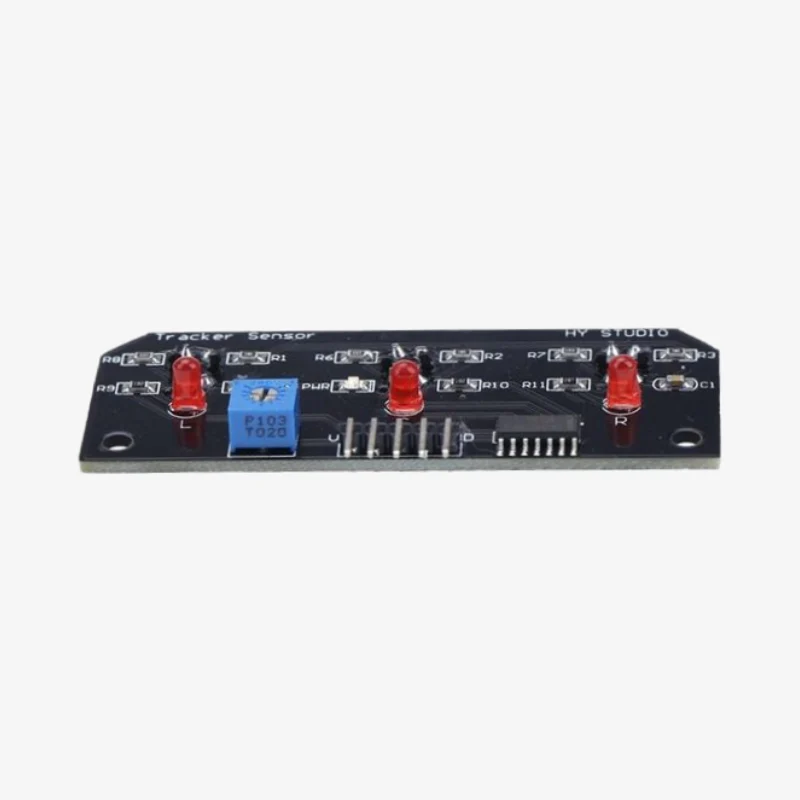

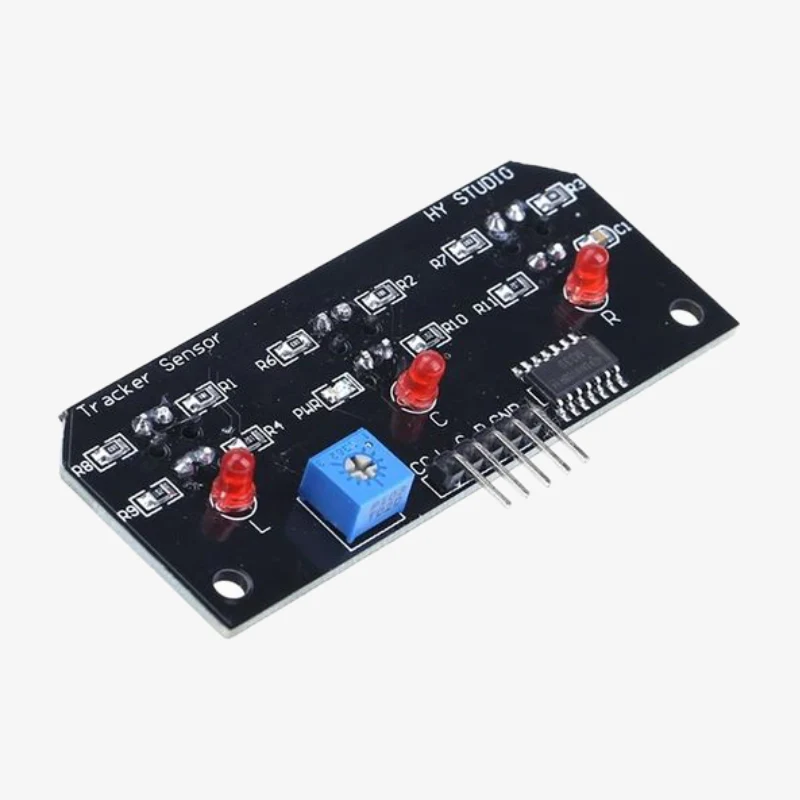

The 3 Channel Path Tracing Module is a reflective infrared sensor module designed for line following, path detection, and edge sensing applications. Equipped with three independent IR emitter–receiver pairs, it can accurately detect black/white contrast and guide robots or automated vehicles along a predefined path. The module provides stable digital outputs and is ideal for robotics competitions, DIY robots, educational STEM projects, and automation systems requiring multi-point line tracking.

Features:

1. 3 independent IR sensing channels for accurate path detection
2. Stable digital output signals for easy microcontroller interfacing
3. High sensitivity to black/white surface contrast
4. Adjustable detection threshold (potentiometer, on compatible versions)
5. Suitable for line-following robots and automated guided systems
6. Compact and lightweight PCB design
7. Compatible with Arduino, ESP32, Raspberry Pi, and robotic controllers

Specifications:

• Sensor Type: IR reflective sensors (3-channel)
• Output Type: Digital (HIGH/LOW for each channel)
• Operating Voltage: 3.3V – 5V
• Detection Range: Typically 0.5 – 3 cm (surface dependent)
• Sensitivity: Adjustable (versions with onboard potentiometers)
• Indicators: Onboard signal LEDs for each channel
• Interface: 3 digital outputs + VCC + GND
• Dimensions: Compact module size
• Applications: Line-following robots, path tracing, edge detection, AGV systems, DIY robotics

Package Includes:

1 × 3-Channel IR Line Tracking & Path Detection Sensor Module
