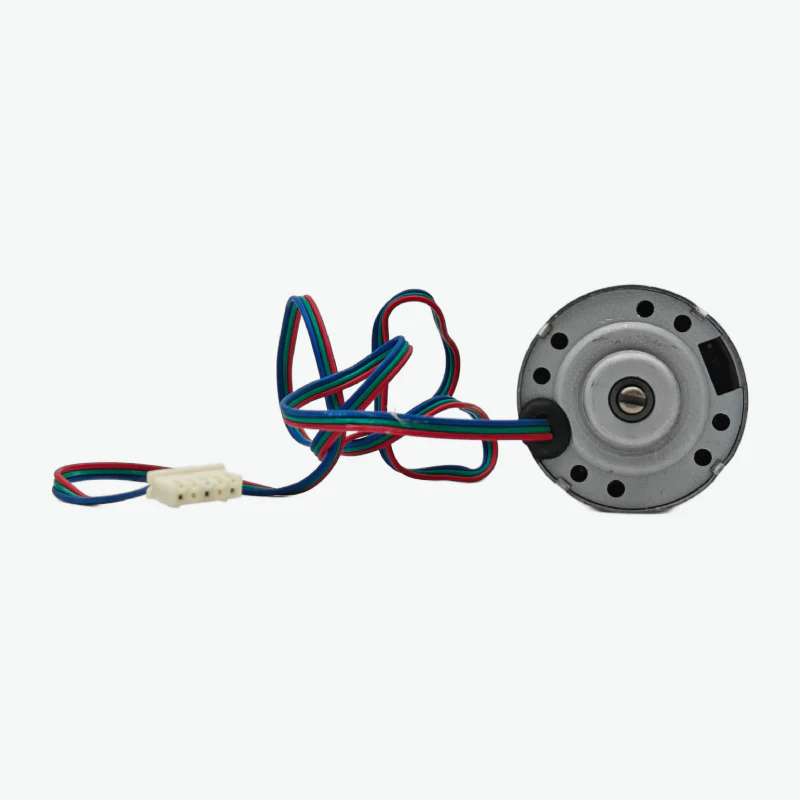

This high-speed brushless DC motor is a 220V 3-phase dynamo generator suitable for high-speed applications requiring stable power output and efficiency. Designed with double ball bearings, it ensures smooth operation and a longer lifespan.

DC 220V High-Speed Brushless Motor 3 Phase Dynamo/Generator Features:

• Three-phase brushless motor for efficient energy conversion.
• Double ball bearing for increased durability.
• Three-wire connection for easy setup.
• Not compatible with 220V household power – must be used with a 220V brushless drive.
• Compact and lightweight design for easy installation.

DC 220V High-Speed Brushless Motor 3 Phase Dynamo/Generator Specifications:

Operating Voltage	DC 220V
Max Operating Current	0.28A
Speed	1500 - 10,000 RPM
Shaft Diameter	5mm
Shaft Length	24mm
Motor Shoulder Diameter	17.5mm
Motor Shoulder Height	5mm
Motor Diameter	42mm
Total Length (with Shaft)	100mm
Power Consumption	45W



Package Includes:

1 x DC 220V High-Speed Brushless Motor 3 Phase Dynamo/Generator with Ball Bearing
