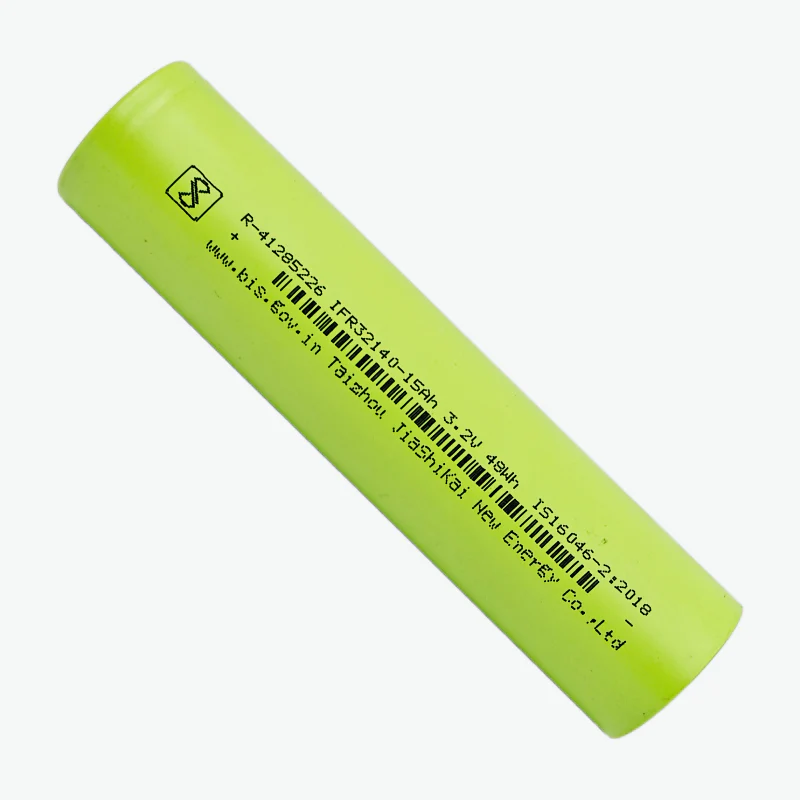

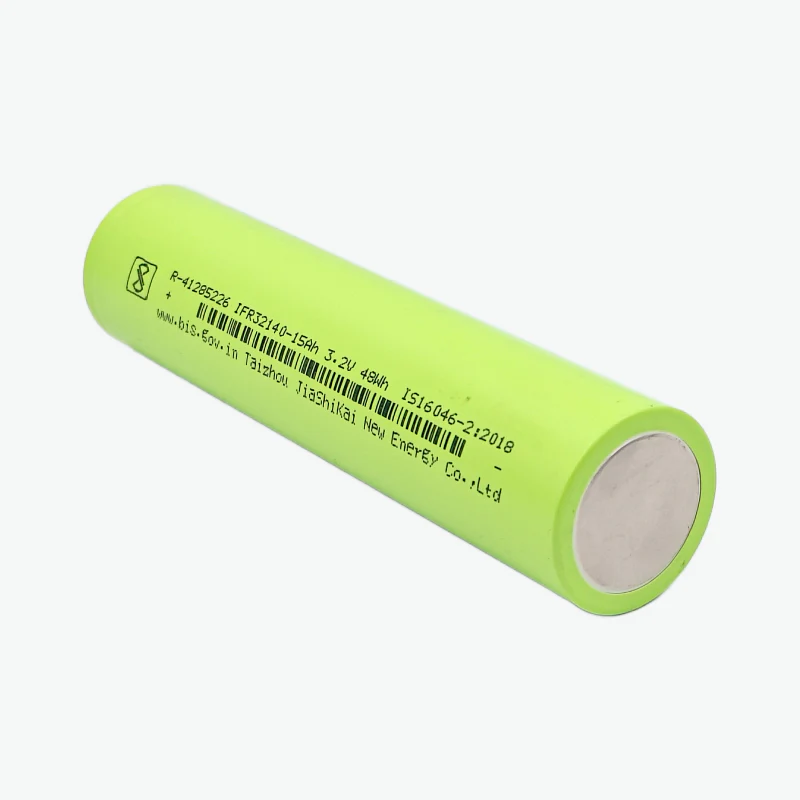

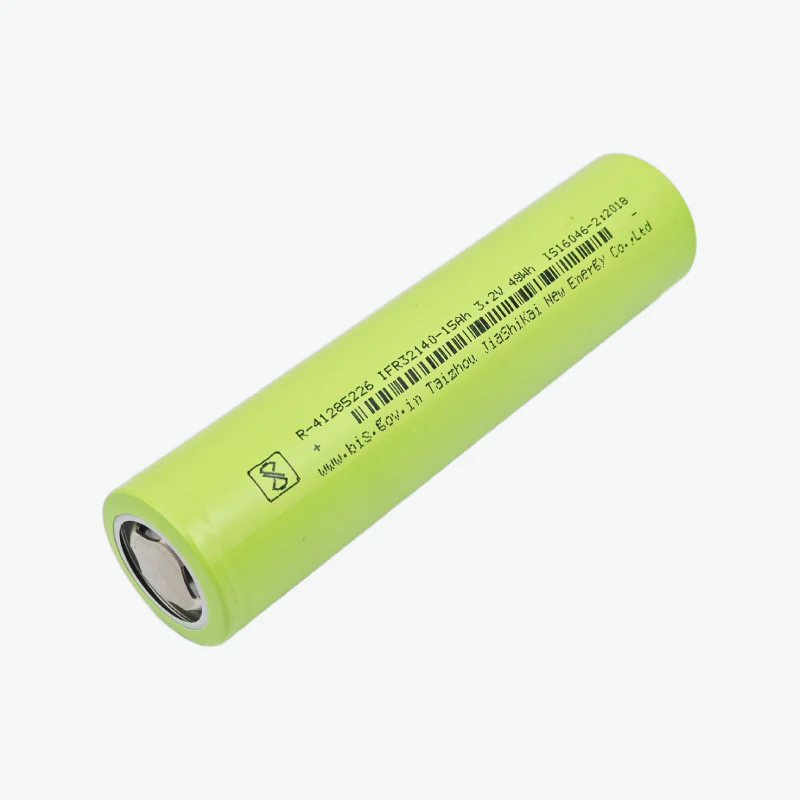

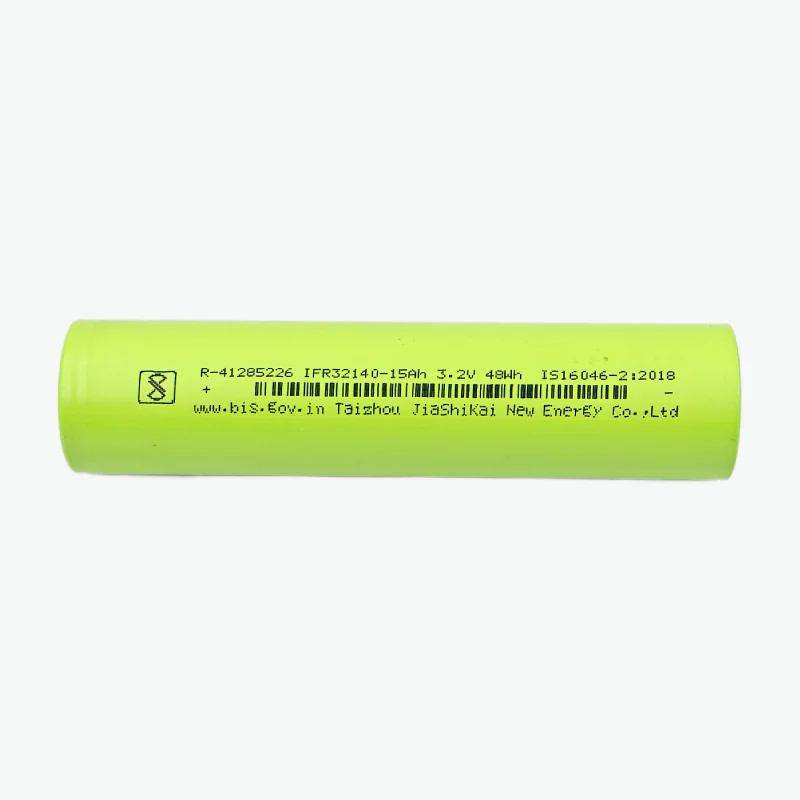

The  IFR 32140 is a high-performance rechargeable lithium iron phosphate (LiFePO4) battery designed for applications such as electric vehicles, renewable energy systems, and industrial equipment. With a capacity of 15000mAh and a maximum continuous discharge rate of 2C (30 amps).

LiFePO4 batteries are renowned for their high energy density, long cycle life, and stable performance across a broad temperature range. They offer a safer alternative to other lithium-ion batteries, with a lower risk of thermal runaway and overheating.

Brand: Taizhou Jiashikai

  Datasheet / Specification

IFR 15Ah LiFePO4 Battery Cell Features:

• High Capacity: Provides a substantial 15000mAh for extended usage.
• Fast Charging
• Long Cycle Life
• Lightweight: Easier to handle and integrate into various systems.

• High Discharge Rate: Capable of delivering a continuous current of up to 30 amps.
• Low Self-Discharge Rate: Retains charge well during storage periods.

Specifications:

Nominal Capacity (Ah)	15
Nominal Voltage (V)	3.2
Cathode Material	LFP
Internal Resistance (mΩ)	≤3
Standard Discharging Current	0.5C
Maximum Continuous Current (Discharging)	2C (30A)
Dimension	32mm x 140mm (Diameter x Length)
Cut-off Voltage (Discharging)	2V
Standard Charging Current	0.5C
Maximum Continuous Current (Charging)	1C
Cut-off Voltage (Charging)	3.6V
Cycle Life	≥2500 cycles
Operating Temperature (Charging)	-10°C to 60°C
Operating Temperature (Discharging)	-30°C to 60°C



Note: The actual product image may differ from the image shown here. Before placing a bulk order, please verify the specifications with customer care.

Package Includes:

1 x  32140 FS 15Ah LiFePO4 Rechargeable Battery 2C - Grade A
