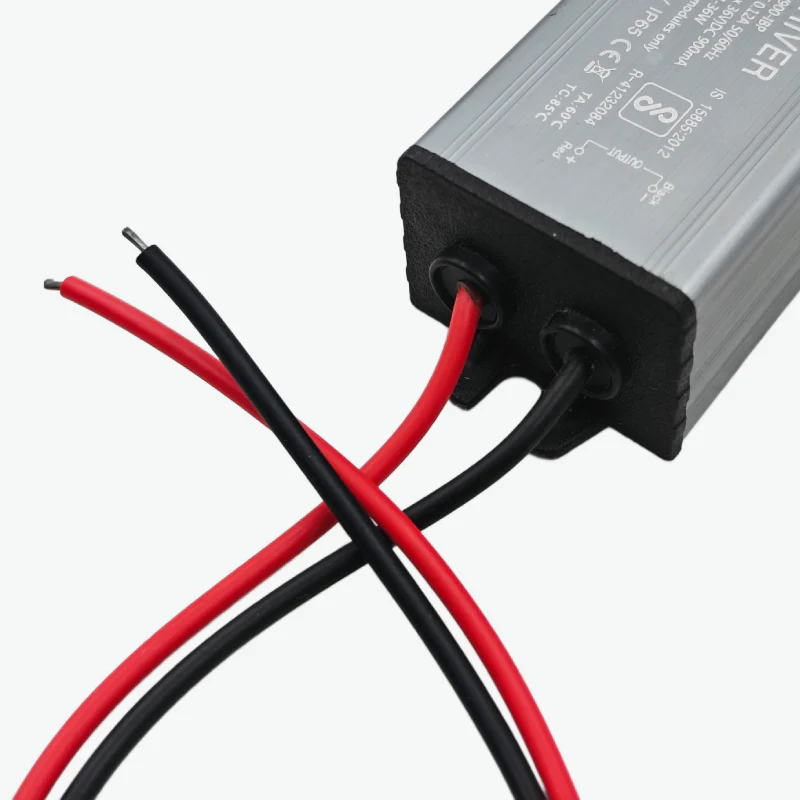

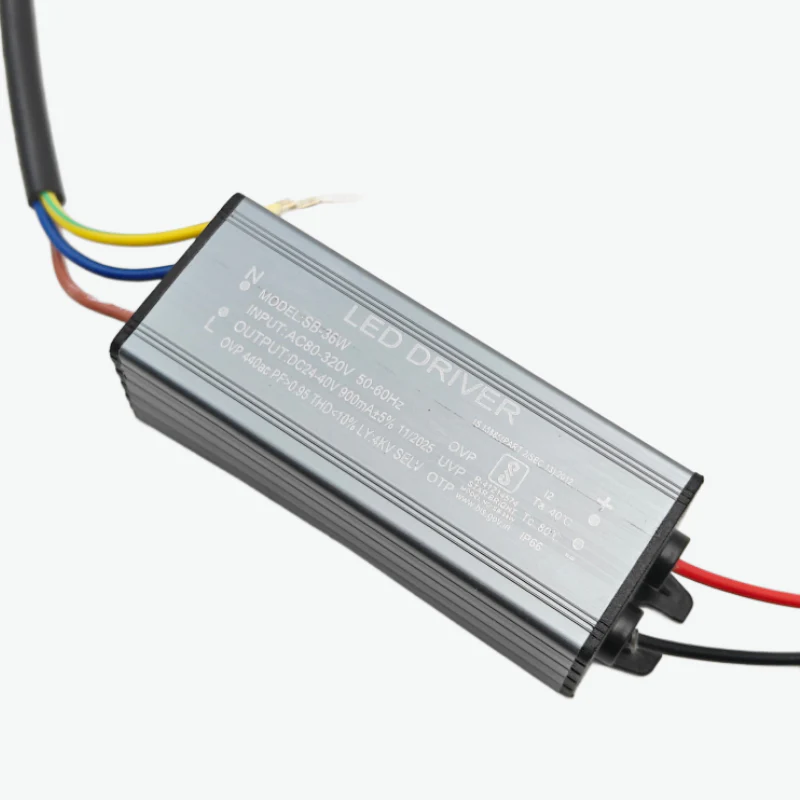

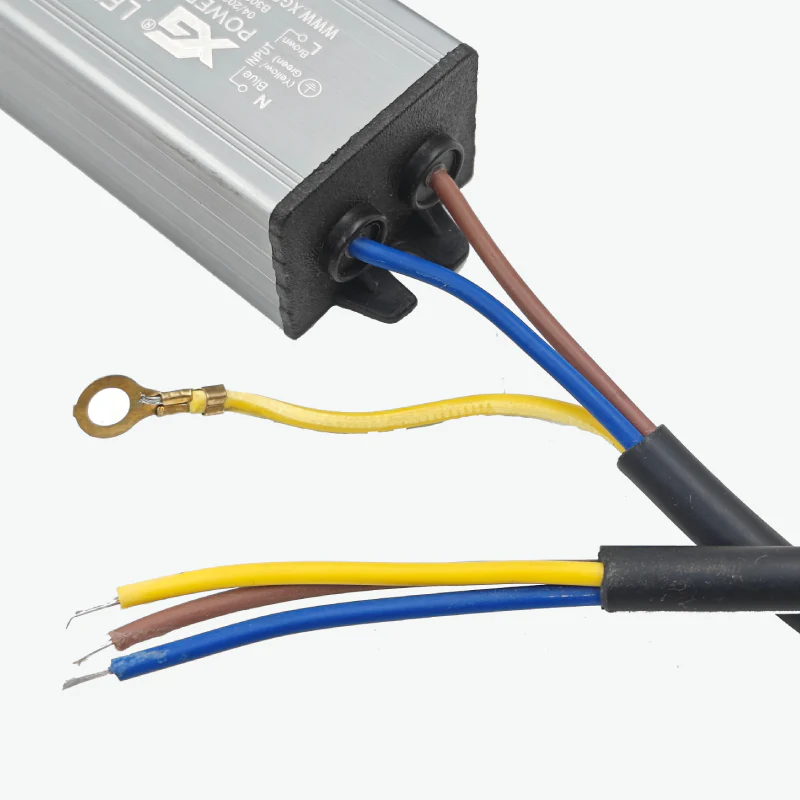

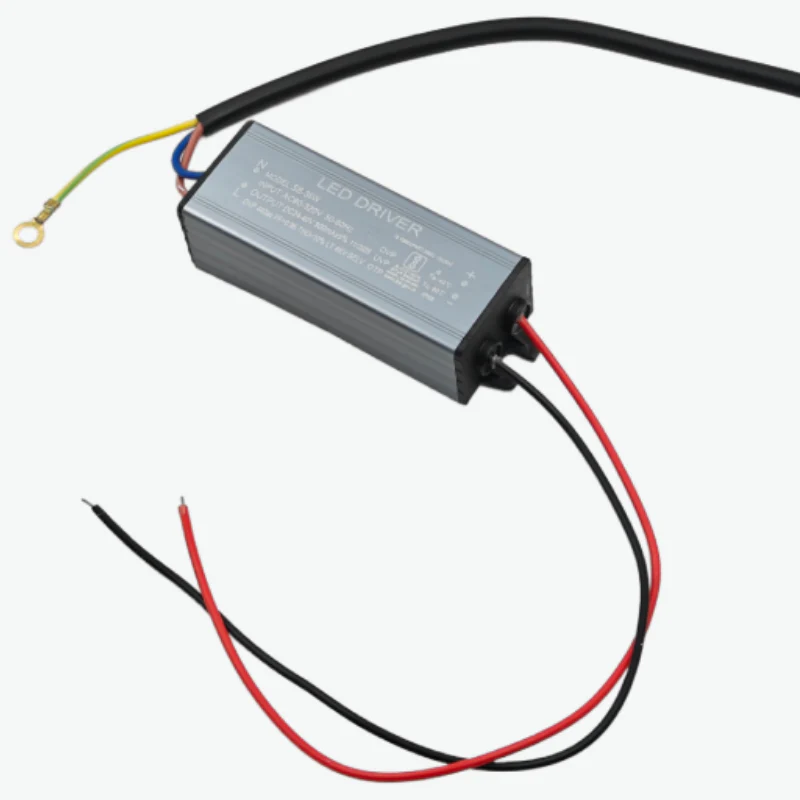

The 36W LED Driver Module is a high-efficiency constant current power supply designed for reliable operation of LED lighting systems. With a wide input voltage range of 85–265V AC, it delivers a regulated output of 27–45V DC at 900mA, making it suitable for powering 24–36W LED modules. Built with high power factor correction (PF ≥ 0.9) and efficiency above 87%, this driver ensures stable performance while reducing energy losses. The module is enclosed in a robust aluminum casing with IP65 protection, making it safe for both indoor and outdoor applications.

Features of 36W LED Driver Module:

1. Constant current output for stable LED performance
2. Wide input voltage range: 85–265V AC, 50/60Hz
3. Output voltage range: 27–45V DC, max 36V
4. Output current: 900mA ±5%
5. High efficiency (≥ 87%) and power factor (PF ≥ 0.9)
6. Overload, overvoltage, and short-circuit protection
7. Durable aluminum housing with IP65 waterproof rating

Specifications of 36W LED Driver Module:

• Model: XH-36W900-18P
• Input Voltage: 85–265V AC, 0.12A, 50/60Hz
• Output Voltage: 27–45V DC (max 36V)
• Output Current: 900mA ±5%
• Power Rating: 24–36W
• Power Factor: ≥ 0.9
• Efficiency: ≥ 87%
• Protection Rating: IP65
• Operating Temperature: –20°C to +60°C
• Case Temperature: Up to +85°C
• Dimensions: Approx. 75 × 30 × 20 mm
• Weight: Approx. 120 g

Package Includes:

1 × 36W LED Driver Module with 900mA Output Current and 27–45V DC Voltage
