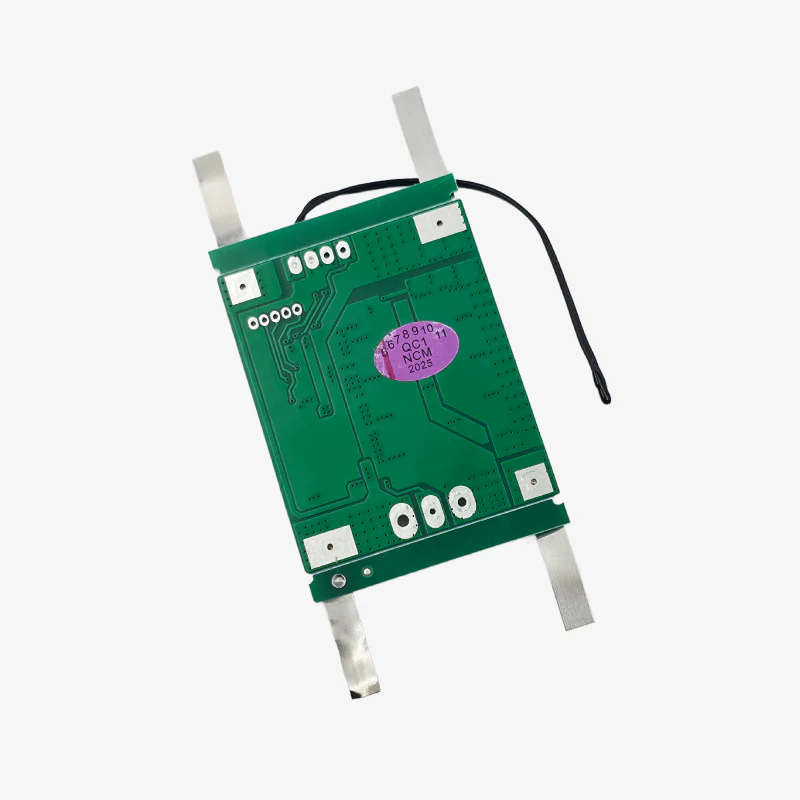

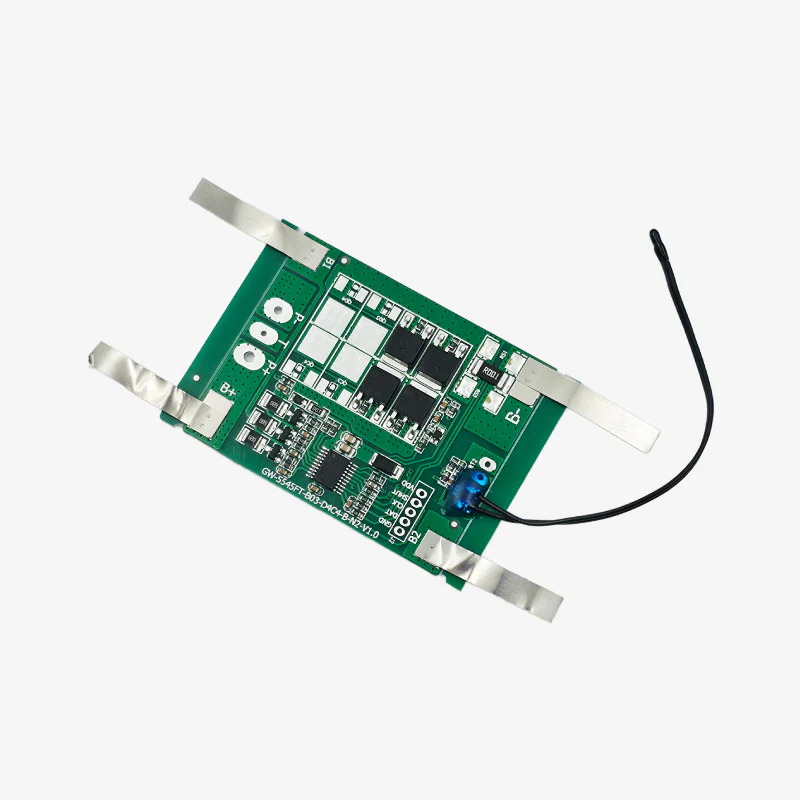

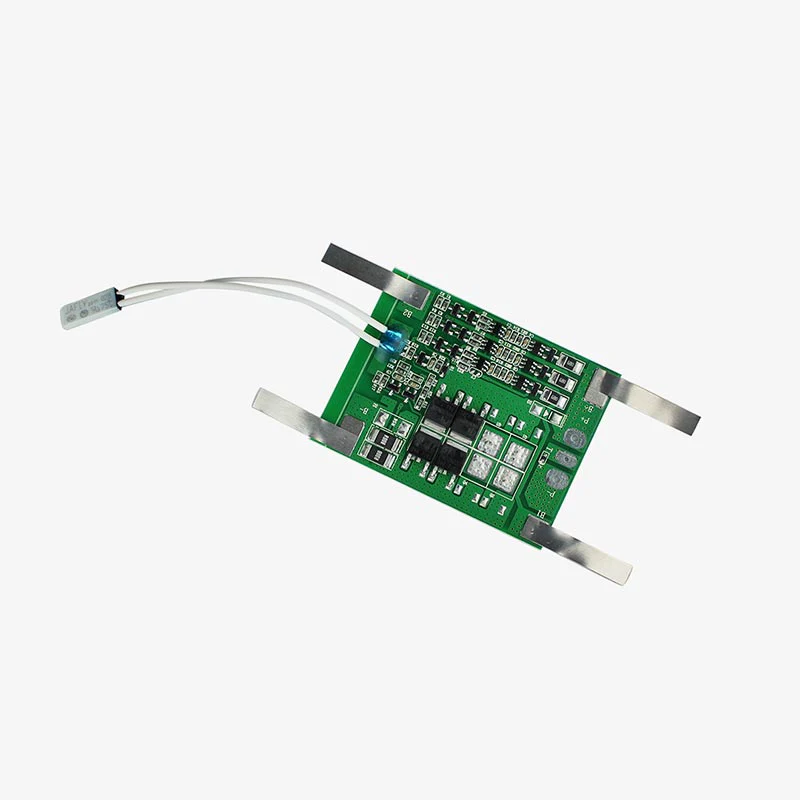

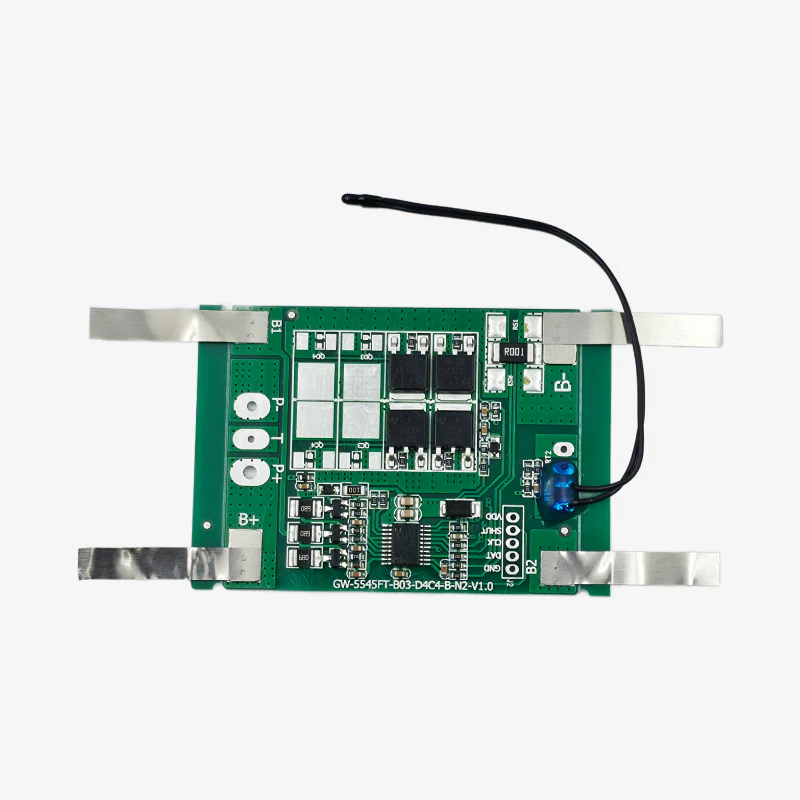

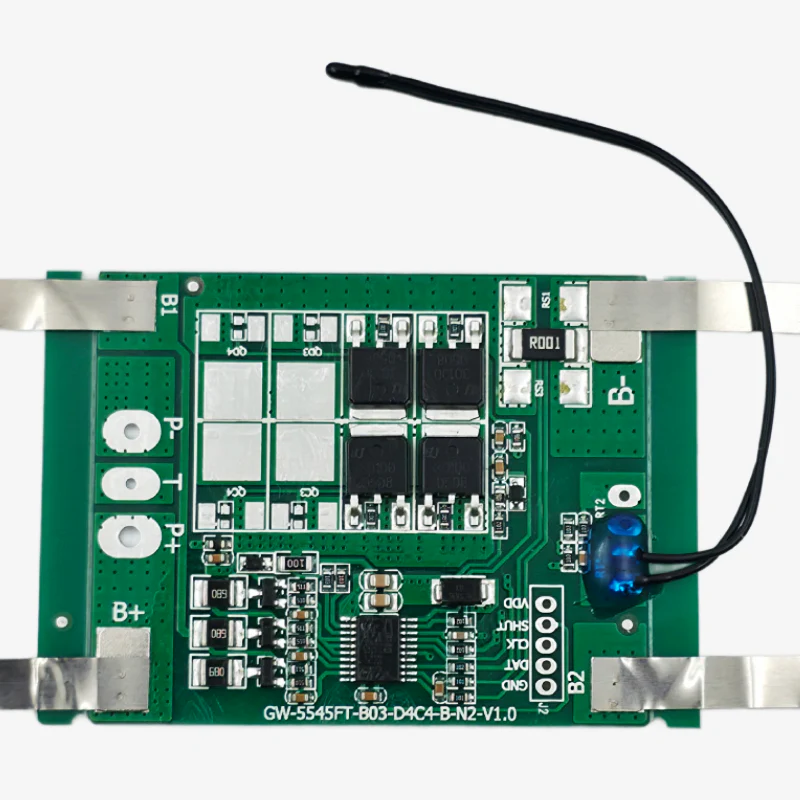

The 3S 10A Battery Management System (BMS) Module is designed for 3.7V Lithium NMC cells, providing efficient protection and management for battery packs. With built-in nickel strips, it simplifies assembly while ensuring safe and reliable operation.

Features

• 3-Series Configuration: Supports 3-cell (3S) battery packs.
• Overcharge Protection: Prevents cells from exceeding the maximum voltage limit.
• Overdischarge Protection: Ensures cells do not drop below the safe voltage range.
• Overcurrent Protection: Safeguards the battery pack from high current surges.
• Short-Circuit Protection: Prevents damage from accidental short circuits.
• Balance Charging: Ensures even charging across all cells for extended lifespan.
• Nickel Strips Included: Simplifies the connection and assembly process.

Specifications

• Maximum Continuous Discharge Current: 10A
• Input Voltage: 12.6V (for 3S packs)
• Cell Type: 3.7V Lithium NMC cells
• Protection Functions: Overcharge, overdischarge, overcurrent, and short-circuit protection
• Dimensions: Compact and lightweight design

Package Contents:

1 x 3S 10A Lithium Battery Protection BMS Module with Nickel Strip for 3.7V NMC cells
