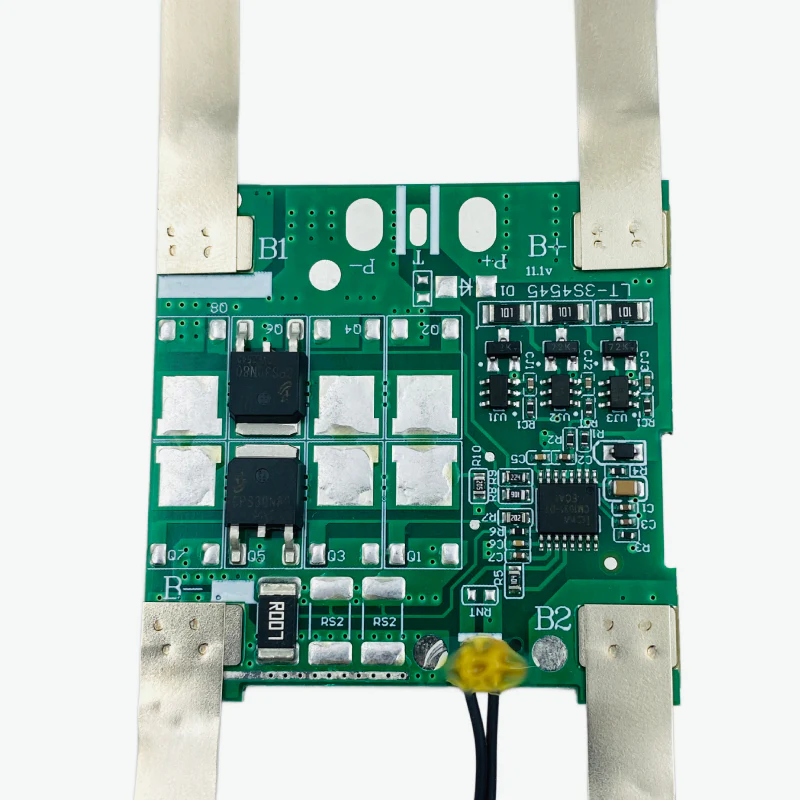

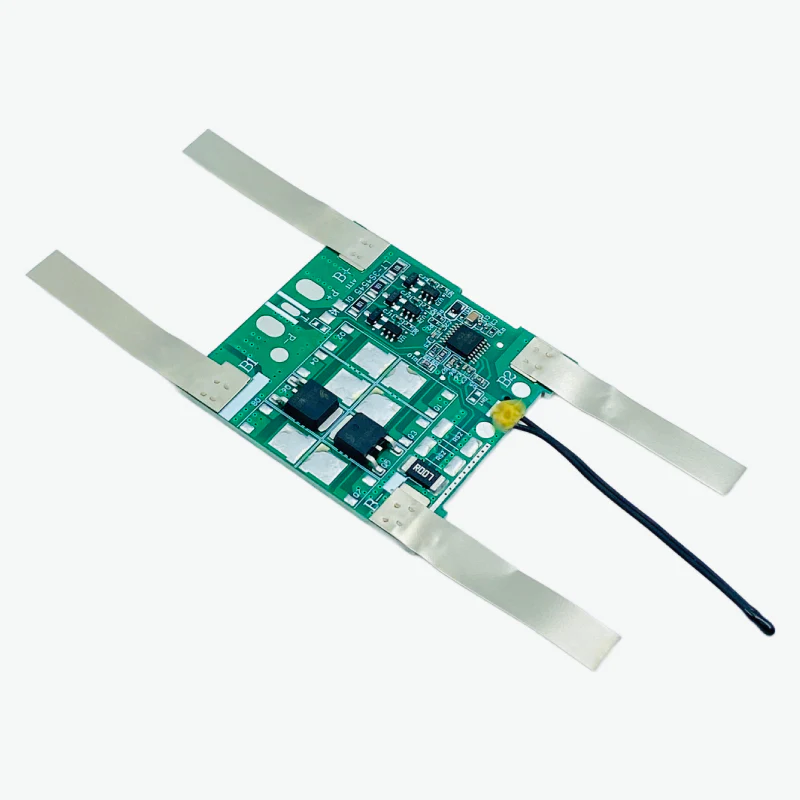

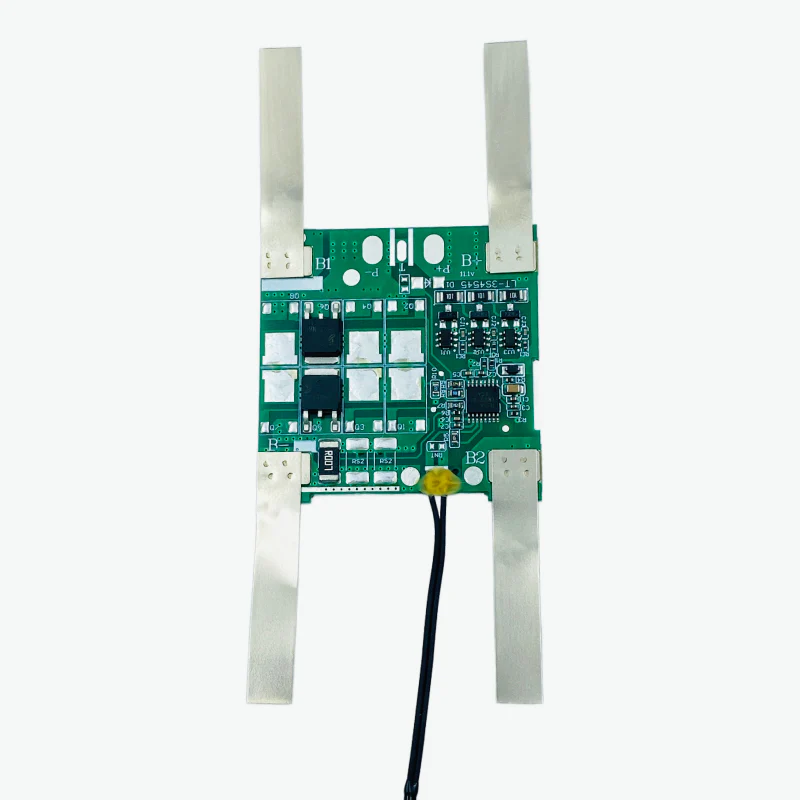

3S 6A Lithium Battery Protection BMS Module with Nickel Strip for 3.7V NMC Cells is designed to protect and manage 3S lithium-ion battery packs. Ensures safe operation with reliable protection features and stable performance.

Features:

1. Overcharge Protection
2. Over Discharge Protection
3. Overcurrent Protection
4. Short Circuit Protection
5. Nickel Strip for Better Conductivity
6. Designed for 3S 3.7V NMC Cells
7. Low Power Consumption
8. Compact and Durable Design

Specifications:

Parameter	Value
Battery Type	Lithium-ion (NMC)
Configuration	3S (12.6V)
Charging Voltage	12.6V (CC/CV)
Continuous Charging Current	6A
Continuous Discharge Current	6A
Overcharge Detection Voltage	4.25 ±0.05V
Overcharge Release Voltage	4.1 ±0.05V
Over Discharge Detection Voltage	2.7 ±0.08V
Over Discharge Release Voltage	3.0 ±0.10V
Overcurrent Detection Voltage	0.1 ±0.03V
Overcurrent Detection Delay	200 ±25ms
Short Circuit Detection Delay	100 – 500µs
Operating Temperature Range	-45°C to +65°C
Storage Temperature Range	-45°C to +85°C

Also Check This Out :-

3S 10A Lithium Battery Protection BMS Module with Nickel Strip for 3.7V NMC Cells

3S 10A Lithium Battery Protection BMS Module for 3.7V NMC cells without Nickel Strip

Package Includes:

1 x 3S 6A Lithium Battery Protection BMS Module with Nickel Strip for 3.7V NMC Cells
