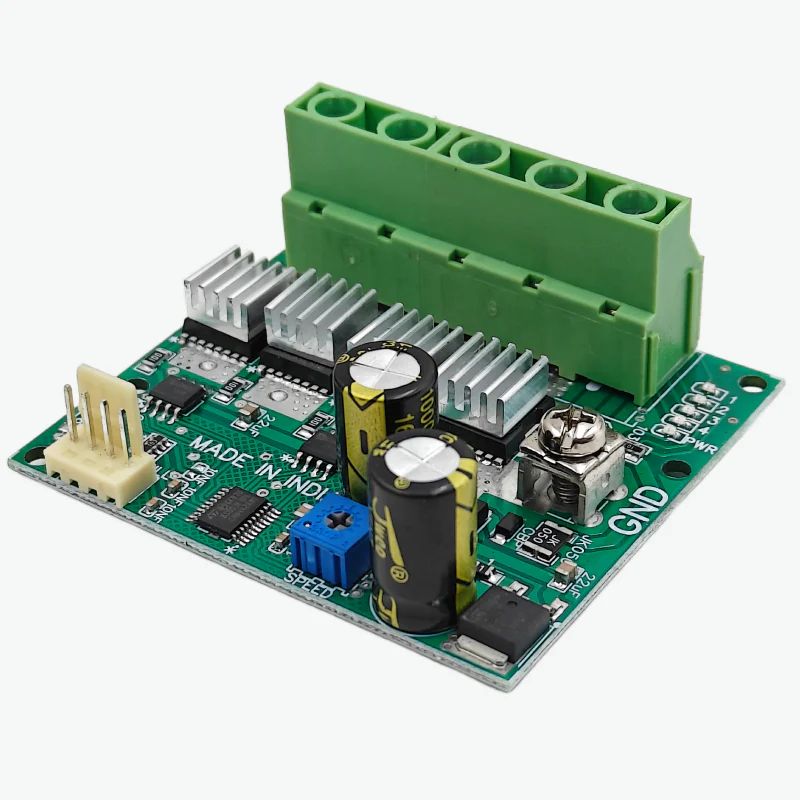

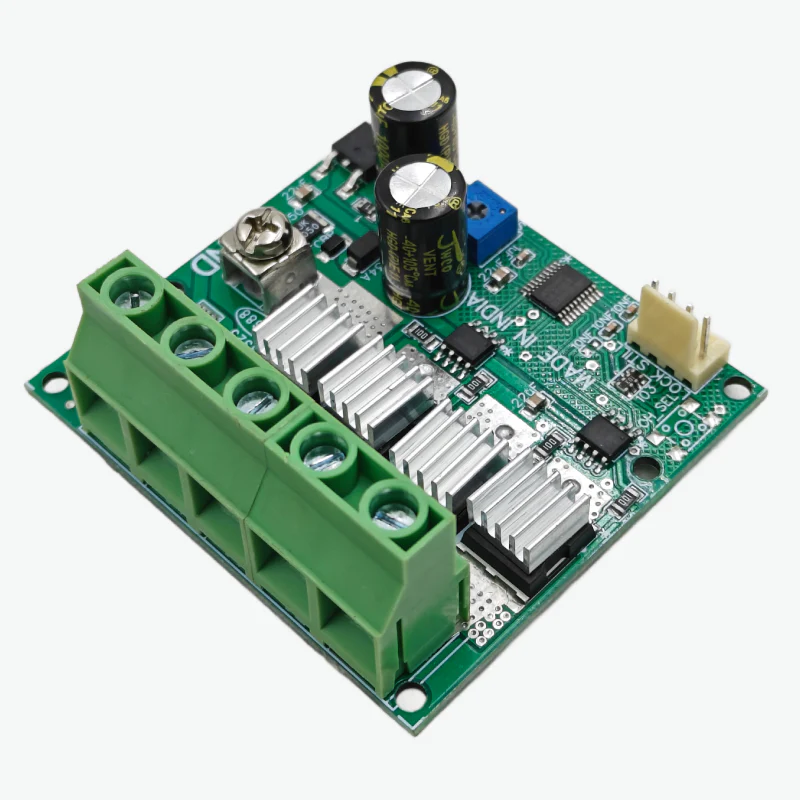

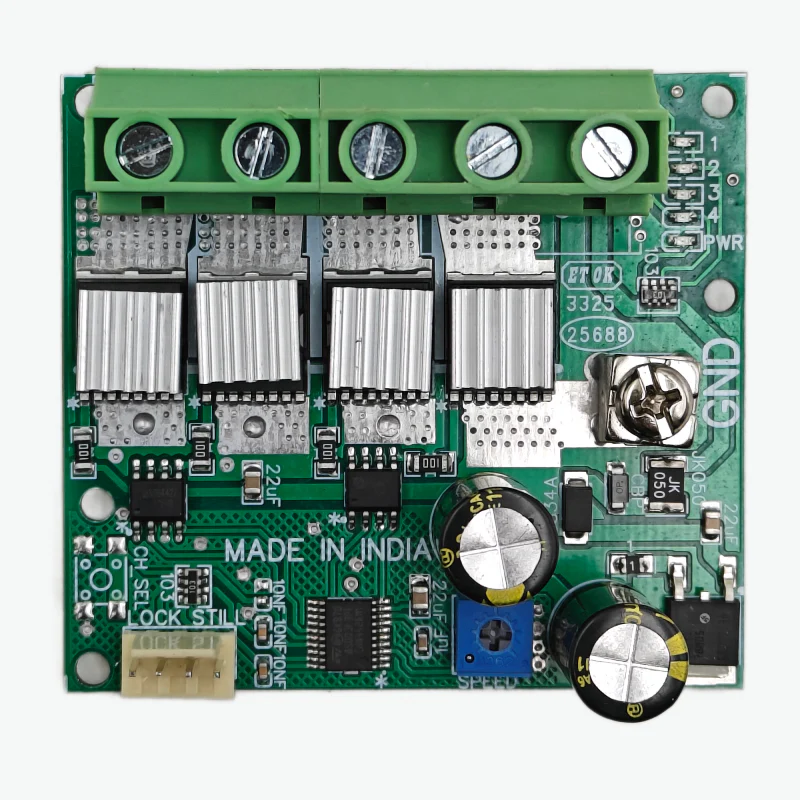

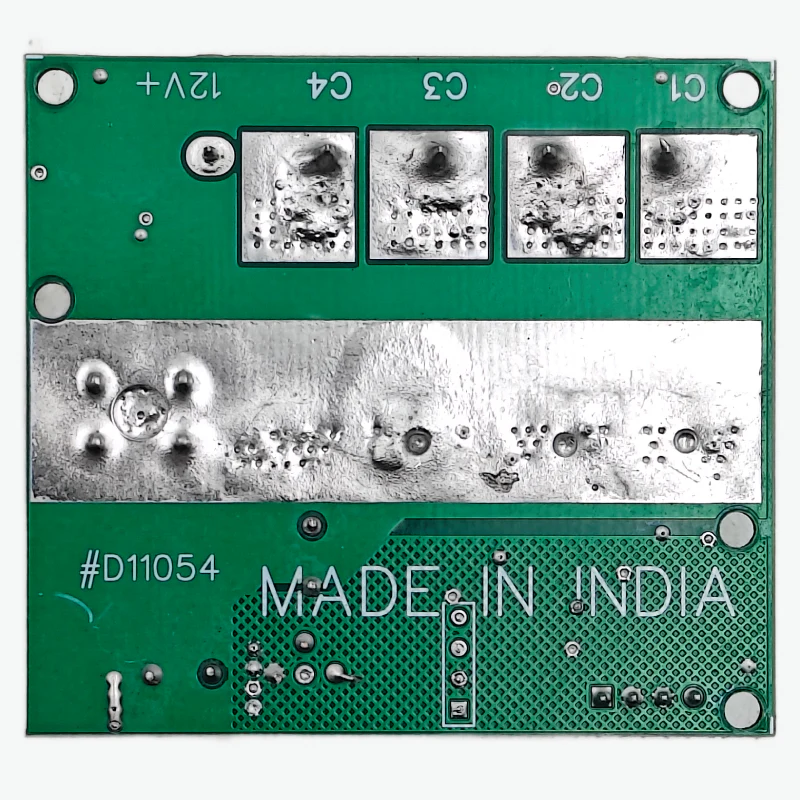

The 4 Channel 100A DC Design Chaser Flasher (7–15V DC, RGB + White) is a high-power, ready-to-use electronic control board designed to create dramatic sequential and flashing lighting effects. With four output channels supporting RGB and white lights and a total load capacity of up to 100A, this module is ideal for automotive lighting, stage effects, decorative installations, and high-current DIY lighting projects. Operating on a 7V–15V DC input range, the module can safely drive high-power RGB and white DC lights or LED strips when proper wiring, load distribution, and heat management are applied.

Features:

1. 4-channel DC design chaser flasher output
2. Supports RGB and white lights for versatile color effects
3. High-current support with up to 100A total load
4. Sequential, flashing, and pattern-based lighting control
5. Wide DC operating voltage range: 7V to 15V
6. Stable and reliable operation for continuous use
7. Suitable for high-power DC lights, LED strips, and automotive applications
8. Compact and robust PCB design for easy installation

Specifications:

• Module Type: 4-Channel High-Power DC Design Chaser Flasher Controller
• Number of Channels: 4
• Input Voltage: DC 7V – 15V
• Maximum Load Current: Up to 100A (total, application dependent)
• Output Type: Sequential, flashing, and pattern-based DC output
• Supported Lights: RGB + White
• Switching Mode: Automatic and continuous chaser patterns
• PCB Material: FR4
• Operating Temperature: –10°C to +60°C

Package Includes:

1 × 4 Channel 100A DC Design Chaser Flasher Module (7–15V DC, RGB + White)
