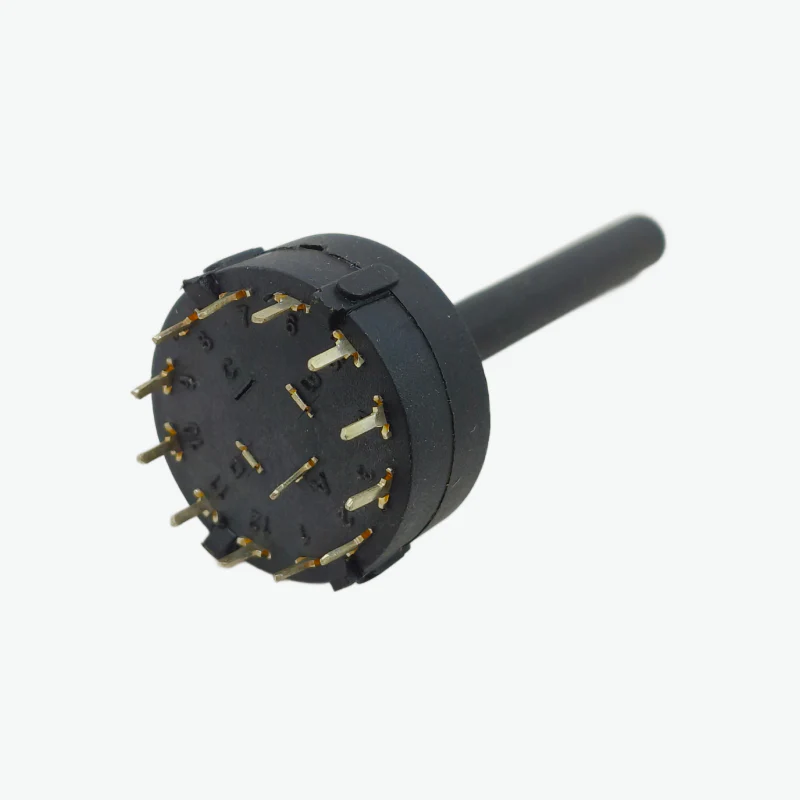

The 1 Pole 12 Way 26mm Rotary Switch (40mm Shaft) is a precision-engineered switching component designed for reliable multi-circuit control in industrial, electronic, and testing applications. Featuring a long 40mm shaft for easy knob installation and smooth operation, it offers 12 selectable positions for accurate circuit selection. Built with durable thermoplastic housing and high-quality metal contacts, this rotary switch ensures excellent insulation, conductivity, and long-term performance.

Features:

1. Rated for 5A at 250V AC, suitable for multi-circuit switching
2. 12-position rotary design for precise control
3. Single-pole configuration for versatile applications
4. Extended 40mm shaft for convenient knob mounting
5. Smooth rotation with firm position detents
6. Robust thermoplastic body for durability and heat resistance
7. Tin/Silver-plated contacts for reliable conductivity


Specifications:

• Model: 1 Pole 12 Way Rotary Switch
• No. of Poles: 1
• No. of Ways: 12
• Type: Rotary Switch
• Rated Voltage: 250V AC
• Rated Current: 5A
• Body Diameter: 26mm
• Shaft Length: 40mm
• Switch Operation: 12 Position (Rotary Selection)
• Body Material: Engineering Thermoplastic
• Contact Material: Tin/Silver Plated Metal
• Terminal Type: Solder Lug / Push Type
• Insulation Resistance: >1000 MΩ (at 500V DC)
• Dielectric Strength: >2KV
• Operating Temperature Range: -20°C to +70°C
• Electrical Endurance: >5,000 Cycles at Rated Load

Package Includes:

1 × 1 Pole 12 Way 26mm Rotary Switch – 40mm Shaft, 5A 250V AC
