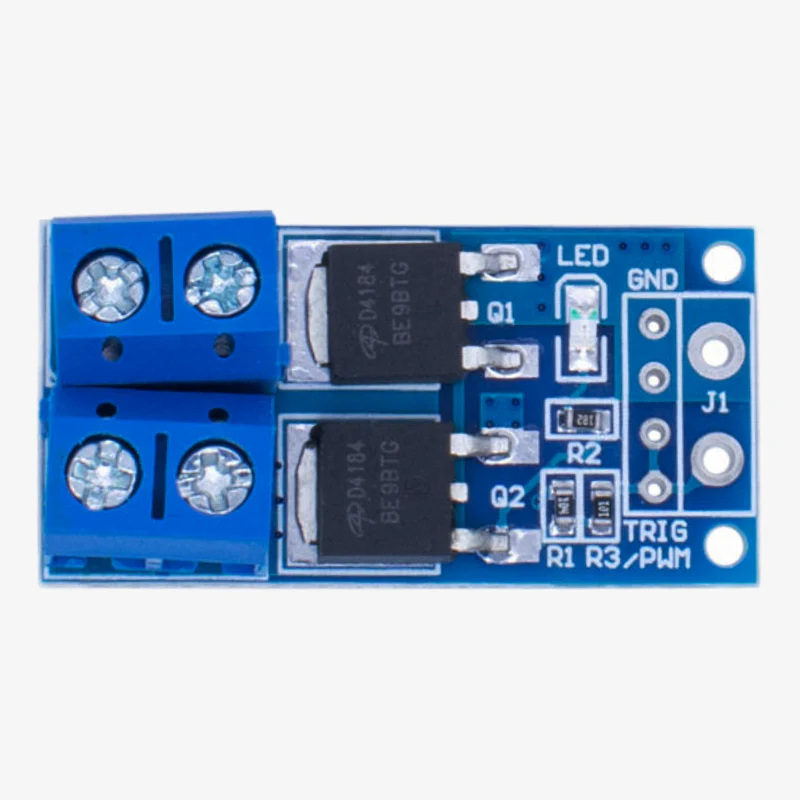

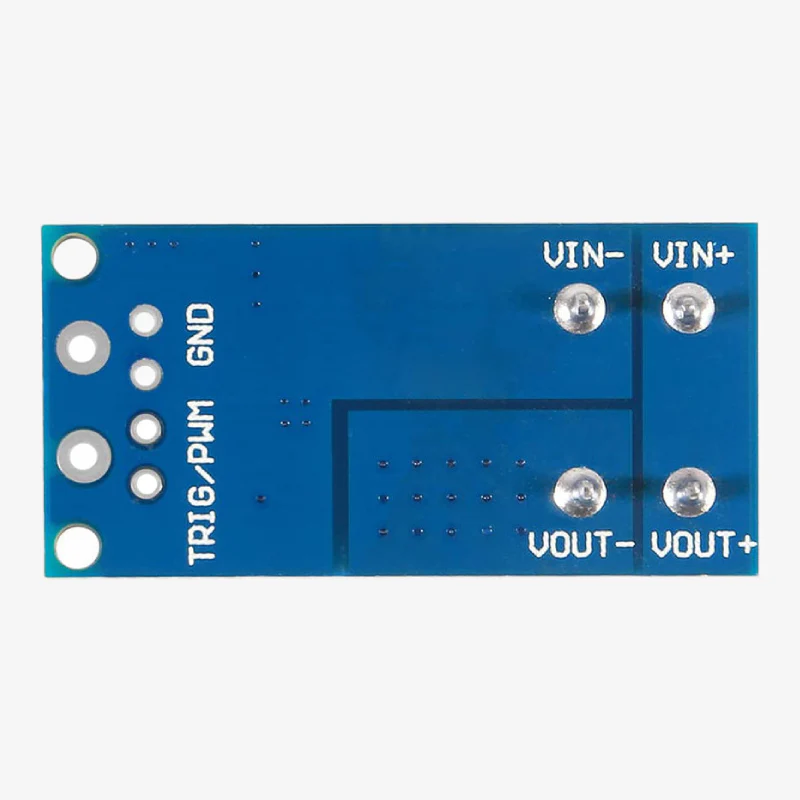

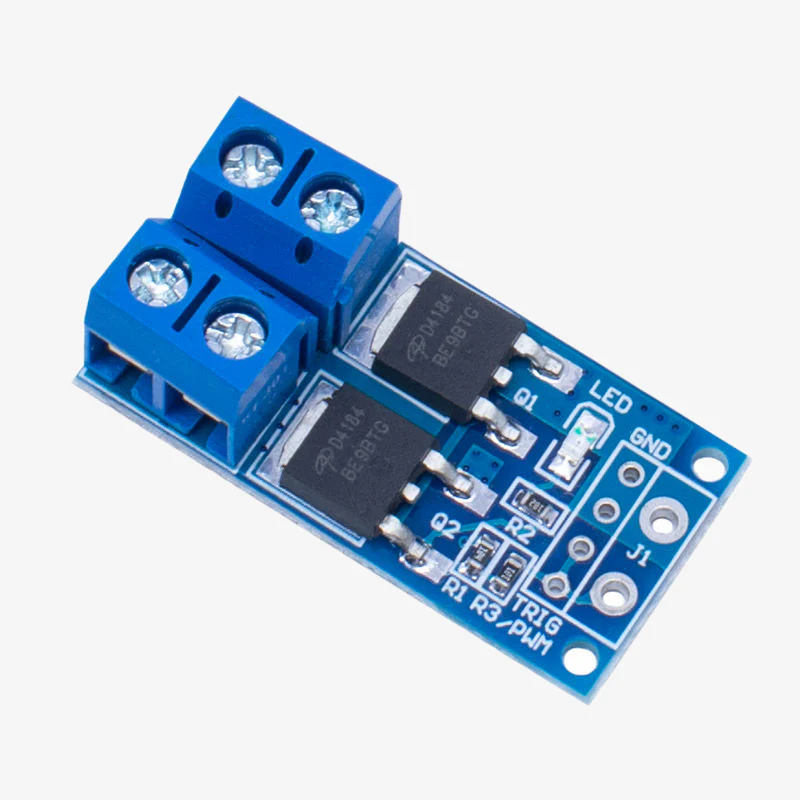

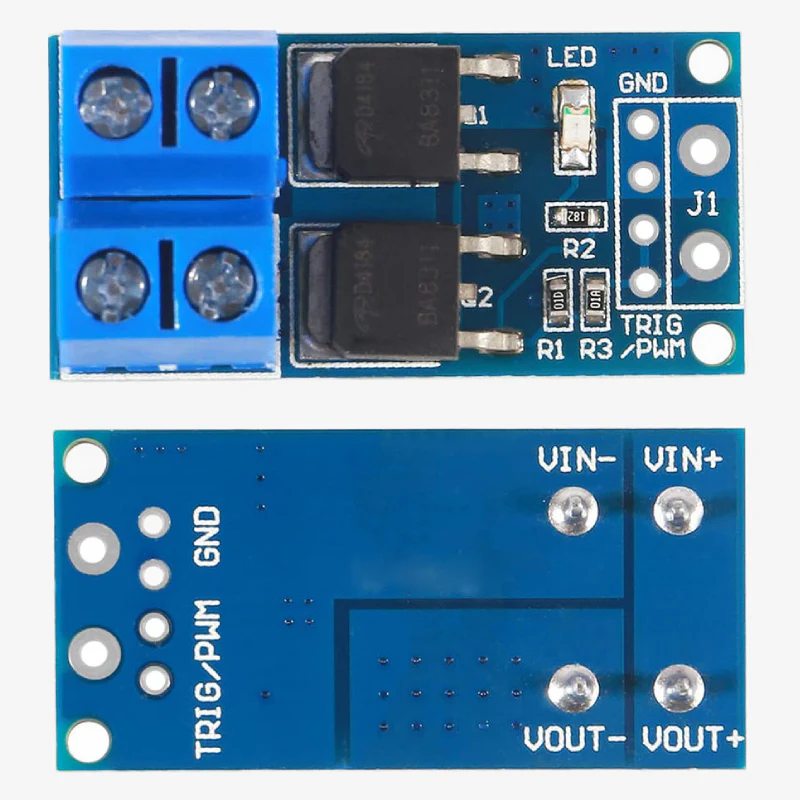

The 5–36V High-Power MOSFET Switch Drive Trigger Module is a compact and efficient electronic switching solution designed to control high-current DC loads using a low-power trigger signal. It employs a high-performance MOSFET to function as a fast electronic switch, enabling stable and reliable ON/OFF control for motors, LED strips, pumps, solenoids, heaters, and other DC-powered devices.
Supporting a wide voltage range from 5V to 36V, this module is ideal for automation systems, DIY electronics, robotics, and microcontroller-based control projects such as Arduino and Raspberry Pi setups. Its low power loss design ensures efficient operation with minimal heat generation.
Features:
- Wide operating voltage range: 5V – 36V DC
- High-power MOSFET for efficient electronic switching
- Supports high-current DC load control
- Low trigger current requirement
- Fast response and high switching speed
- Low heat generation with low conduction loss
- Compact and easy-to-install PCB design
- Compatible with microcontrollers (Arduino, Raspberry Pi, PLC)
- Ideal for controllig motors, LED strips, solenoids, heaters, and pumps
Specifications:
- Module Type: MOSFET Switch Drive Trigger Module
- Operating Voltage (Load): 5V – 36V DC
- Trigger Voltage: 3.3V – 5V DC
- Control Method: Digital trigger signal
- Switching Device: High-power N-channel MOSFET
- Output Type: DC Electronic Switching
- Maximum Load Current: Up to 15A (with proper heat dissipation)
- Continuous Current: Typically 10A
- Trigger Mode: High-Level Trigger
- Switching Speed: Fast response
- Conduction Resistance (RDS(on)): Low
- Operating Temperature: -20°C to +85°C
- Mounting Type: PCB module with screw terminals
Package Includes:
1 × 5–36V High-Power MOSFET Switch Drive Trigger Module
