The 5.3V 3A APM Power Module with XT60 Connector is designed to provide clean and stable power to flight controllers where accurate voltage regulation and current monitoring are essential. Commonly used with ArduPilot APM, Pixhawk, PX4, and Naze32 controllers, this module supplies regulated power from a LiPo battery while simultaneously measuring battery voltage and current. Equipped with an onboard switching regulator and XT60 connectors, it ensures reliable power delivery and safe integration in drone and UAV systems.

Features:

1. Provides stable regulated output for reliable flight controller operation

2. Integrated voltage and current sensing for real-time battery monitoring

3. Onboard switching regulator for efficient power conversion

4. Capable of measuring up to 90A.

5. Compact and protected design with pre-assembled wiring

Specifications:

• Output Voltage: 5.3V

• Continuous Current Rating: 3A

• Input Voltage: Up to 18V

• Battery Compatibility: LiPo Batteries

• Connector Type: XT60


Package Includes:

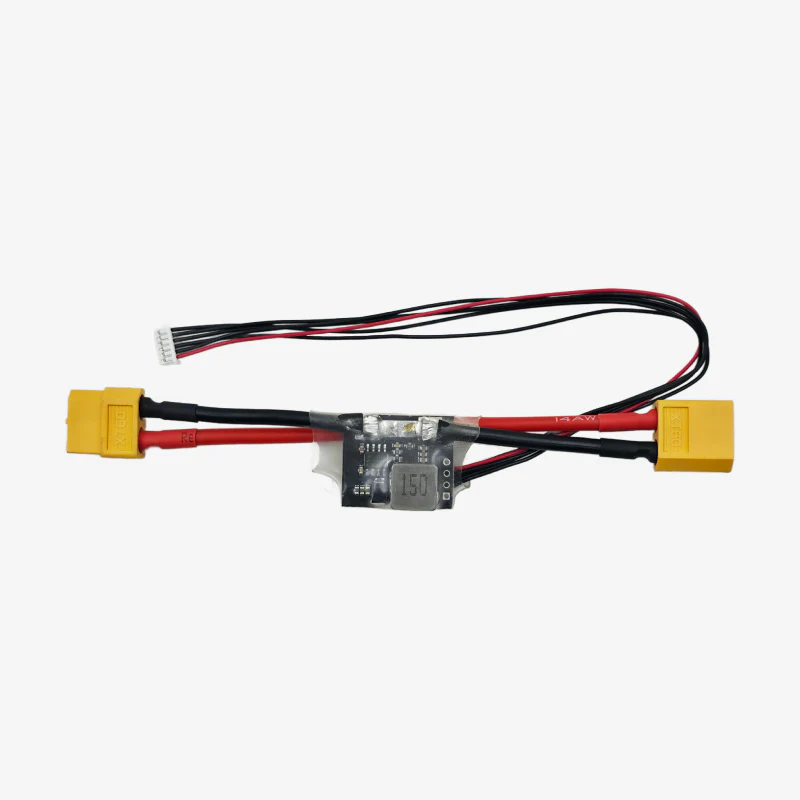

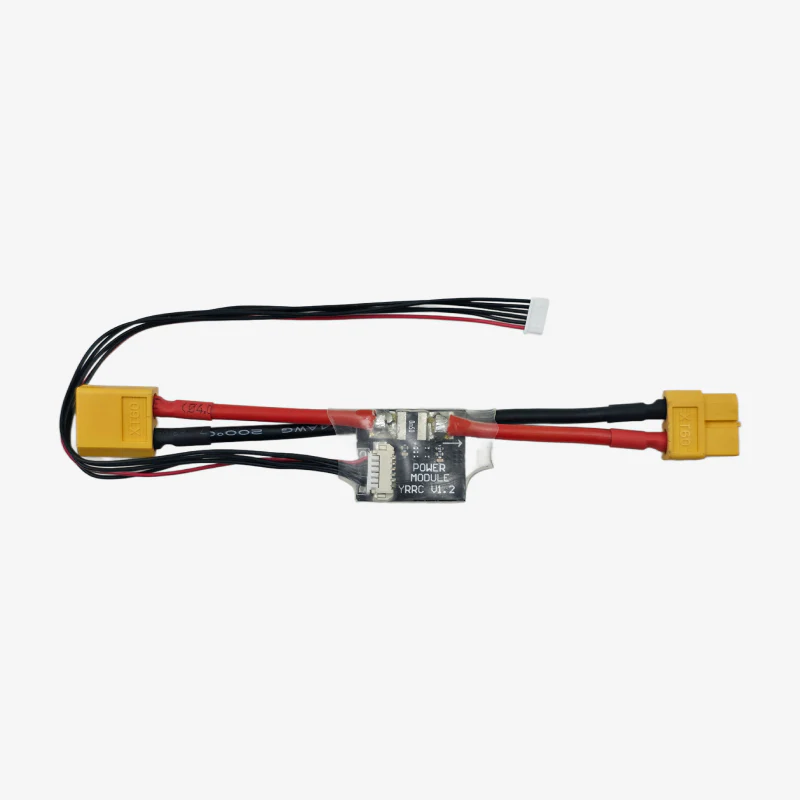

1 × 5.3V 3A APM Power Module with XT60 Connector
