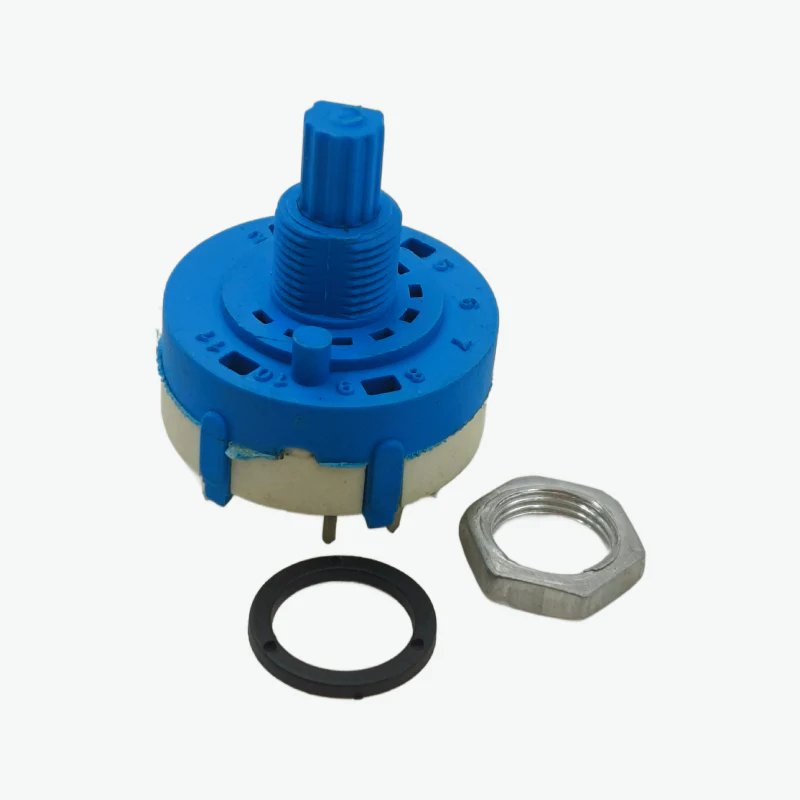

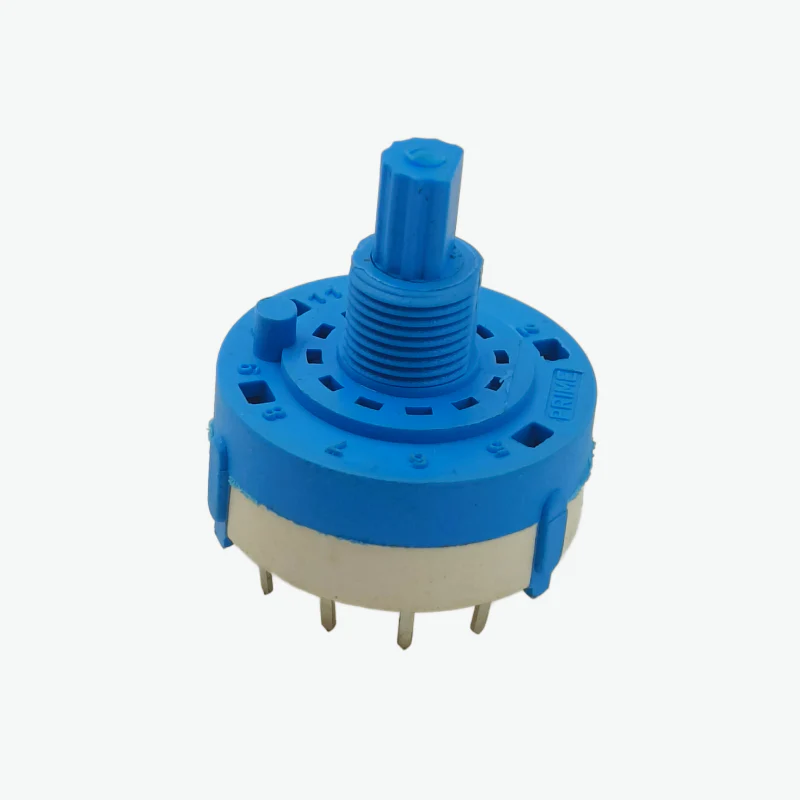

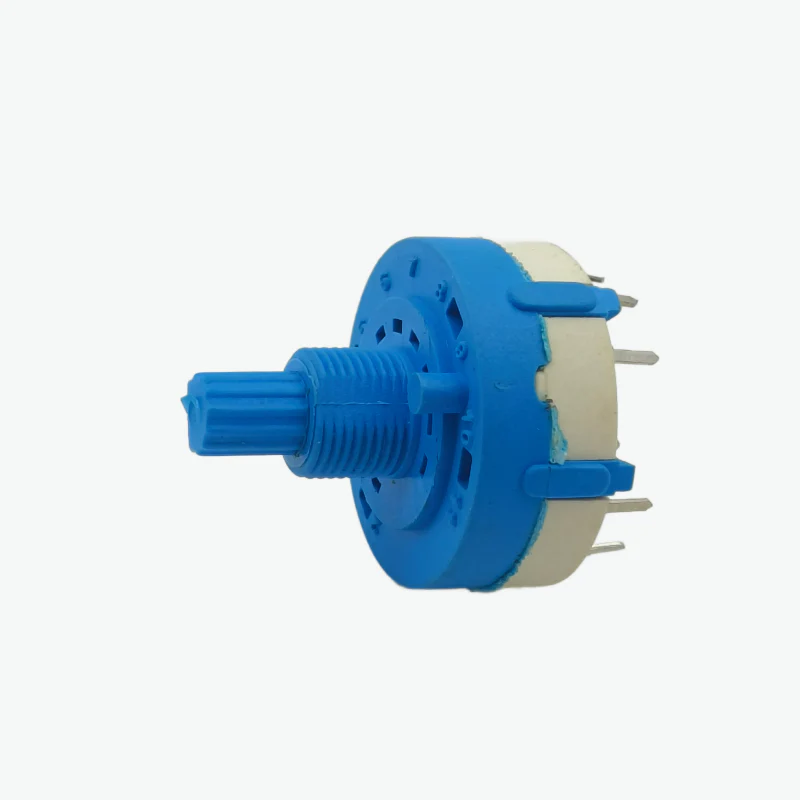

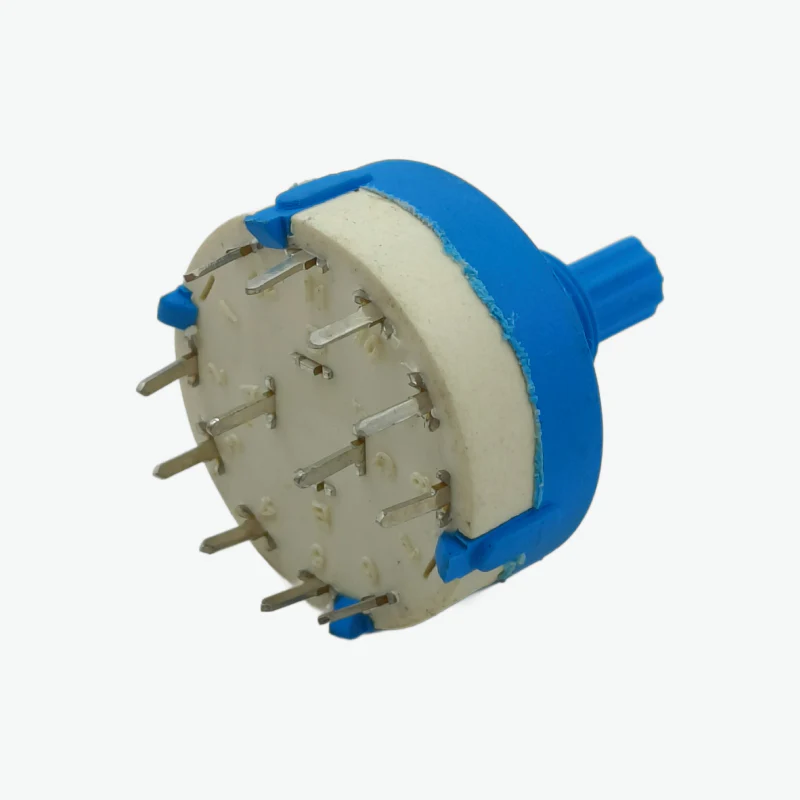

The 2 Pole 5 Way 26 mm Rotary Switch is a high-performance control device designed for smooth and accurate,regulation. Built with robust engineering thermoplastic and precision metal components, it ensures excellent durability, superior insulation, and long electrical endurance. Its 5-step rotary mechanism allows precise control of electricity, making it suitable for residential, industrial, and commercial applications.

Features:

1. Rated for 5A at 250V AC, ideal for ceiling fan control
2. 5-step rotary operation for smooth speed adjustment
3. High insulation resistance ensures electrical safety
4. Excellent dielectric strength for reliable performance
5. Rugged thermoplastic housing for enhanced durability
6. Tin/Silver-plated terminals for stable and low-resistance contact
7. Long-lasting steel spring mechanism for consistent rotation

Specifications:

• Model: 2 Pole 5 Way Rotary Switch
• No. of Poles: 2
• Diameter: 26mm
• Type: 5 Way Rotary
• Rated Voltage: 250V AC
• Rated Current: 5A
• Insulation Resistance: >1000 MΩ (at 500V DC)
• Dielectric Strength: >2KV
• Breakdown Voltage: 500V AC (50Hz, 2mA)
• Moulded Parts: Engineering Thermoplastic
• Terminal & Wiper: Tin/Silver Plated
• Electrical Endurance: 5,000 Cycles @ 80W Fan Load
• Axial Load: 5Kg Min.
• End Torque: 4Kg·cm Max.
• Nut Torque: 0.80Nm Max.

Package Includes:

1 × 2 Pole 5 Way 26 mm Rotary Switch-5A 250V AC
