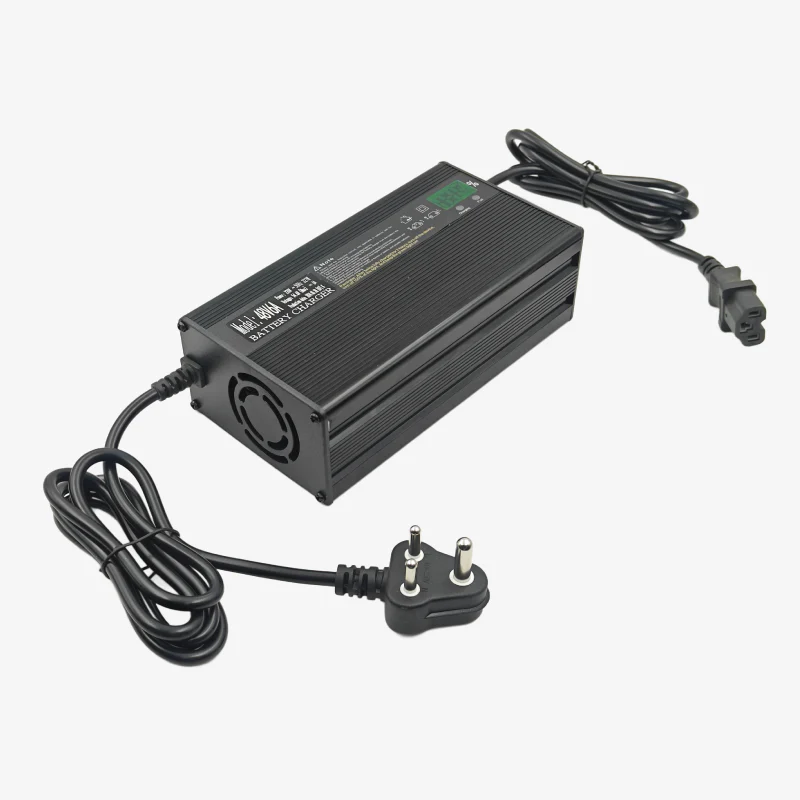

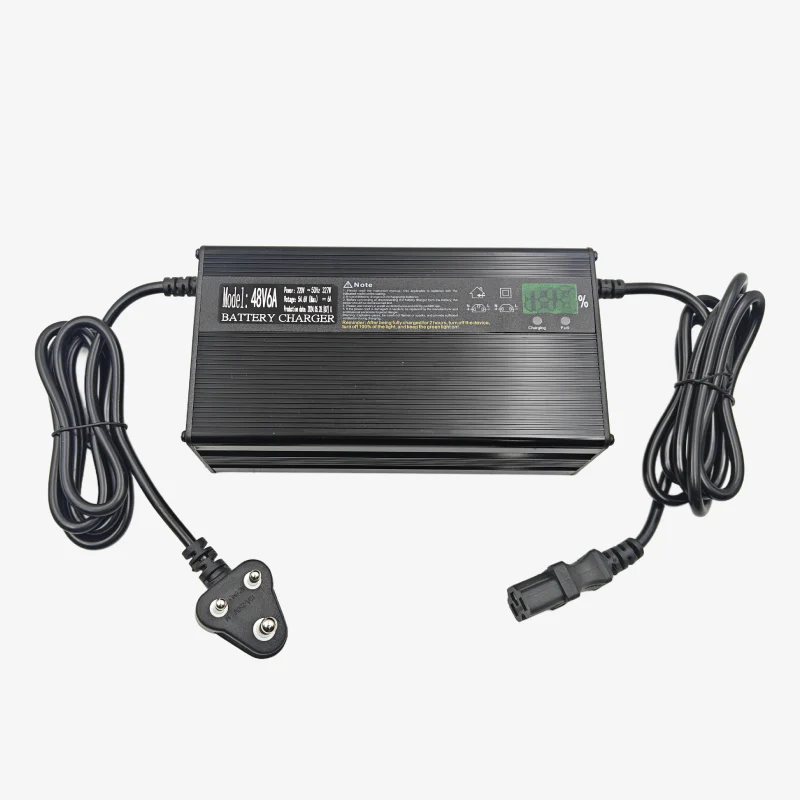

This 54.6V 6A E-Scooty Battery Charger is specially designed for 48V nominal Lithium Nickel Manganese Cobalt (NMC) battery packs used in e-scooters and e-bikes. It operates on a CC/CV charging profile, where the charger outputs a maximum voltage of 54.6V and supplies regulated current while charging until the battery is fully topped up. The aluminium alloy body and built-in cooling fan ensure efficient heat dissipation, stable performance, and long service life.

Note: For safety and protection, the charger does not supply any output voltage when no battery is connected.

Features of 54.6V 6A NMC Battery Charger:

1. Optimized for 48V nominal NMC lithium battery packs (13S configuration).
2. Idle output: 54.6V
3. Charging mode: Constant Current / Constant Voltage (CC/CV).
4. Charging current: 6A – enables fast charging of high-capacity packs.
5. Intelligent charging cutoff for safety and battery health.
6. Multiple protections: over-voltage, over-current, short circuit, and reverse polarity.
7. Aluminium alloy casing with inbuilt cooling fan for heat management.
8. LED/Display indicators for real-time charging status.
9. Indian 3-pin AC input plug with IEC C13 output connector.

Specifications of 54.6V 6A NMC Battery Charger:

• Input Voltage: 180–260V AC, 50/60Hz
• Output Voltage: 54.6V DC
• Charging Voltage: Suitable for 48V NMC Lithium-ion (13S pack)
• Output Current: 6A

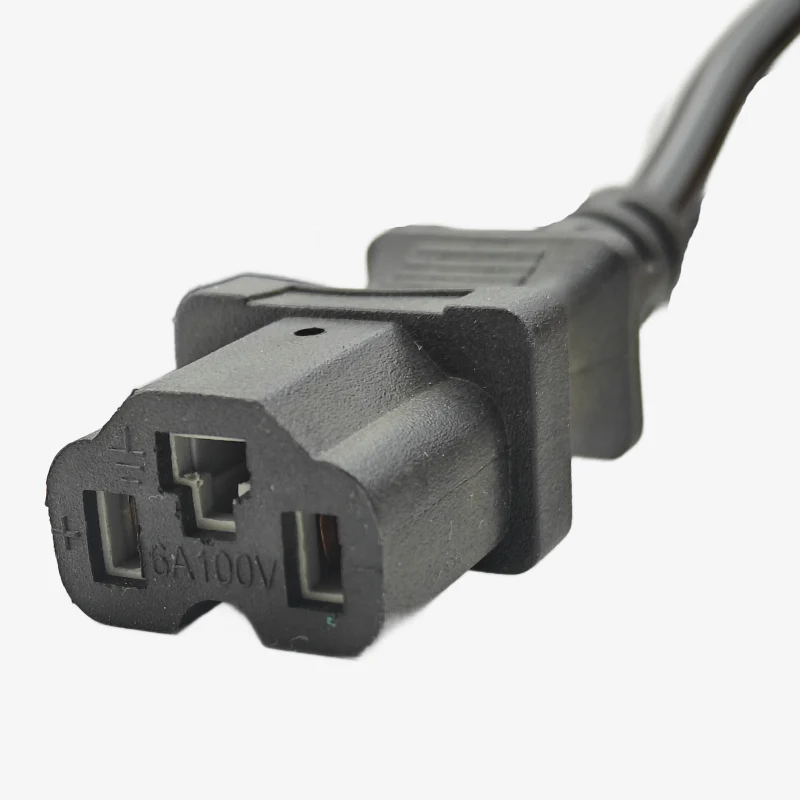

• Output Connector: IEC C13 Female Plug
• Input Plug Type: Indian 3-pin AC plug
• Cooling: Integrated cooling fan
• Material: Aluminium alloy casing
• Color: Black

Package Includes:

1 × 54.6V 6A E-Scooty Battery Charger with Cooling Fan (with power cable)
