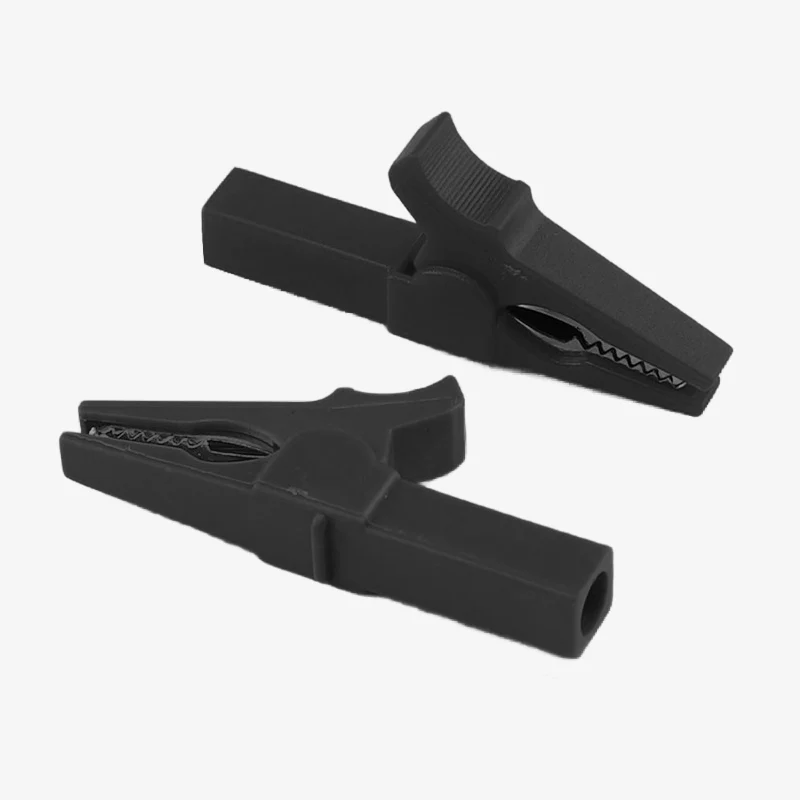

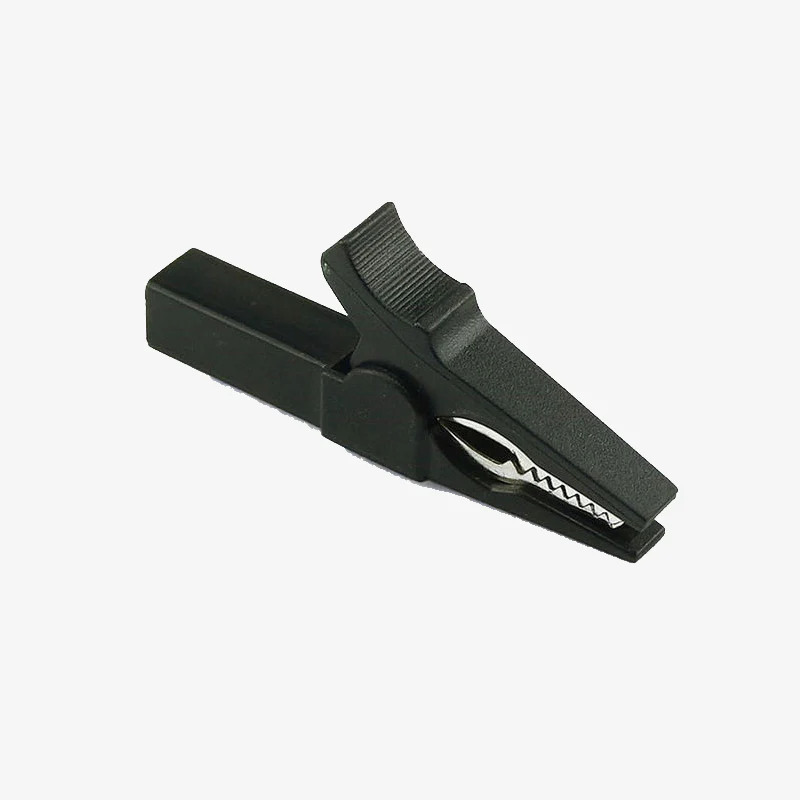

The 55mm Copper Insulated Crocodile Clip provides a secure and stable solution for temporary electrical connections during testing, diagnostics, and prototyping. Built with high-conductivity copper jaws and a robust black insulated housing, it ensures reliable contact while minimizing electrical hazards. The 10mm jaw opening accommodates various wire sizes and terminals, and the 4mm banana plug compatibility makes it suitable for multimeters, power supplies, and other lab testing equipment.

Features:

1. High-conductivity copper jaws for low-loss electrical transfer
2. Strong insulated body to prevent shorts and enhance handling safety
3. 10mm jaw opening ideal for gripping terminals, test points, and wire ends
4. Compatible with standard 4mm banana plugs and test leads
5. Steel spring mechanism provides firm, stable clamping force
6. Ideal for electronics labs, measurement setups, and prototyping work

Specifications:

• Overall Length: 55mm
• Jaw Opening Range: 0–10mm
• Contact Material: Pure Copper (low contact resistance)
• Spring Type: Steel compression spring, medium tension
• Insulation Material: High-strength PVC molded housing
• Connector Interface: 4mm Banana Plug compatible rear terminal
• Maximum Current Rating: 5A (variable with cable used)
• Voltage Range: 30V–60V DC (low-voltage testing applications)
• Contact Resistance: < 20mΩ (typical)
• Operating Temperature: -20°C to +80°C
• Color: Black (standard negative/ground indicator)
• Applications: Multimeters, benchtop power supplies, testing circuits, temporary electrical joints

Package Includes:

1 × 55mm Copper Insulated Crocodile Clip (10mm Opening, Black) for 4mm Banana Plug
