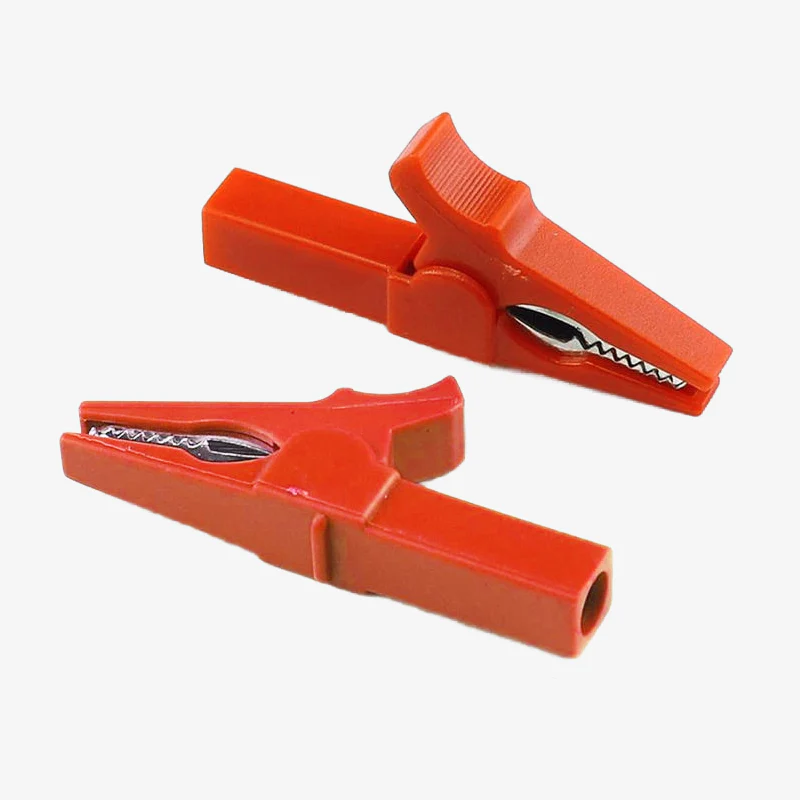

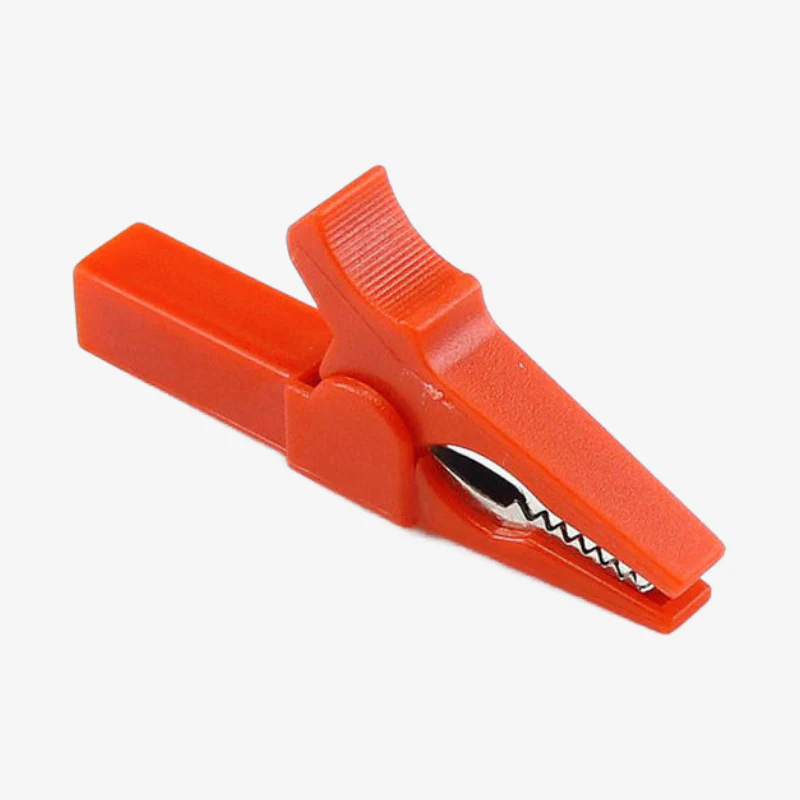

The 55mm Copper Insulated Crocodile Clip is designed for secure and reliable electrical connections during testing, prototyping, and measurement tasks. With a strong red insulated body and high-conductivity copper jaws, this clip ensures stable contact while maintaining user safety. Its 10mm jaw opening supports a wide range of wire sizes and terminals, and the built-in 4mm banana plug compatibility makes it ideal for multimeters, test leads, power supplies, and lab equipment.

Features:

1. High-conductivity copper jaws for efficient electrical transfer
2. Durable insulated housing to prevent accidental short circuits
3. 10mm jaw opening ideal for terminals, wire ends, and test points
4. Compatible with standard 4mm banana plugs and test leads
5. Firm spring tension ensures a stable and slip-free grip
6. Suitable for electronics labs, field testing, and prototyping

Specifications:

• Overall Length: 55mm
• Jaw Opening Range: 0–10mm
• Contact Material: Pure Copper (low contact resistance)
• Spring Type: Steel compression spring, medium tension
• Insulation Material: High-strength PVC molded cover
• Connector Interface: 4mm Banana Plug compatible tail
• Maximum Current Rating: 5A (depends on lead used)
• Voltage Range: 30V–60V DC (low-voltage testing applications)
• Contact Resistance: < 20mΩ (typical, unloaded)
• Operating Temperature: -20°C to +80°C
• Color: Red (standard positive polarity indicator)
• Applications: Multimeters, power supplies, lab setups, prototyping circuits

Package Includes:

1 × 55mm Copper Insulated Crocodile Clip with 10mm Opening for Banana Plug 4mm – Red
