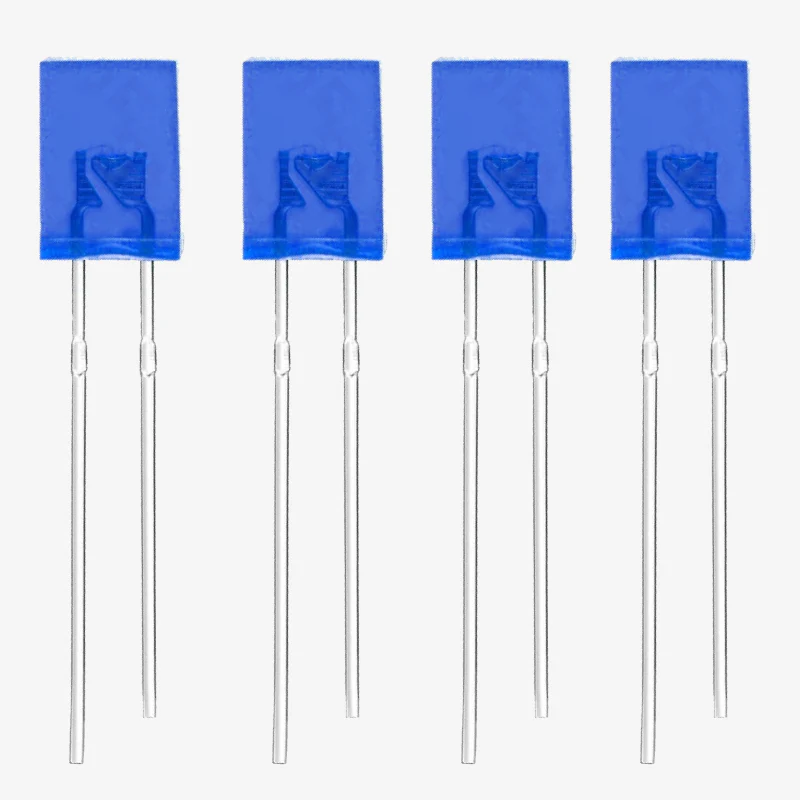

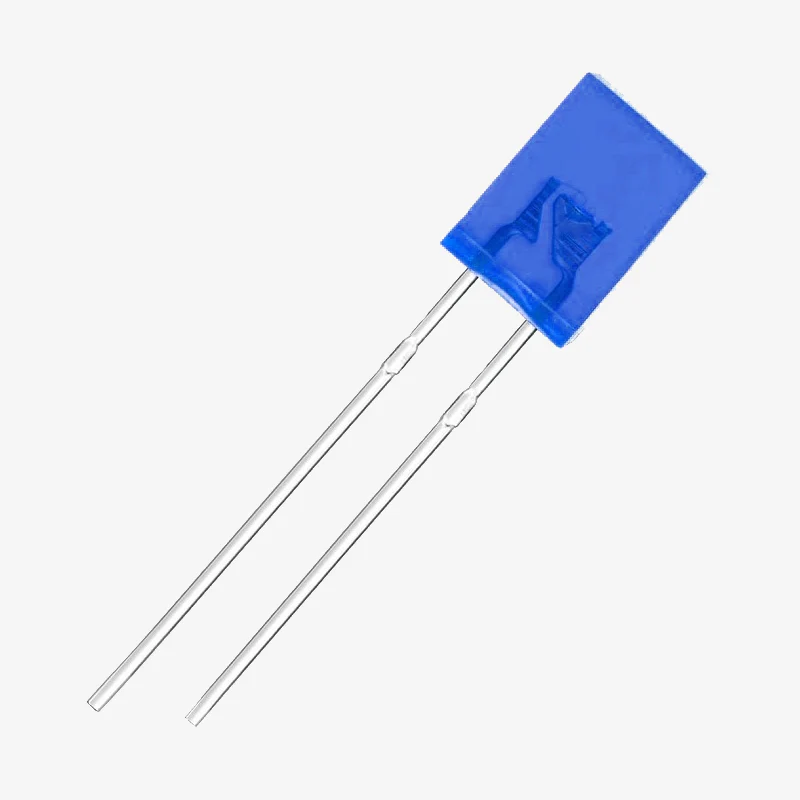

The 5mm Rectangle Flat Top Diffused Blue LED is designed for clear, uniform light output and excellent visibility in indicator and display applications. Its rectangular shape and flat-top diffused lens offer a wide viewing angle, making it ideal for panel indicators, DIY electronics, signaling systems, and custom lighting projects. With a standard 2-pin through-hole design, it integrates easily into PCBs, breadboards, and wiring assemblies.

Features:

1. Rectangular 5mm flat-top diffused lens for wide and even light distribution
2. Bright blue illumination with consistent output
3. Standard 2-pin through-hole design for easy mounting
4. Long service life with low power consumption
5. Stable operation and high visibility under ambient lighting
6. Suitable for indicators, displays, DIY circuits, and hobby electronics

Specifications:

• LED Type: 5mm Rectangular Flat Top Diffused LED
• Color: Blue
• Forward Voltage (VF): 2.8V – 3.4V (typical)
• Forward Current (IF): 20mA (standard operating current)
• Luminous Intensity: 300–600 mcd (varies by batch)
• Wavelength: 460–470 nm (blue)
• Lens Type: Diffused, flat-top rectangular
• Viewing Angle: ~120° wide-angle output
• Mounting Type: Through-hole, 2-pin
• Polarity: Longer lead = Anode (+), shorter lead = Cathode (–)
• Applications: Indicators, control panels, DIY electronics, display modules

Package Includes:

1 × 5mm Rectangle 2-Pin Through-Hole Flat Top Diffused LED – Blue
