The 5mm Rectangle Flat Top Diffused Green LED is designed for bright, uniform light output suitable for indicators, displays, and general electronic signaling. With its rectangular flat-top design, it provides a wide viewing angle and smooth illumination. The standard 2-pin through-hole construction makes it easy to integrate into breadboards, PCBs, and panel assemblies.

Features:

1. 5mm rectangular flat-top diffused lens for soft, even lighting
2. Bright green emission with stable output
3. Easy-to-mount 2-pin through-hole package
4. Low power consumption and long operating lifespan
5. Wide-angle visibility suitable for indicators and displays
6. Ideal for DIY electronics, control panels, and visual alert circuits

Specifications:

• LED Type: 5mm Rectangular Flat Top Diffused LED
• Color: Green
• Forward Voltage (VF): 2.0V – 2.4V
• Forward Current (IF): 20mA
• Luminous Intensity: 300–800 mcd (typical)
• Wavelength: 520–535 nm (green)
• Lens Type: Diffused, flat-top rectangular
• Viewing Angle: ~120°
• Mounting Type: Through-hole, 2-pin
• Polarity: Long lead = Anode (+), short lead = Cathode (–)
• Applications: Indicators, signal displays, hobby circuits, dashboards

Package Includes:

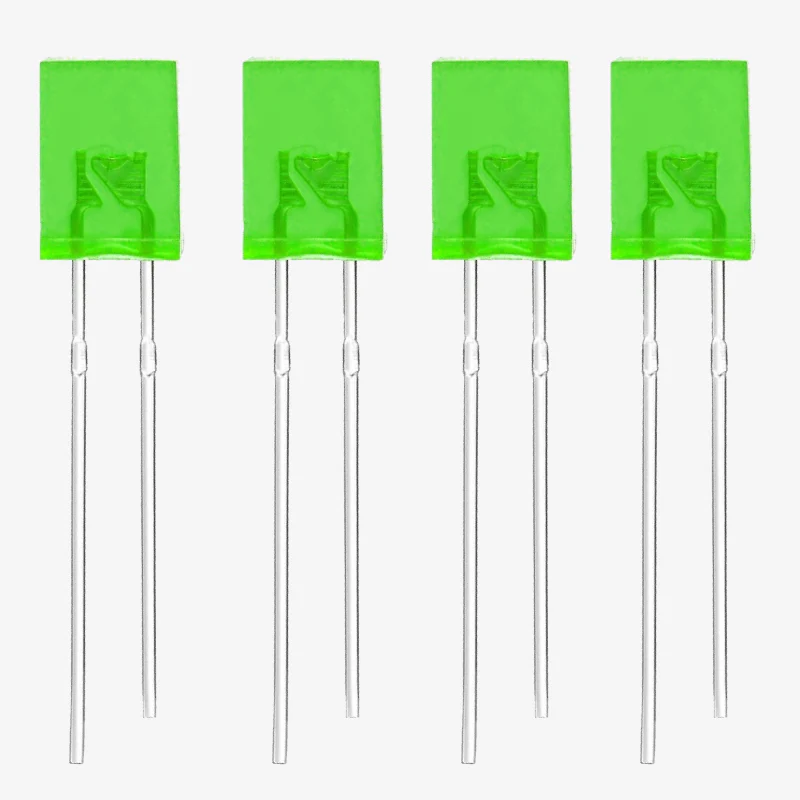

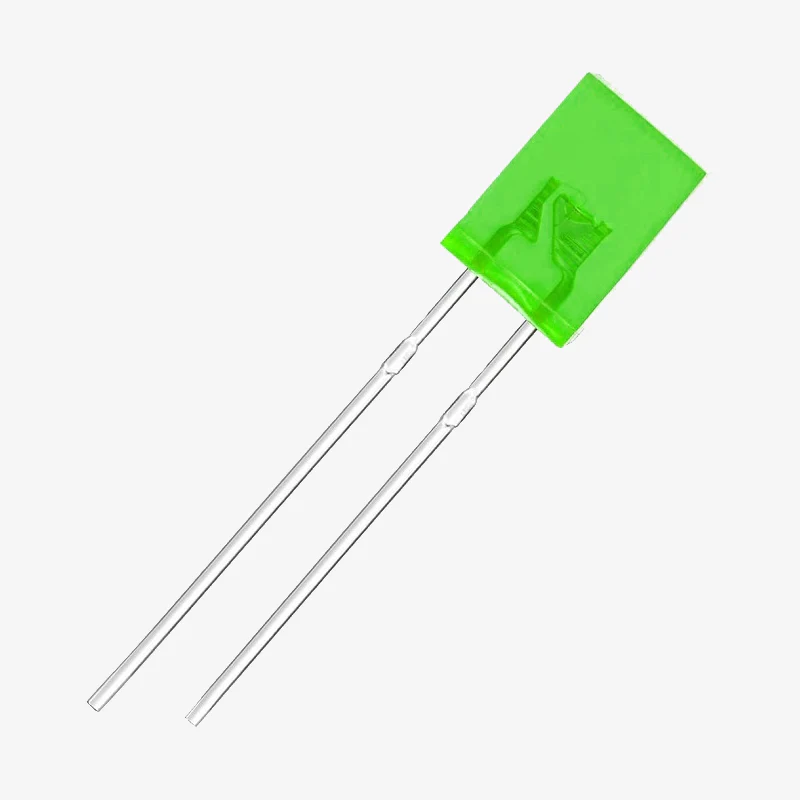

1 × 5mm Rectangle 2-Pin Through-Hole Flat Top Diffused LED – Green
