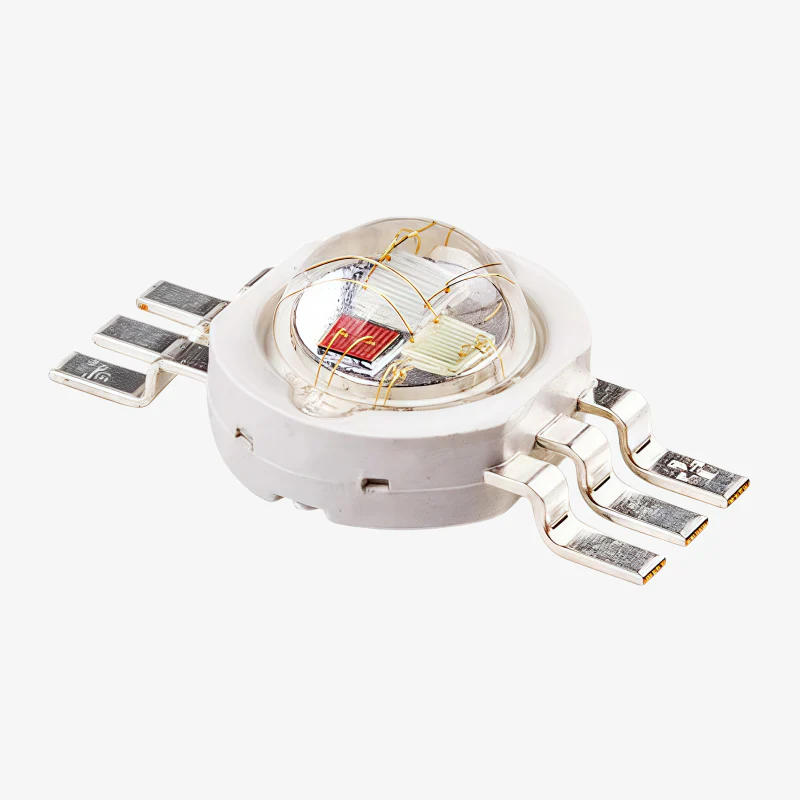

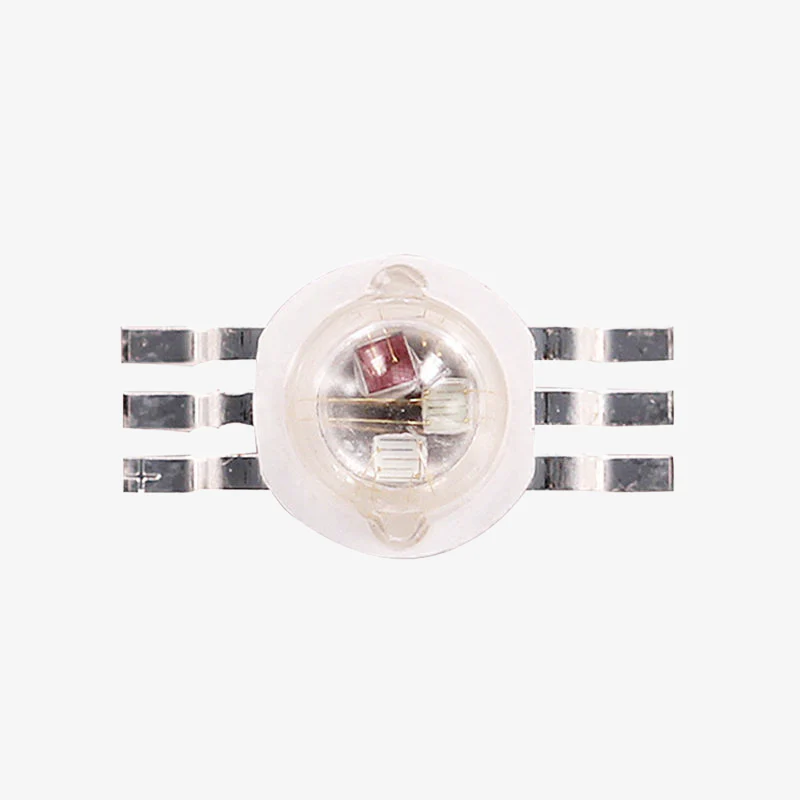

The 6Pin 3 Watt RGB SMD LED is a high-brightness, surface-mount LED that integrates Red, Green, and Blue emitters in a single compact package. Designed for high-efficiency lighting applications, this LED can be used to produce a wide spectrum of colors through PWM control or analog current variation. Its 6-pin configuration allows for independent control of each color channel, making it ideal for use in LED displays, stage lighting, ambient lighting systems, and DIY electronics projects requiring vibrant color effects.

This RGB LED is highly durable and energy-efficient, with low thermal resistance and excellent color mixing capabilities. It can be mounted directly on heat-dissipating PCBs to support high-power operation.

Features of 6Pin 3 Watt RGB SMD LED:

1. 3W high-power output combining Red, Green, and Blue channels
2. Surface mount (SMD) design for compact and automated assembly
3. 6-pin configuration for individual control of RGB channels
4. Produces vivid color effects through mixing of RGB light
5. Low thermal resistance and high optical output
6. Suitable for lighting panels, mood lamps, and decorative projects

Specifications of 6Pin 3 Watt RGB SMD LED:

• Type: RGB SMD LED
• Total Power: 3 Watts

• Red: 2.0V – 2.4V
• Green: 3.0V – 3.4V
• Blue: 3.0V – 3.4V
• Forward Current (typical): 350mA per channel
• Number of Pins: 6 (2 per color channel)
• Color: RGB (Red, Green, Blue)
• Mounting Type: SMD (Surface Mount Device)


Package Includes:

1 × 6Pin 3 Watt RGB SMD LED
