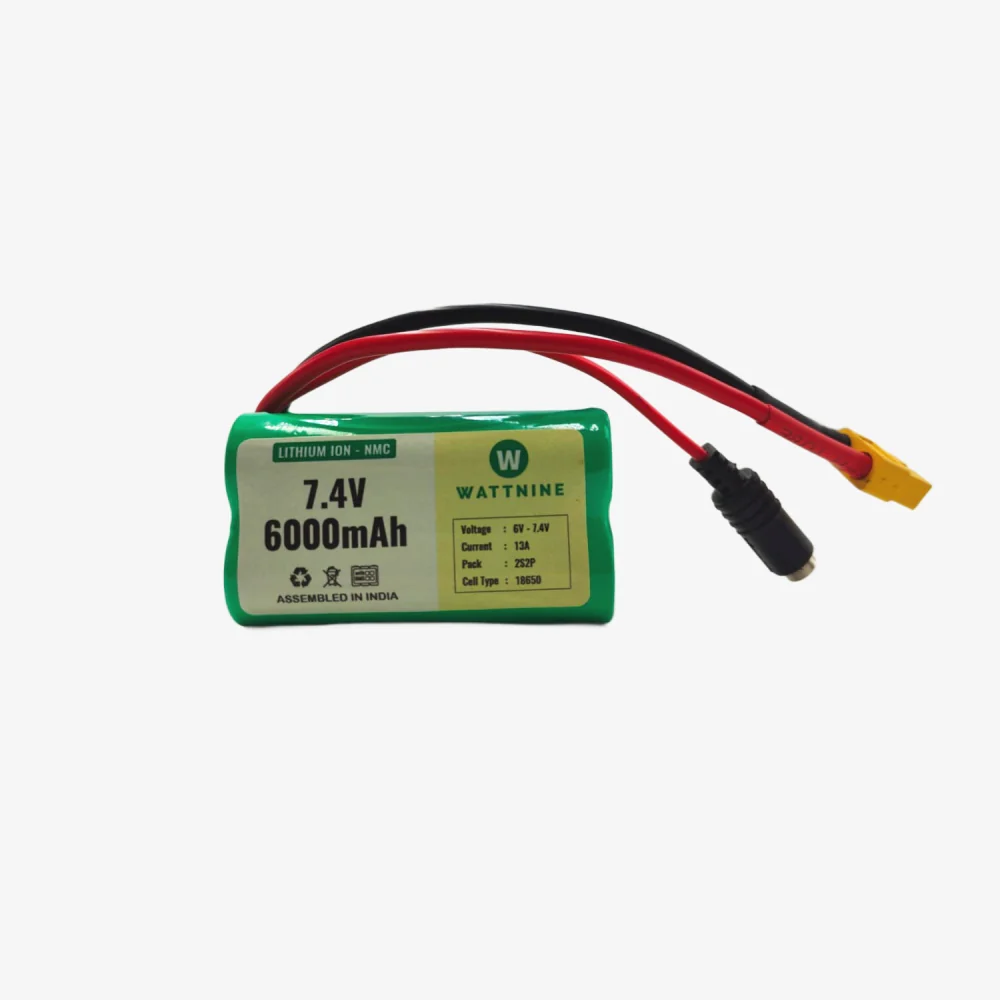

This Li-ion Rechargeable Battery Pack has a nominal voltage of 7.4 volts and is a 2S2P battery pack with a total of 4 cells connected, giving it a capacity of 6000mAh. The battery pack has a built-in BMS that protects the battery from overcharging,  over-discharging and short circuit.

Features

• High Energy Density

• Equipped with Smart Battery Management System

• Long Cycle life

• Excellent Safety & Performance

Battery Specifications

Nominal Characteristics
Nominal Voltage /V	7.4V
Nominal Capacity /Ah (25°C, 0.5C)	6000MAH
Power	44.4W
Operating Voltage Range	6V-8.4V
Pack Characteristics
Design	2S2P
Cell type / Chemistry	18650/NMC 3C
Mechanical Characteristics
Weight	212gms
Dimension (LxWxH)	38mmX39mmX68mm

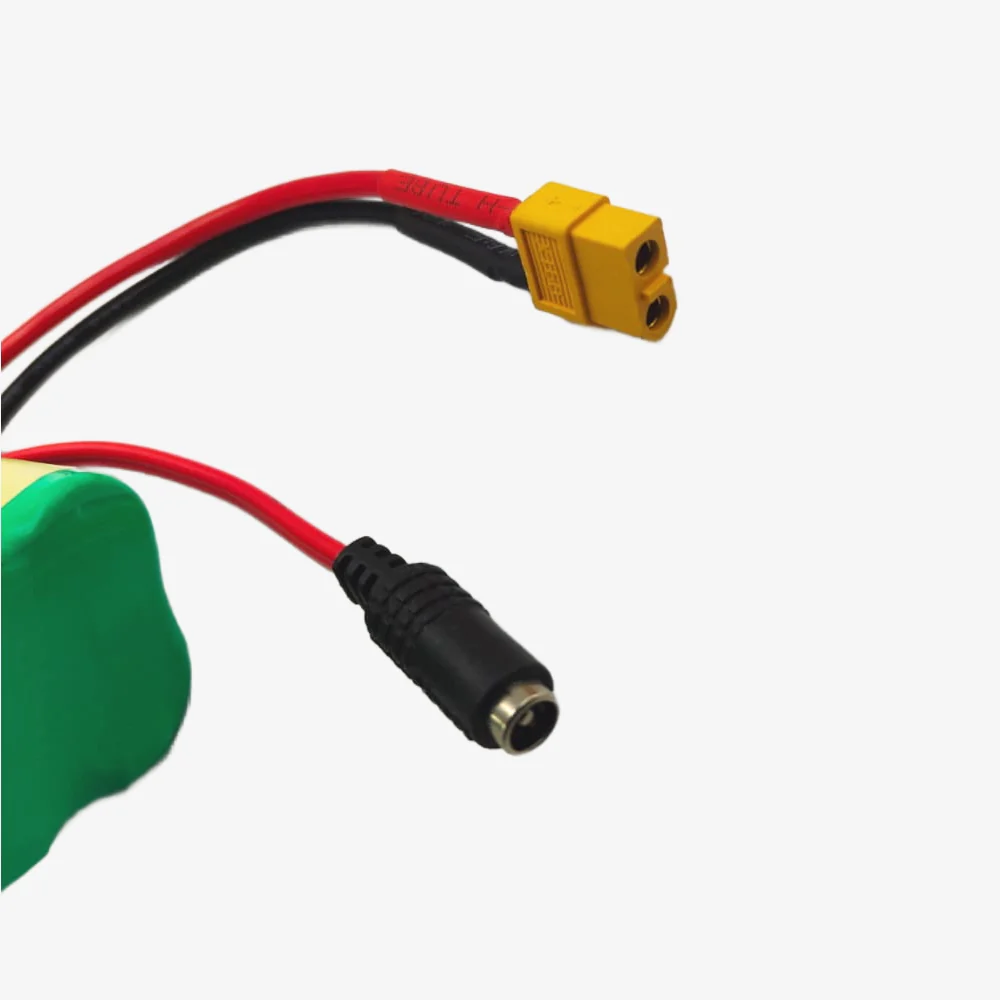

Charging Connector	DC Female
Discharging Connector	XT60 Connector Female
Charging Characteristics
Charge voltage	8.4V
Max. Continues Charge current	2A
Charging Duration	180 Min
Discharging Characteristics
Max. Voltage	8.4V
Min. Voltage	6V
Nominal Discharge current	6A
Max. Continues Discharge current	10A



Warranty Terms:

This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
