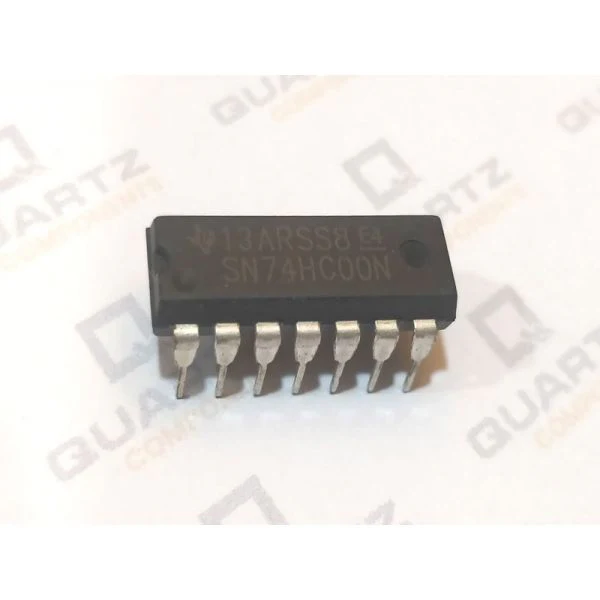

74HC00 Quad 2-input NAND Gate IC - 14 Pin DIP Package
The 74HC00 is an IC with four NAND gates. Each gate has its own two inputs, so the IC is normally referred to as a Quad 2-input NAND gate IC. Though all the gates are powered from a common rail, they operate independently performing a NAND (AND NOT) Boolean function. It is commonly used in SR latches, alarm and temper detect circuits.
Product Description of the 74HC00 Quad 2-input NAND Gate IC
PIN DESCRIPTION
A and B denote Inputs to the NAND gates and the Q denotes outputs from the NAND gates.
Features of 74HC00 Quad 2-input NAND Gate IC
- Implementation of NAND Function
- Buffered inputs and Outputs
- DC supply Voltage range : 2V to 6V
- Operating Temperature : -40 to 125 °C
- Packaging : plastic small outline package; 14 leads; body width 3.9 mm
Package Contents
1× 74HC00 Quad 2-input NAND Gate IC
