The 74HC595 is an 8-bit serial-in, serial or parallel-out shift register with a storage register and 3-state outputs. It is used to expand the number of output pins of a microcontroller or microprocessor in digital circuits. This IC allows cascading multiple 74HC595 chips to control large sets of outputs, such as LEDs or displays, with only a few I/O pins. The SOIC-16 surface-mount package makes it suitable for compact and automated PCB assemblies.

Features of 74HC595 8-Bit Shift Register IC:

1. 8-bit serial-in, parallel-out shift register
2. Integrated 8-bit storage register with 3-state outputs
3. Supports cascading for multiple ICs
4. Fast switching speed for high-frequency operations
5. Compatible with TTL and CMOS logic levels
6. Low power consumption design
7. SOIC-16 SMD package for compact applications

Specifications of 74HC595 IC:

• Model: 74HC595
• Function: 8-bit serial-in, serial/parallel-out shift register
• Output Type: 3-state
• Supply Voltage Range: 2V to 6V
• Maximum Clock Frequency: 100 MHz
• Package: SOIC-16 – SMD
• Operating Temperature Range: -40°C to +125°C
• Manufacturer: NXP

Package Includes:

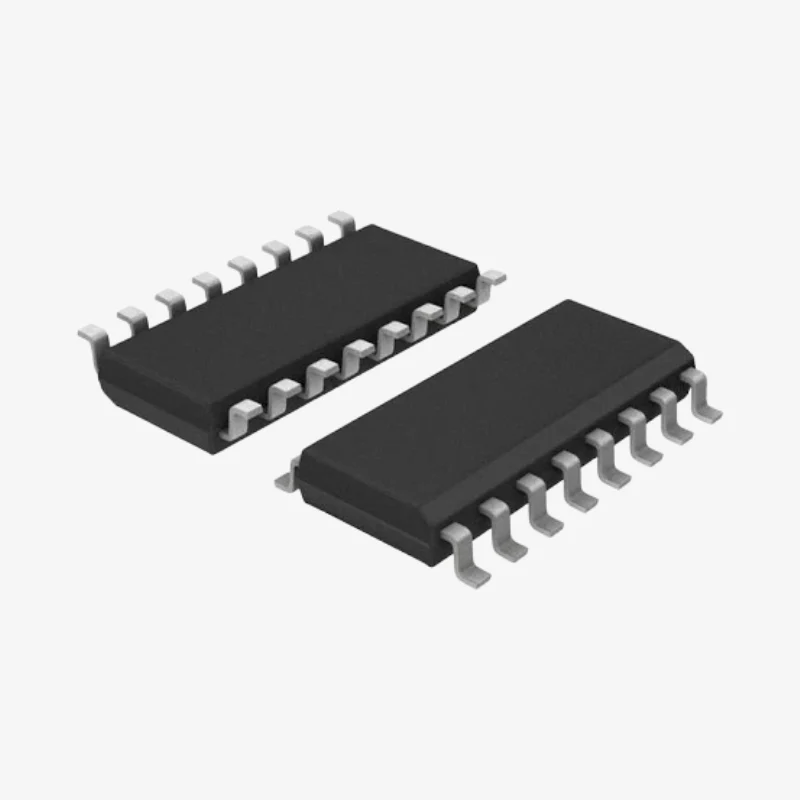

1 × 74HC595 8-Bit Shift Register IC – SOIC-16 – SMD Package
