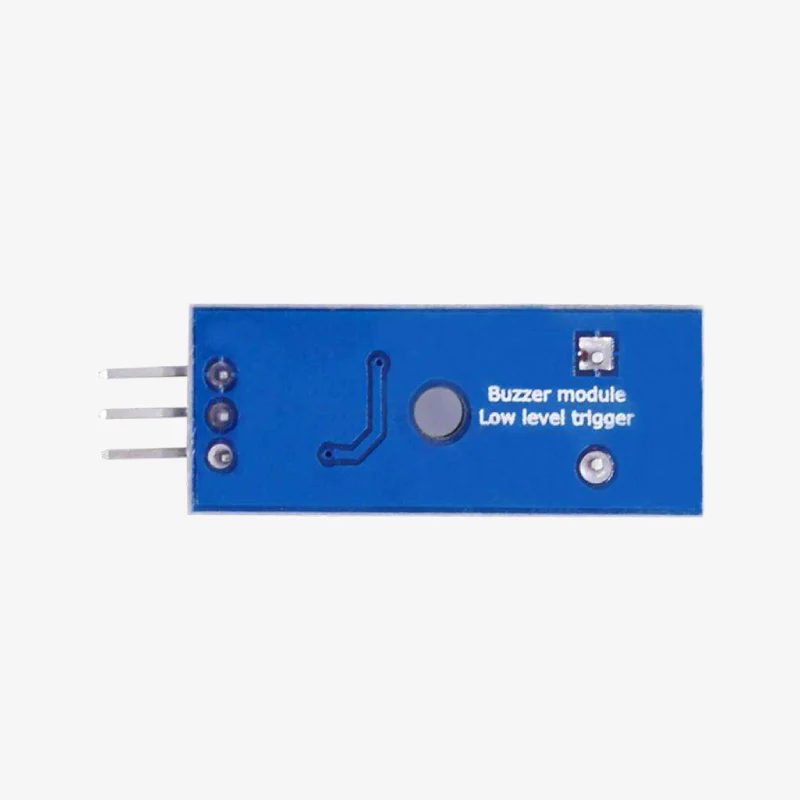

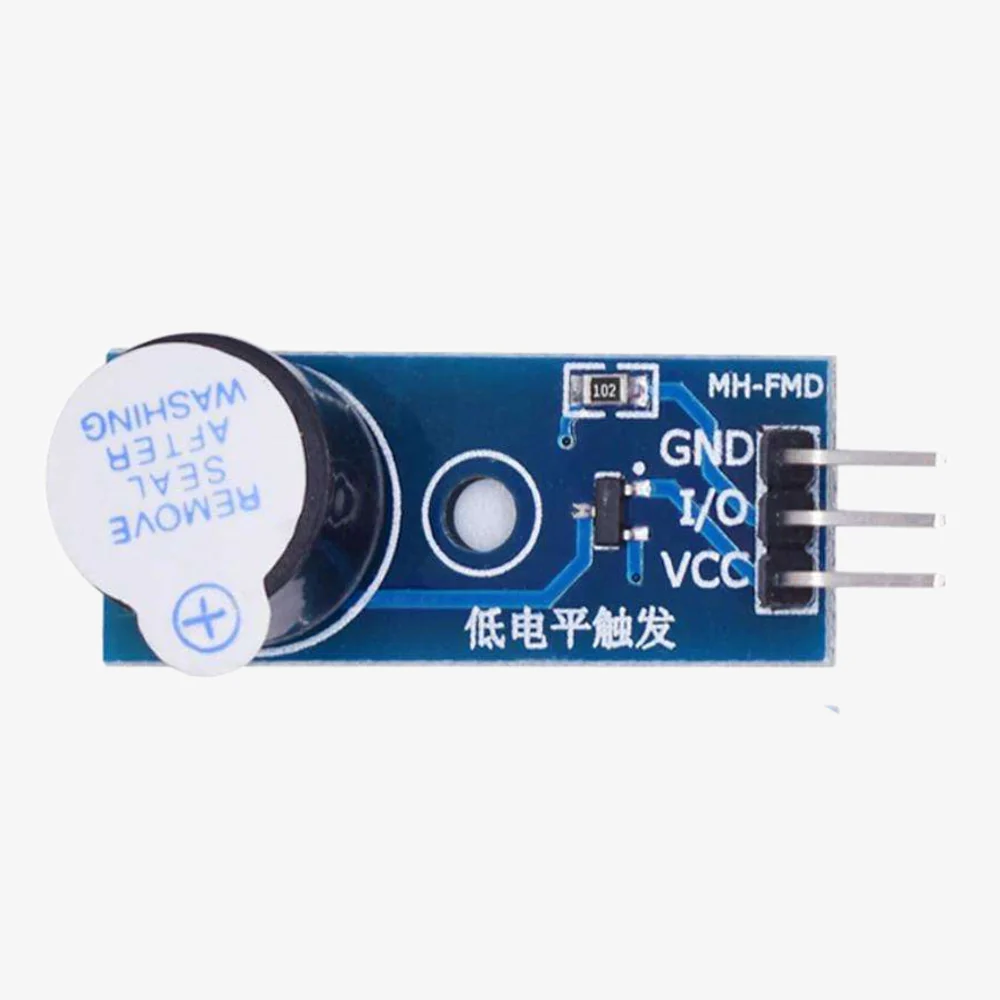

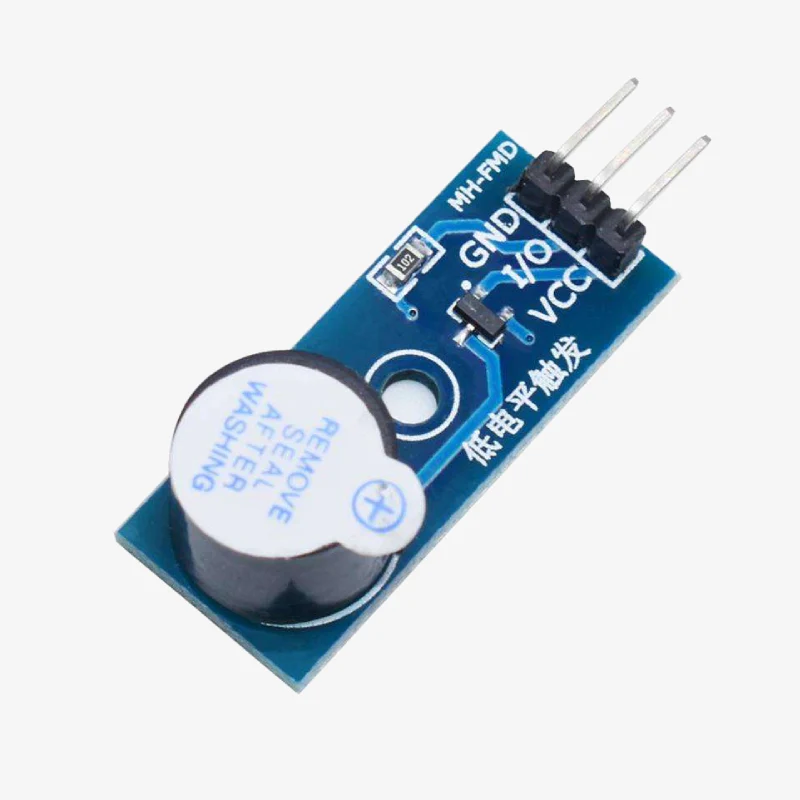

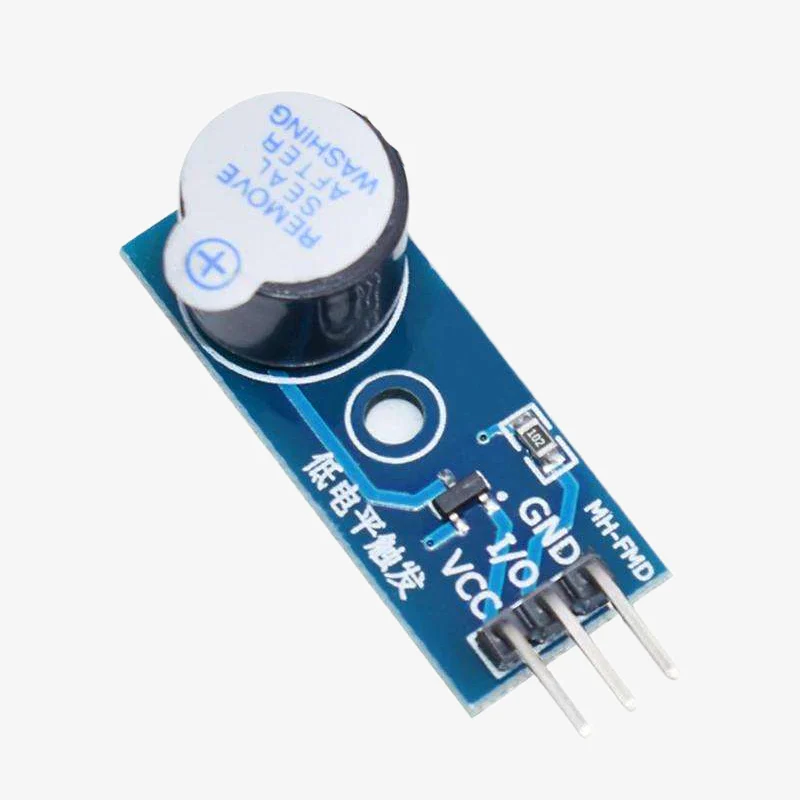

The Active Buzzer Module is a simple and easy-to-use sound-generating module designed for alarms, notifications, and user-interface feedback in electronic projects. Unlike passive buzzers, the active buzzer has a built-in oscillating source, which means it only requires a DC supply to produce a consistent sound—no external frequency signal is needed.

Features:

1. Built-in oscillation circuit for direct DC drive.
2. Produces continuous sound when powered.
3. Compatible with Arduino, ESP32, Raspberry Pi, and other controllers.
4. Simple 3-pin interface (VCC, GND, I/O).
5. LED indicator for power/signal status (on some versions).


Specifications:

• Module Type: Active Buzzer Module
• Operating Voltage: 3.3V – 5V DC
• Current Consumption: ~20mA (typical)
• Sound Output: ~85dB @ 10cm
• Frequency: ~1.5 – 2.5 kHz (fixed)
• Dimensions: 32mm × 12mm × 10mm
• Weight: 5g

Package Includes:

1 × Active Buzzer Module
