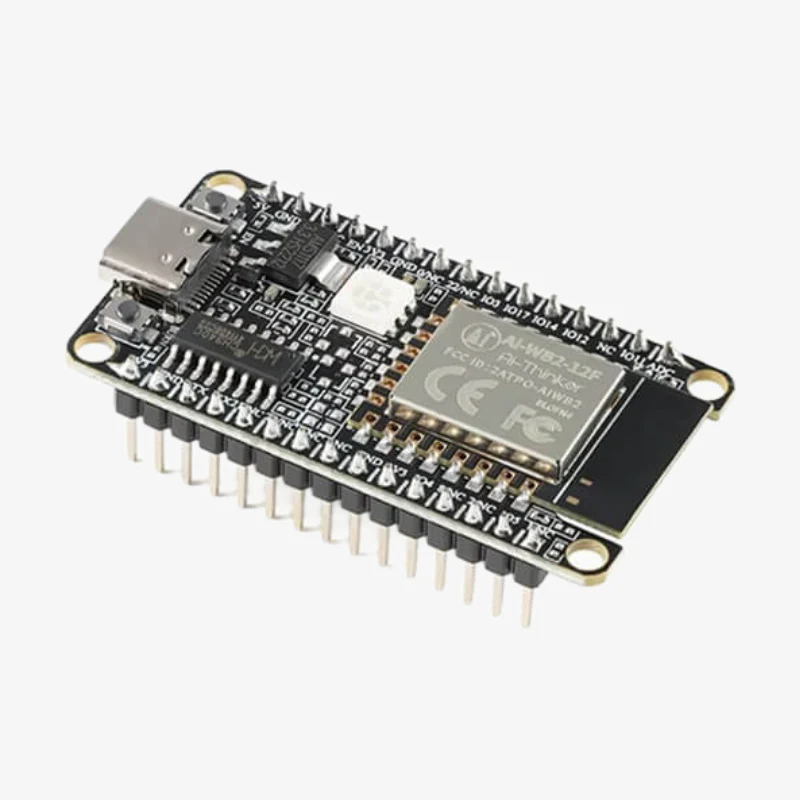

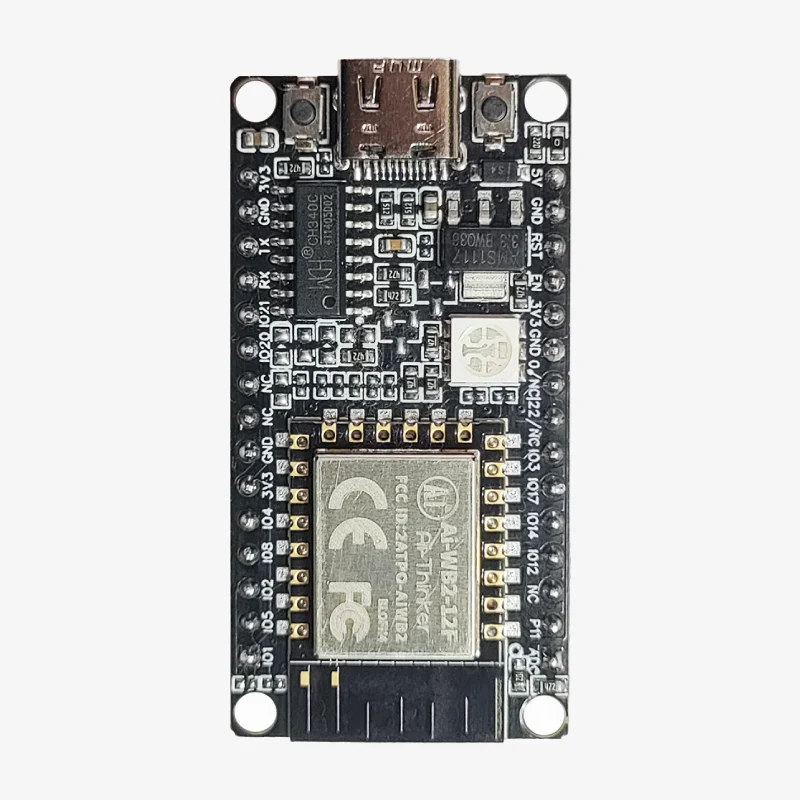

The Ai-WB2-12F Board (CH340) is a compact IoT development board based on the BL602/BL604 chipset, offering integrated Wi-Fi (2.4GHz) and Bluetooth 5.0 dual-mode wireless communication. It comes with a built-in CH340 USB-to-UART interface, making programming and debugging via USB simple and efficient. With multiple GPIOs and support for standard communication protocols, this board is ideal for IoT devices, smart home projects, wireless sensors, and embedded applications.

Features:

1. Dual wireless connectivity: Wi-Fi (2.4GHz) + Bluetooth 5.0.
2. Built-in CH340 USB-to-UART converter for easy PC connectivity.
3. Based on BL602/BL604 RISC-V SoC for powerful and efficient performance.
4. Multiple GPIOs for sensor, actuator, and peripheral interfacing.
5. Supports UART, SPI, I²C, PWM, and GPIO communication protocols.
6. Low-power design suitable for battery-powered IoT devices.
7. Compact, lightweight, and easy to integrate into embedded projects.

Specifications:

• Model: Ai-WB2-12F
• Chipset: BL602 / BL604 (RISC-V architecture)
• Wireless: Wi-Fi 2.4GHz, Bluetooth 5.0
• USB Interface: CH340 USB-to-UART bridge
• Operating Voltage: 3.0V – 3.6V
• Communication Interfaces: UART, SPI, I²C, PWM, GPIO


Package Includes:

1 × Ai-WB2-12F Wi-Fi + Bluetooth 5.0 IoT Development Board with CH340
