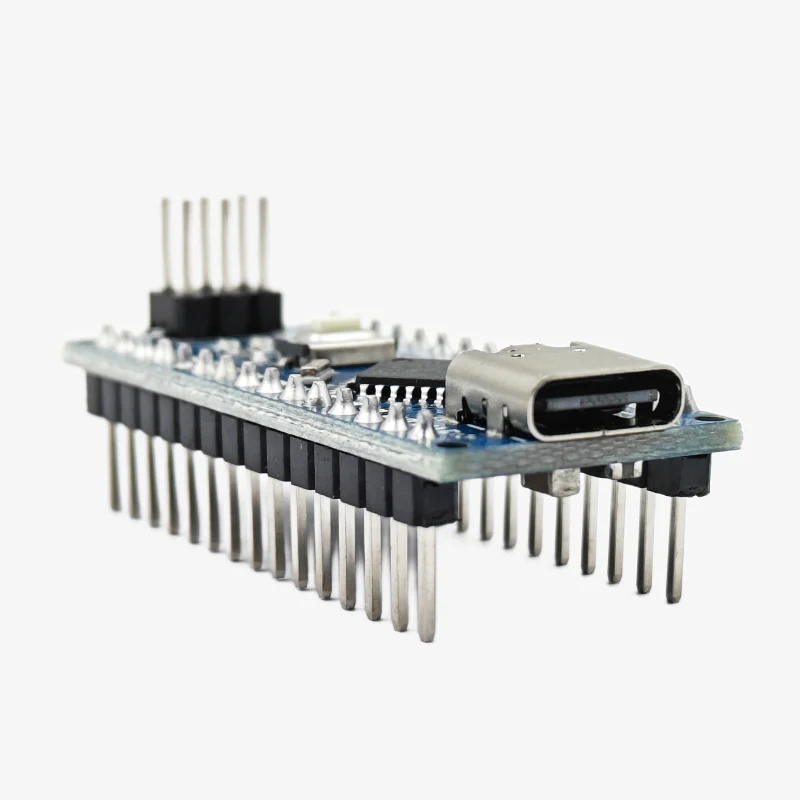

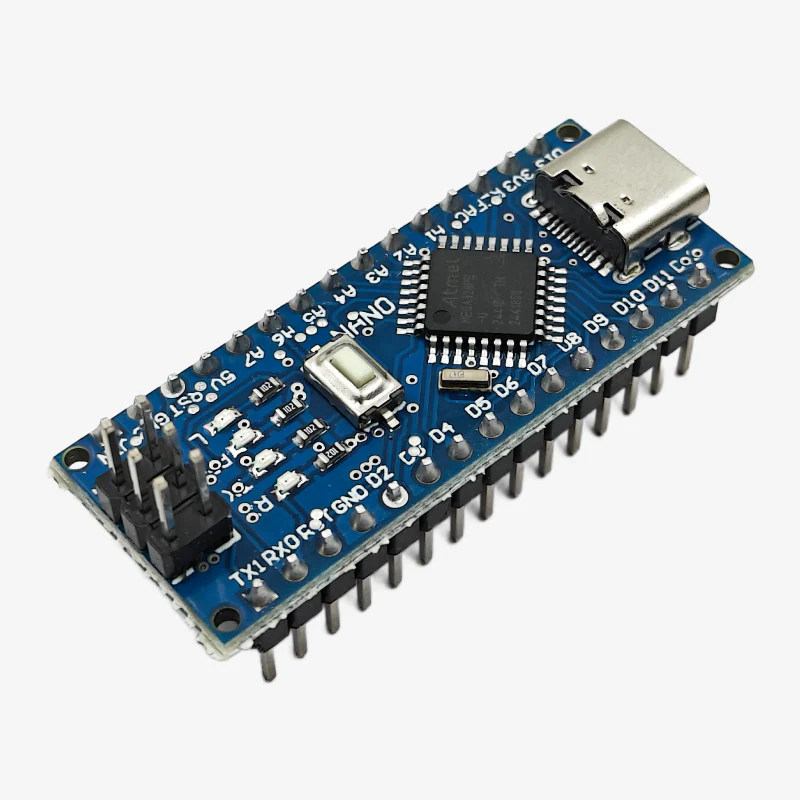

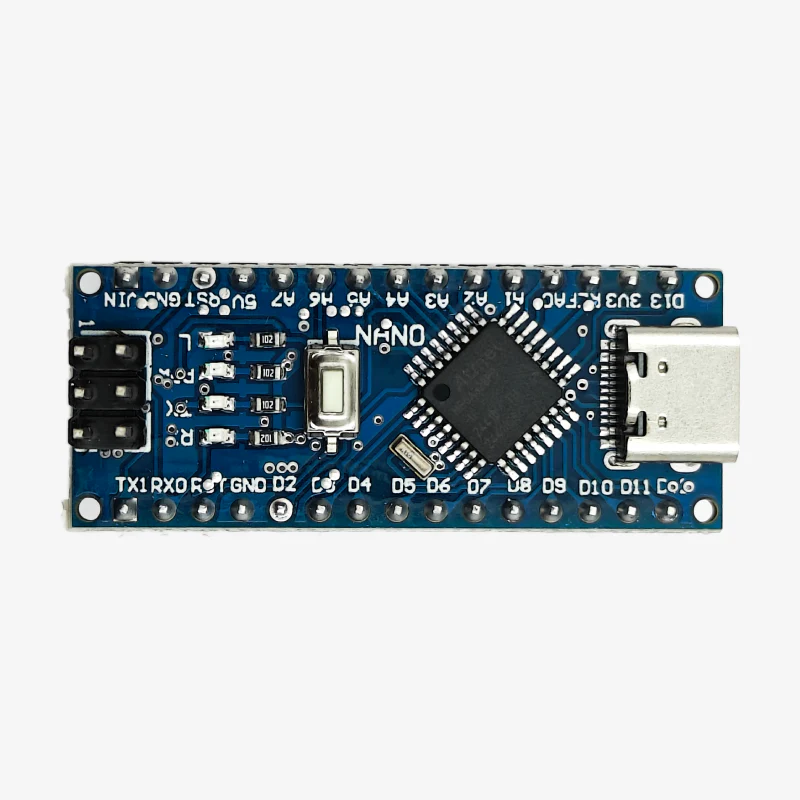

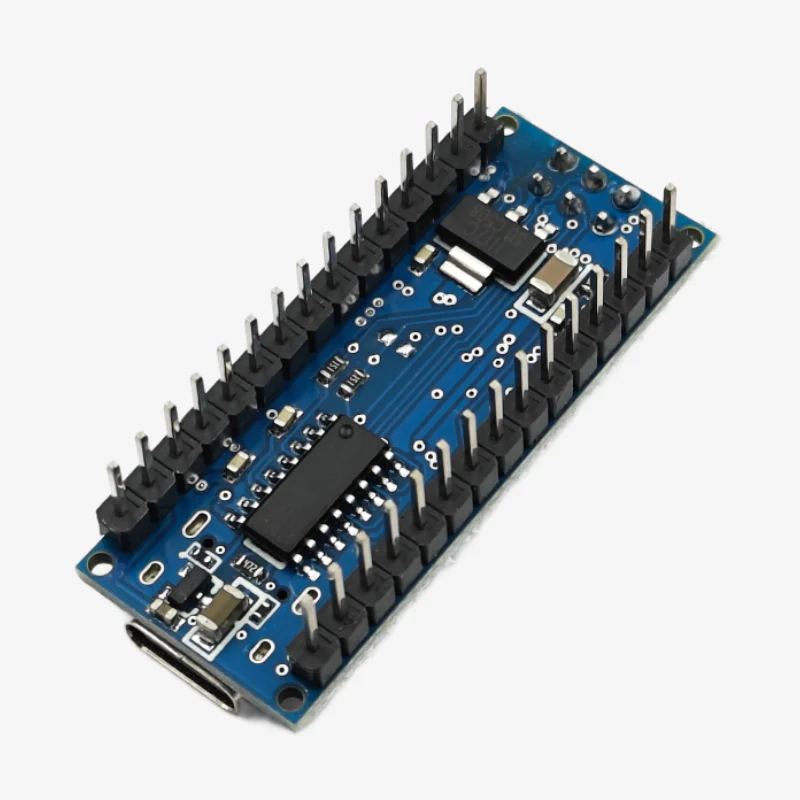

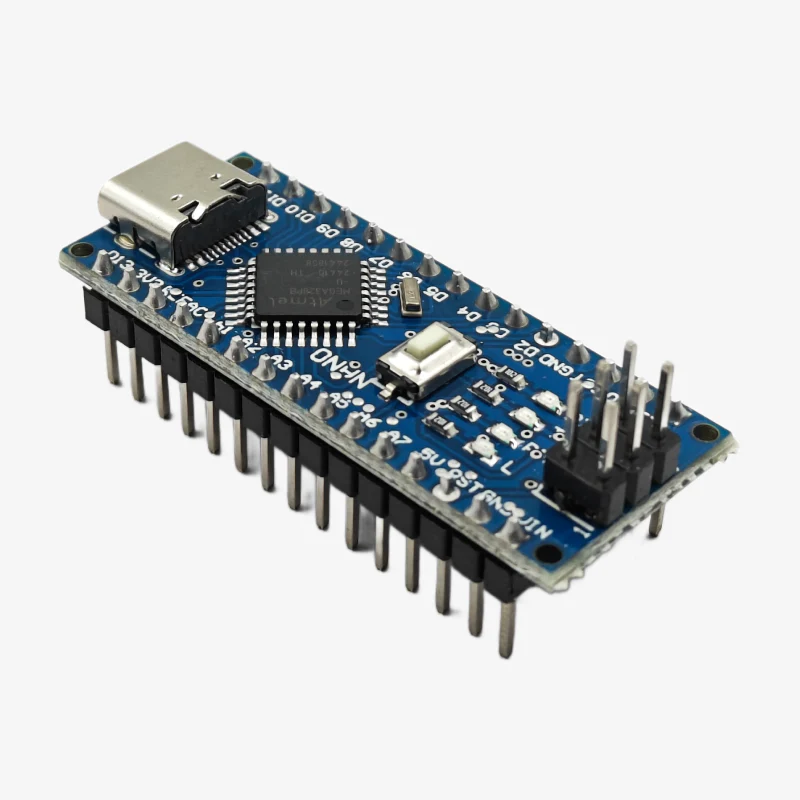

The Arduino Nano with USB Type-C is a compact and breadboard-friendly microcontroller board based on the ATmega328P chipset. This version features a modern USB Type-C connector, providing more durability and easier connection. It includes the CH340 USB-to-Serial converter for reliable PC communication and programming. Ideal for embedded electronics projects, this Nano variant maintains the same I/O layout and performance as the classic Nano but with improved connectivity.

Features of Nano:

1. Based on ATmega328P microcontroller
2. USB Type-C interface for modern connectivity
3. Uses CH340 USB to Serial converter (driver required)
4. Compact and breadboard-friendly DIP form factor
5. Supports UART, SPI, and I2C communication
6. Onboard voltage regulator for stable 5V and 3.3V supply
7. Compatible with Arduino IDE

Specifications of Nano:

• Microcontroller: ATmega328P
• USB Interface IC: CH340
• Operating Voltage: 5V
• Input Voltage (recommended): 7–12V
• Digital I/O Pins: 14 (6 PWM outputs)
• Analog Input Pins: 8
• DC Current per I/O Pin: 40 mA
• Flash Memory: 32 KB (ATmega328P), 2 KB used by bootloader
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
• USB Connector: Type-C

• Package Type: DIP (dual inline package)

Package Includes:

1 × Arduino Nano with Type-C Port Development Board
