The Arduino UNO EK (एक) R4 WiFi Starter Kit is a powerful and beginner-friendly electronics and IoT learning kit designed for modern embedded and wireless projects. Built around the original Arduino UNO R4 WiFi board, this kit combines a 32-bit Renesas Cortex-M4F microcontroller with an ESP32-S3 module for Wi-Fi and Bluetooth connectivity, along with a programmable 12×8 LED matrix. With essential components included, this kit enables hands-on learning, rapid prototyping, and IoT application development for students, makers, and educators.

Features:

1. Original Arduino UNO R4 WiFi board with onboard Wi-Fi and Bluetooth

2. 32-bit Renesas Cortex-M4F processor with ESP32-S3 connectivity module

3. 12×8 LED matrix for visual output and interactive projects

4. Supports advanced interfaces like DAC, CAN bus, and 14-bit ADC

5. USB-C programming and wide input voltage support

6. Complete starter kit for IoT, automation, and embedded learning

Specifications:

• Microcontroller: Renesas R7FA4M1AB3CFM (Cortex-M4F)

• Wireless Module: ESP32-S3 (Wi-Fi + Bluetooth)

• Operating Voltage: 5 V

• Input Voltage Range: 6–24 V

• Flash Memory: 256 kB

• SRAM: 32 kB

• EEPROM: 8 kB

• ADC Resolution: 14-bit

• Interfaces: DAC, CAN Bus, UART, I2C, SPI

• LED Matrix: 12 × 8 onboard

• Programming Interface: USB Type-C

• Breadboard Size: 400 Tie Points

• Sensor Included: DHT11 Temperature & Humidity Sensor

• Jumper Wires: Male to Male, 20 cm

• LEDs: 5 mm (Red, Green, Blue, White, Yellow)

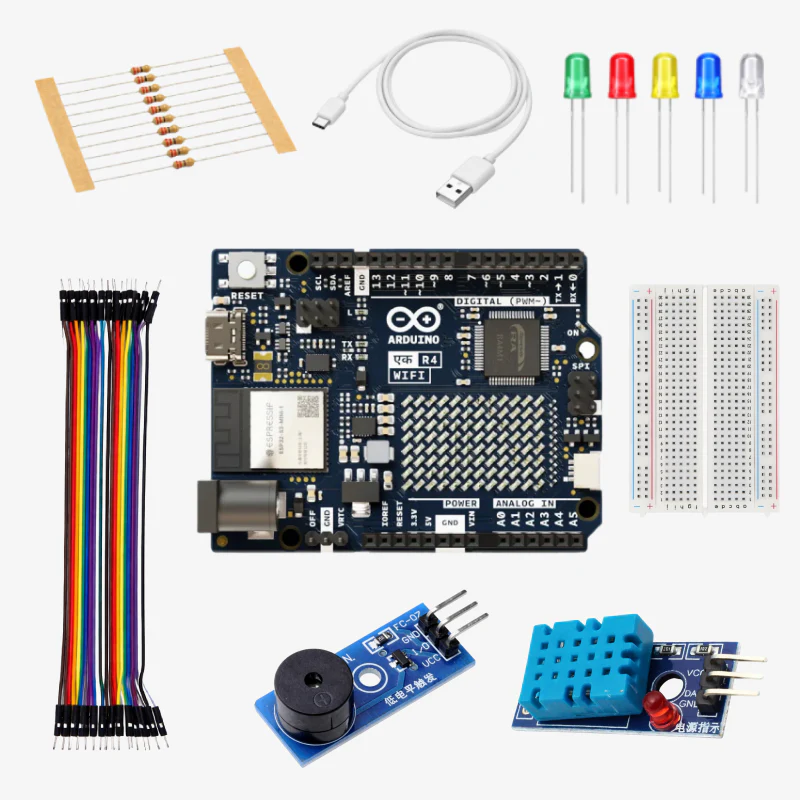

Package Includes:

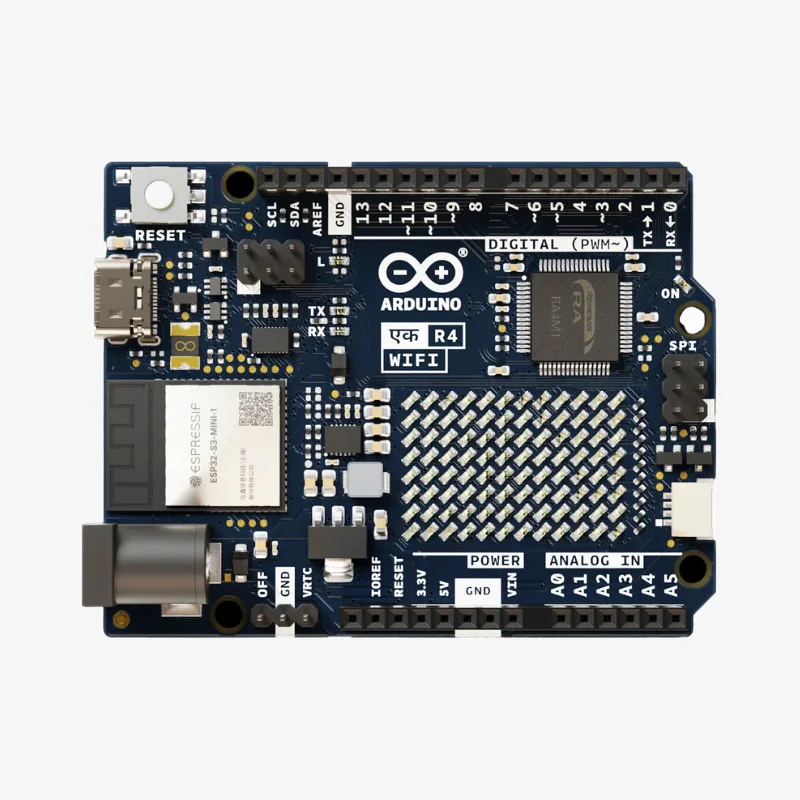

1 × Original Arduino UNO R4 WiFi Board

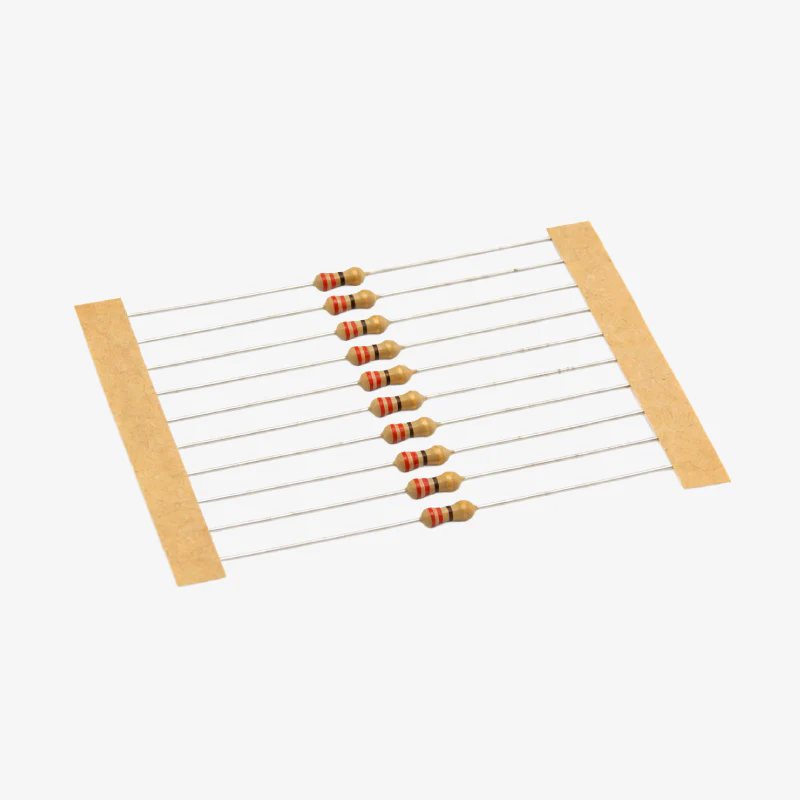

10 × 220 Ω Resistors
1 × USB Type-C Cable (1 Meter)
1 × Active Buzzer Module (3.3–5 V)
1 × 400 Tie-Point Solderless Breadboard
1 × DHT11 Temperature & Humidity Sensor Module

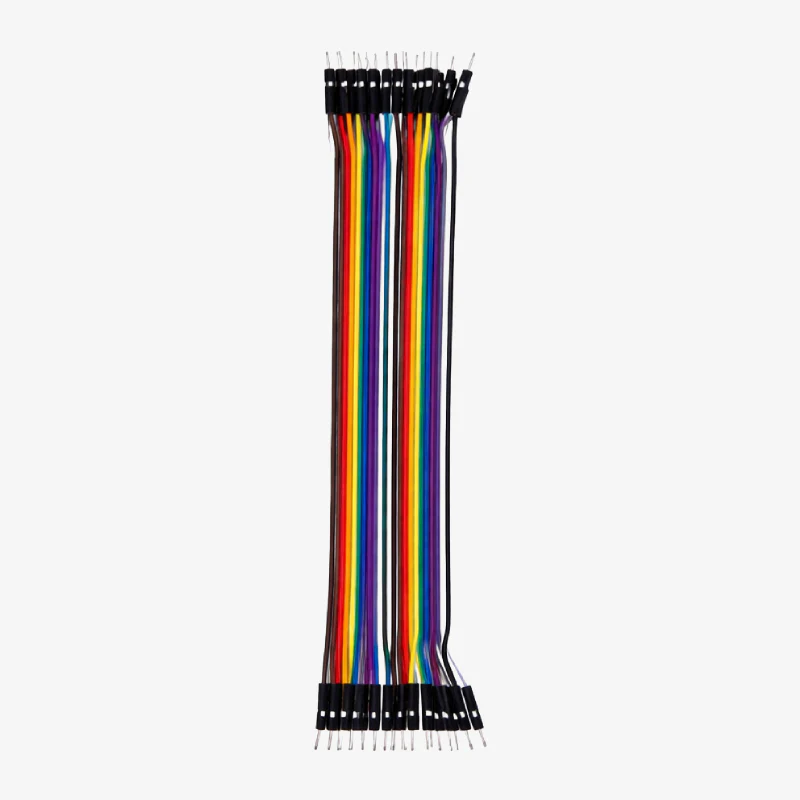

20 × Male to Male Jumper Wires
5 × 5 mm LEDs (Red, Green, Blue, White, Yellow)
