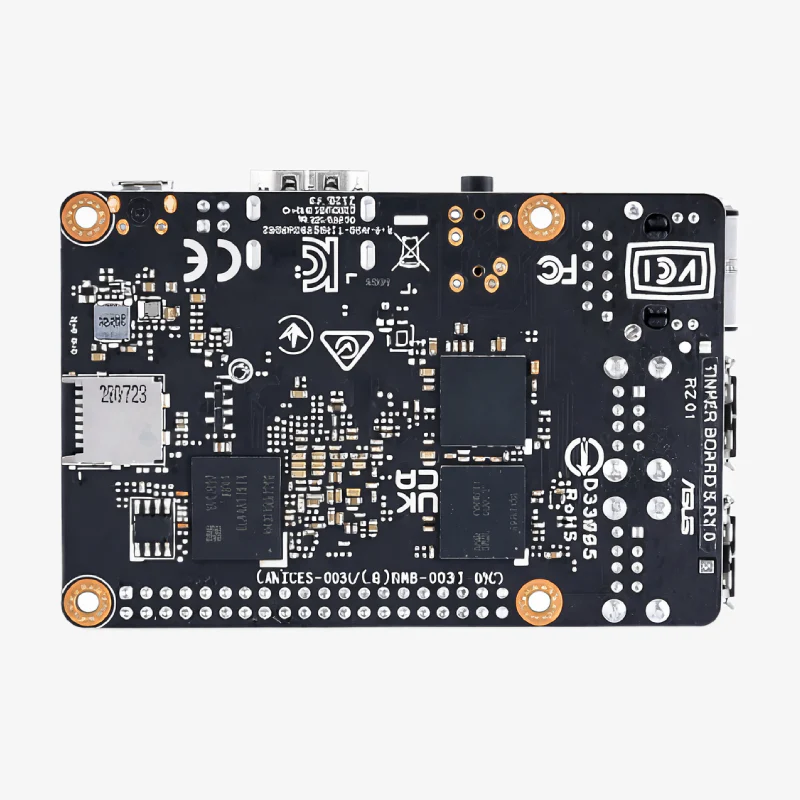

ASUS Tinker Board R2.0 with Quad-Core RK3288-CG.W Processor, 2GB DDR3 with Integrated Graphics is a powerful single-board computer designed for makers, developers, and embedded applications, featuring a quad-core ARM Cortex-A17 RK3288-CG.W processor, 2GB DDR3 memory, integrated Mali GPU with 4K video support, onboard 16GB eMMC storage, rich connectivity options, and extensive GPIO and multimedia interfaces, making it suitable for IoT projects, robotics, multimedia applications, and educational development platforms.

Features:

1. Quad-core RK3288-CG.W ARM Cortex-A17 processor
2. Integrated Mali GPU with 4K video decoding support
3. 2GB DDR3 memory for smooth multitasking
4. 16GB onboard eMMC storage
5. Dual wireless connectivity with Wi-Fi and Bluetooth
6. Rich I/O support with GPIO, SPI, I2C, UART, and PWM
7. Compact form factor suitable for embedded projects

Specifications:

• Product Type: Single Board Computer
• Processor: Quad-Core RK3288-CG.W
• Memory: 2GB DDR3
• Storage: 16GB eMMC
• Expandable Storage: Micro SD card slot
• LAN: Gigabit Ethernet
• Wireless: 802.11 b/g/n Wi-Fi, Bluetooth 4.2 + EDR
• Audio: RTL ALC4030U Codec
• USB Ports: 4 × USB 2.0
• Internal I/O Ports: 40-pin GPIO header, 2-pin header, MIPI DSI, MIPI CSI

• Internal I/O:

  • 1 × 40-pin GPIO header (up to 28 GPIO)

  • Up to 2 × SPI, 2 × I²C, 4 × UART, 2 × PWM

  • 1 × PCM / I²S

  • Power pins: 5V, 3.3V, GND

  • 1 × 2-pin header (PWM, S/PDIF)

  • 1 × 15-pin MIPI DSI

  • 1 × 15-pin MIPI CSI

• Form Factor: 3.37 × 2.125 inches (8.55 × 5.4 cm)
• Weight: 55 g
• Operating Temperature: 0°C to 60°C
• Operating System Support: Debian 10, Android 11
• Applications: IoT development, robotics, multimedia systems, embedded computing, education, prototyping

Package Includes:

1 × ASUS Tinker Board R2.0
2 × Passive Heatsinks
1 × User Manual
