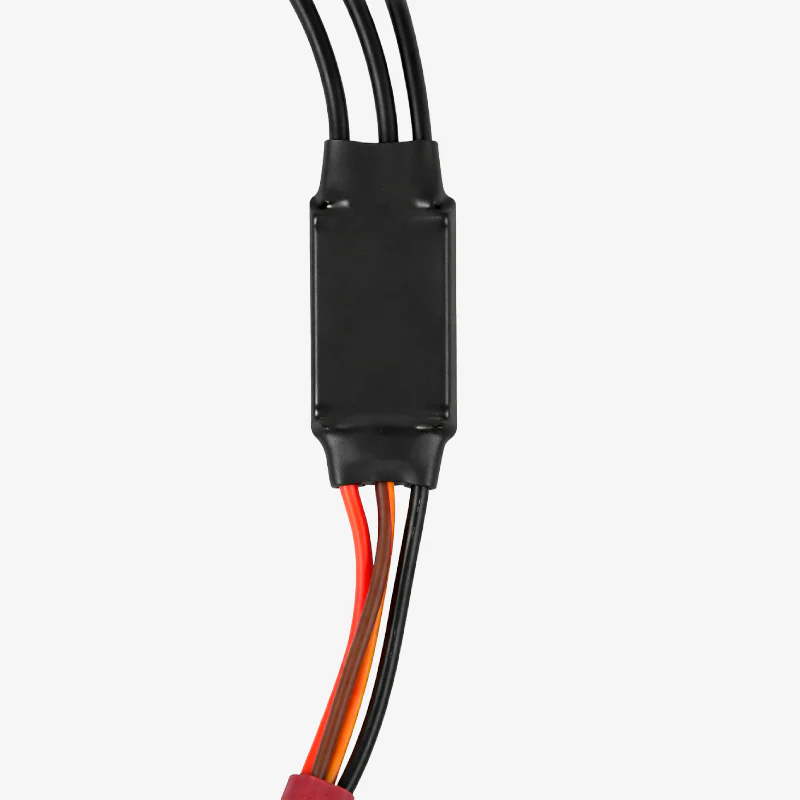

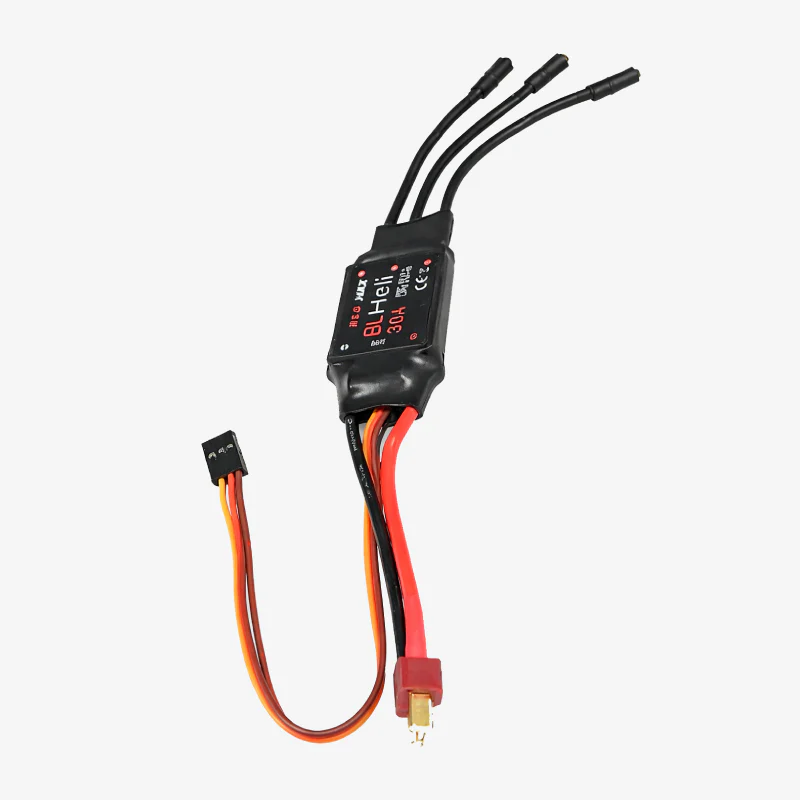

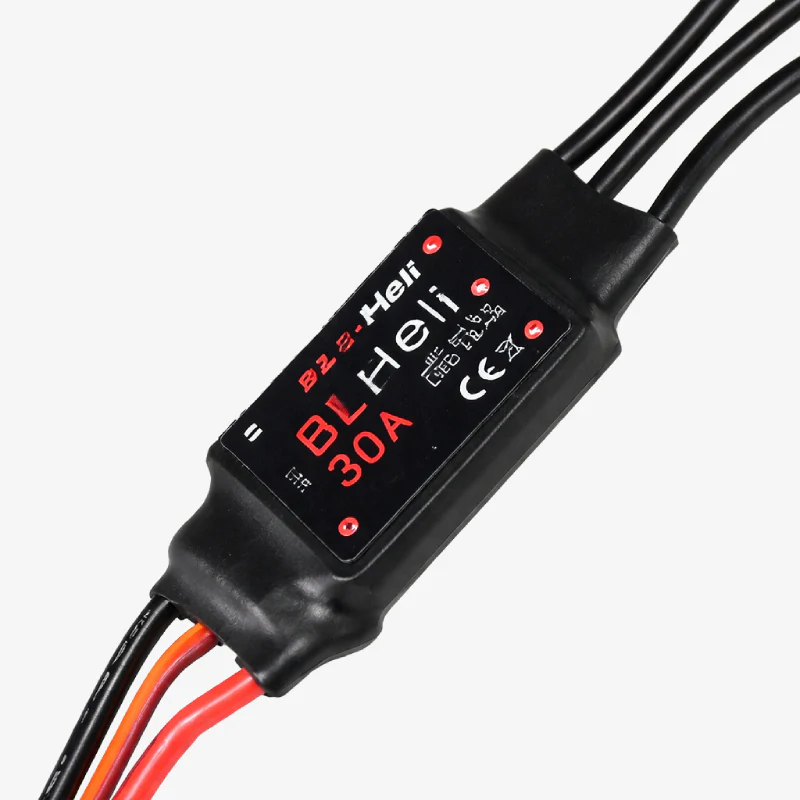

BLS-MAX BLHeli Series 30A ESC – Brushless DC Motor Electronic Speed Controller with Oneshot (Original) is a high-performance electronic speed controller designed for precise and responsive control of brushless DC motors, featuring BLHeli firmware with Oneshot support, integrated 5V/2A BEC, high-speed motor handling up to 210,000 RPM (2-pole), and reliable current capacity, making it ideal for multirotors, RC planes, and other high-performance RC and DIY applications.

Features:

1. BLHeli firmware for smooth and efficient motor control.
2. Supports Oneshot protocol for ultra-fast throttle response.
3. 30A continuous current with 40A burst capability.
4. Integrated BEC provides stable 5V/2A power output.
5. Supports 2S to 4S LiPo battery configurations.
6. High-speed motor compatibility for multi-pole BLDC motors.
7. Compact and lightweight design for RC and drone builds.

Specifications:

• Product Type: Electronic Speed Controller (ESC)
• Model: BLS-MAX BLHeli Series 30A
• Motor Type: Brushless DC Motor
• Firmware: BLHeli
• Signal Protocol: PWM / Oneshot
• Constant Current: 30A
• Burst Current: 40A
• BEC Output: 5V / 2A
• Supported Battery: 2S–4S LiPo
• Maximum Motor Speed:
  210,000 RPM (2-pole)
  70,000 RPM (6-pole)
  35,000 RPM (12-pole)
• Dimensions: 52 × 26 × 7 mm
• Weight: 28 g
• Color: Black
• Applications: BLDC motors, multirotors, RC planes, drones, DIY RC projects

Package Includes:

1 × BLS-MAX BLHeli Series 30A ESC (Original)
