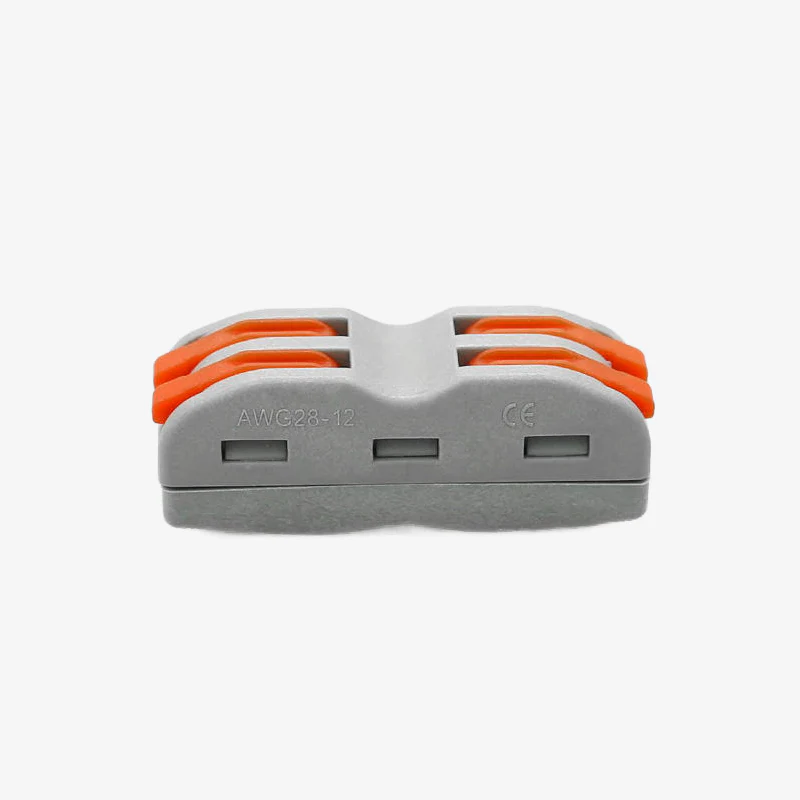

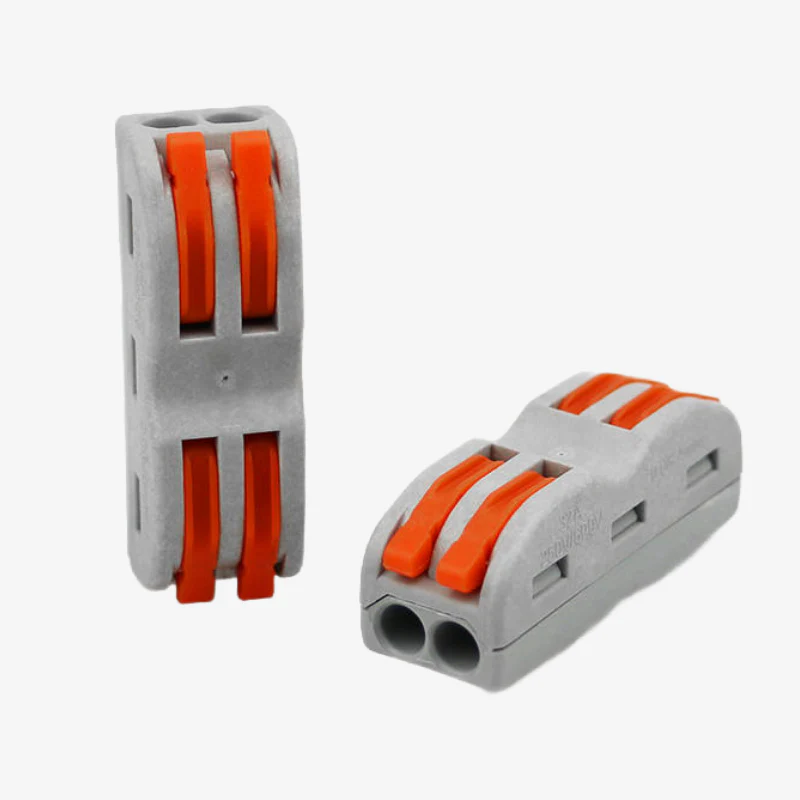

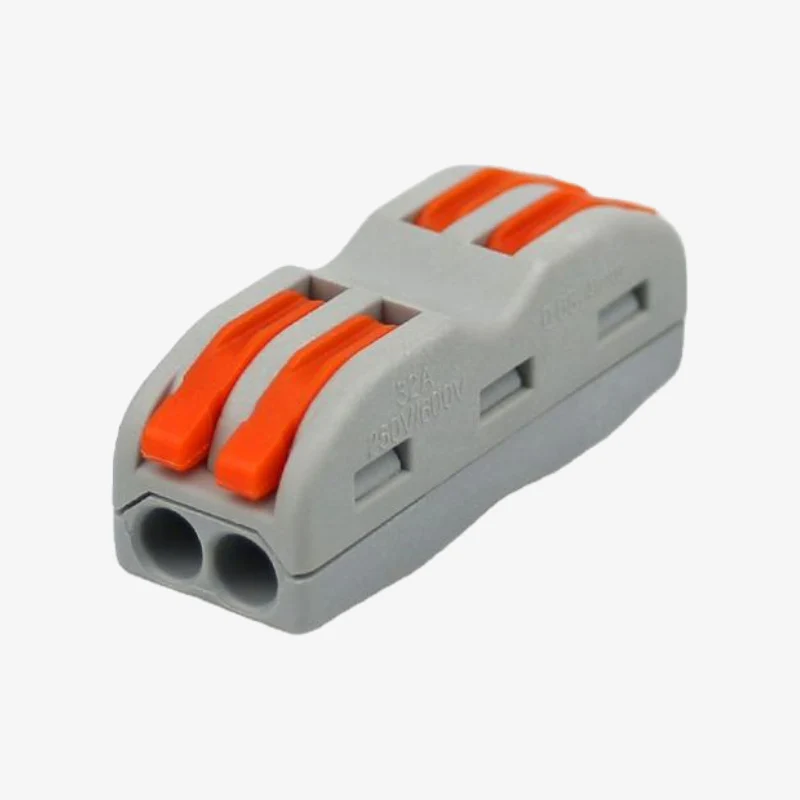

The CH-812 SPL-2 Pole Wire Connector is a compact and efficient terminal block designed for quick and secure wire connections. Featuring a spring lock lever mechanism, this connector supports tool-free installation, allowing easy reuse and reliable clamping of wires ranging from 0.08mm² to 2.5mm² in size. It is ideal for domestic, industrial, and electrical panel wiring.

This 2-pole connector is capable of handling up to 32A at 220V, making it suitable for connecting lighting systems, switches, power lines, or any two-wire AC line connections. The transparent housing provides visibility for wire placement, and the lever mechanism ensures a tight, vibration-resistant connection.

Features of CH-812 SPL-2 Pole Wire Connector:

1. Spring-loaded lever design for easy, tool-free wire insertion and removal
2. Supports single-strand and multi-strand wire (0.08mm² – 2.5mm²)
3. Compact design for tight electrical boxes and enclosures
4. Flame-retardant insulation body with high mechanical strength
5. Transparent body for visual inspection of wire connections
6. Strong grip ensures stable and vibration-proof connection
7. Reusable and ideal for DIY and professional installations

Specifications of CH-812 SPL-2 Wire Connector:

• Model: CH-812 SPL-2
• Type: 2-Pole Wire Connector
• Connection Method: Spring Lock Lever
• Rated Voltage: 220V AC
• Rated Current: 32A
• Supported Wire Size: 0.08mm² – 2.5mm² (28–14 AWG)
• Material: Flame-retardant PC (Polycarbonate)
• Operating Temperature: -40°C to +85°C

• Application: Lighting, household wiring, control panels, etc.

Package Includes:

1 × CH-812 SPL-2 Pole Wire Connector with Spring Lock Lever – 220V, 32A
