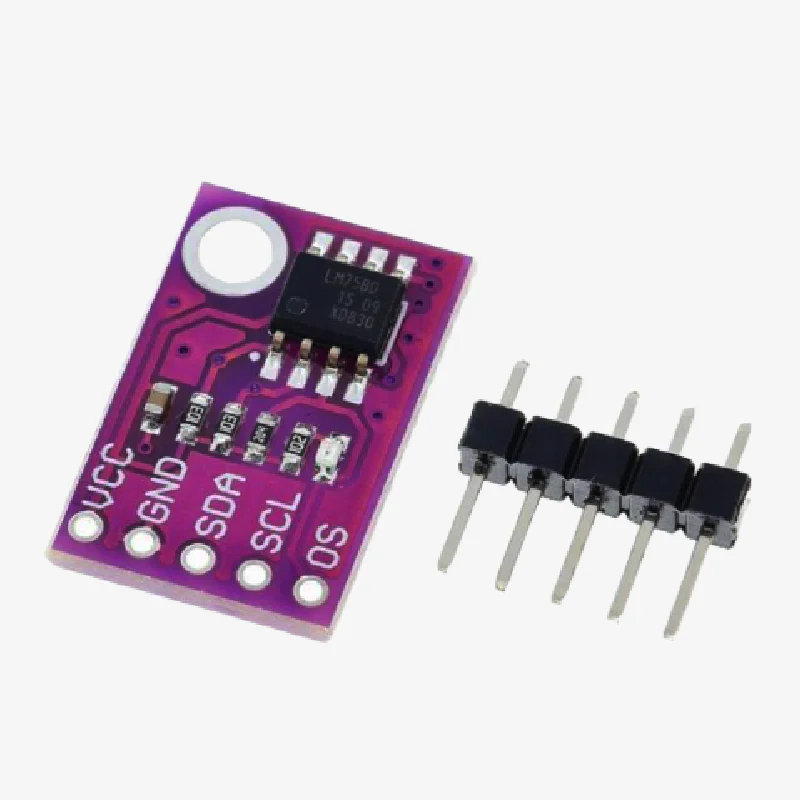

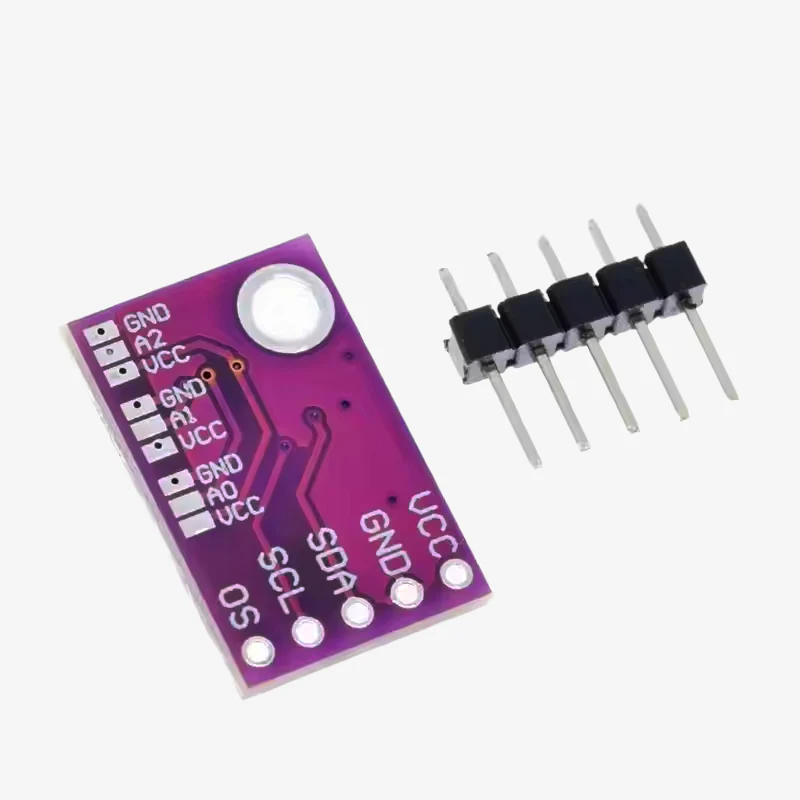

The CJMCU-75 LM75 Temperature Sensor Module is a digital temperature sensor with an I2C (Inter-Integrated Circuit) interface, designed for accurate temperature measurements. It provides high-precision temperature readings and supports over-temperature detection with a programmable thermal shutdown feature. The module is suitable for applications like environmental monitoring, industrial automation, and smart home systems.

Features of CJMCU-75 - LM75 I2C Temperature Sensor Module:

• Digital temperature sensing with an integrated LM75 sensor
• I2C interface for easy communication with microcontrollers
• Wide operating voltage range for compatibility with various systems
• Temperature resolution of 0.125°C for precise readings
• Over-temperature protection with programmable threshold
• Low power consumption for battery-powered applications
• Compact module with mounting holes for easy installation

Specifications of CJMCU-75 - LM75 I2C Temperature Sensor Module:

• Operating Voltage: 2.8V - 5.5V DC
• Temperature Measurement Range: -55°C to +125°C
• Accuracy: ±2°C (from -25°C to +100°C)
• Resolution: 0.125°C per bit
• Communication Interface: I²C (up to 400kHz)
• Default I²C Address: 0x48 (configurable)
• Over-Temperature Shutdown: Programmable from -55°C to +125°C
• Power Consumption: Low-power mode supported
• Dimensions: Compact design for embedded applications

Package Includes:

1 × CJMCU-75 LM75 I2C Temperature Sensor Module
