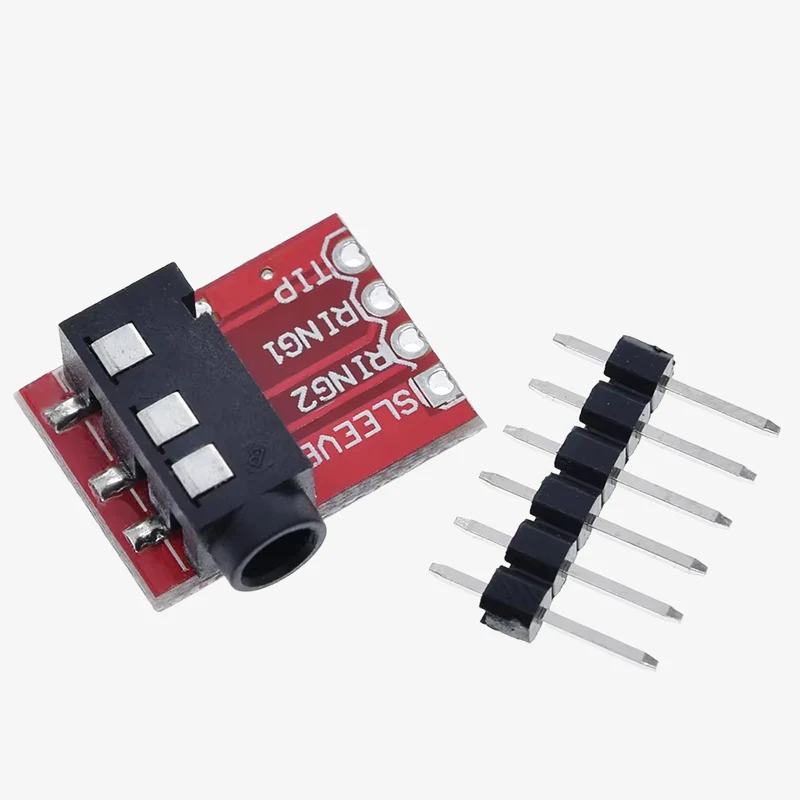

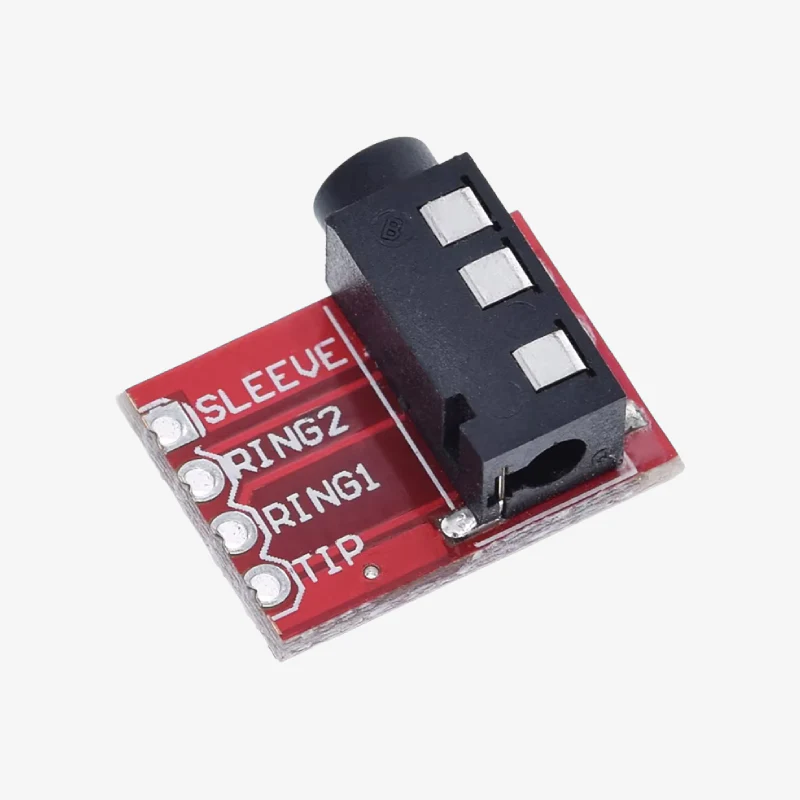

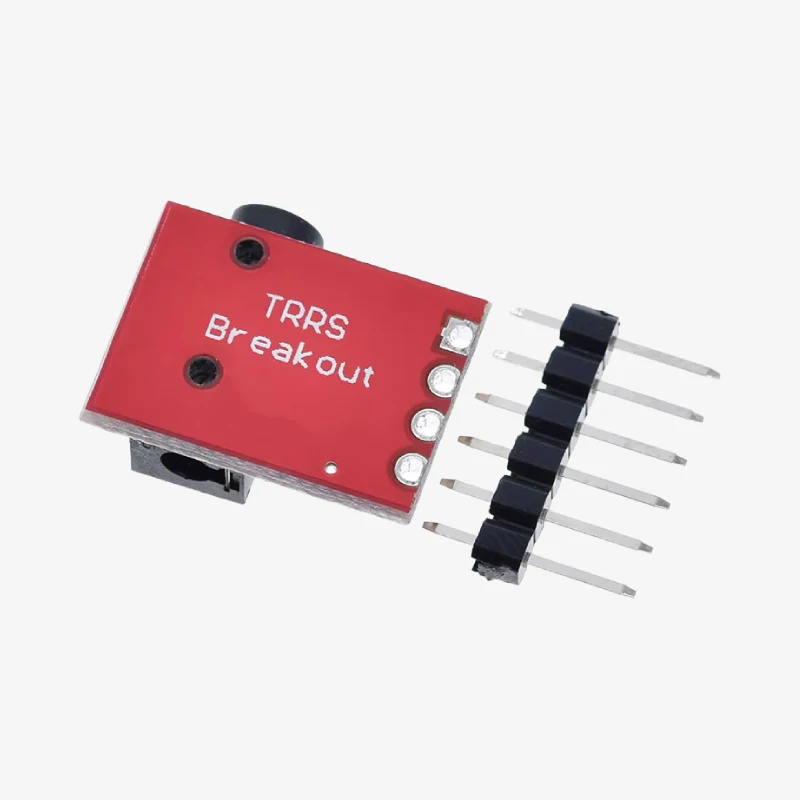

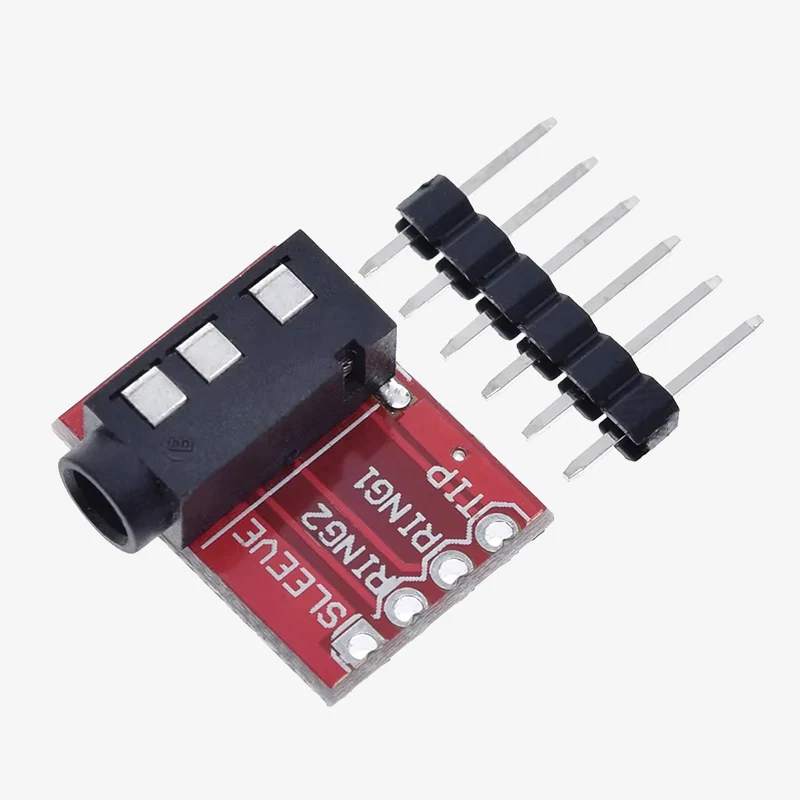

The CJMCU-TRRS 3.5mm Jack AV Stereo Module is a compact breakout board designed for audio interfacing via a 4-pole TRRS (Tip-Ring-Ring-Sleeve) connector. This module separates the signals into Left Audio, Right Audio, Microphone, and Ground, making it ideal for applications involving AV communication, audio playback, mobile headset jacks, and Raspberry Pi-based AV projects. Its compact form and easy-to-use pinout make it perfect for prototyping and DIY audio/video electronics.

Features of CJMCU-TRRS 3.5mm Jack AV Stereo Module:

1. Breakout module for 4-pole 3.5mm TRRS jacks
2. Access to Left Audio, Right Audio, Video/Mic, and Ground
3. Compatible with audio and video applications, including Raspberry Pi and smartphones
4. Simple, compact design for breadboard or PCB integration
5. Great for stereo output and microphone or composite video input/output projects

Specifications of CJMCU-TRRS 3.5mm Jack AV Stereo Module:

• Connector Type: 3.5mm TRRS (Tip-Ring-Ring-Sleeve)
• Signal Outputs: Left Audio, Right Audio, Video/Mic, Ground
• Voltage Compatibility: 3.3V to 5V logic systems
• Mounting Type: Through-hole/Solderable pads
• Board Dimensions: Approx. 15mm x 15mm
• Ideal for: Audio-visual signal breakout, Raspberry Pi, Arduino, DIY audio projects

Package Includes:

1 × CJMCU-TRRS 3.5mm Jack AV Stereo Module
