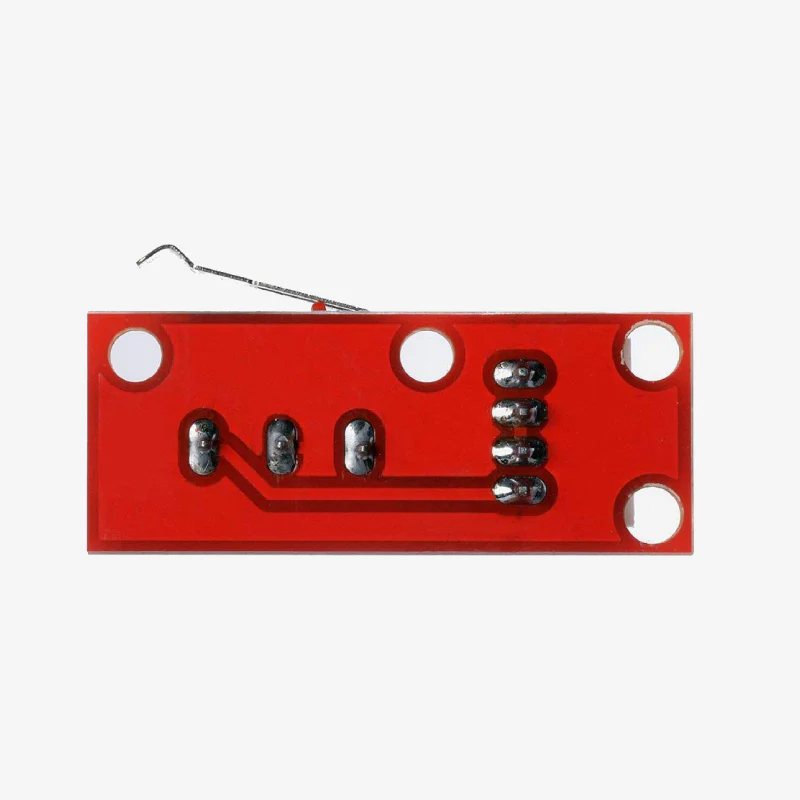

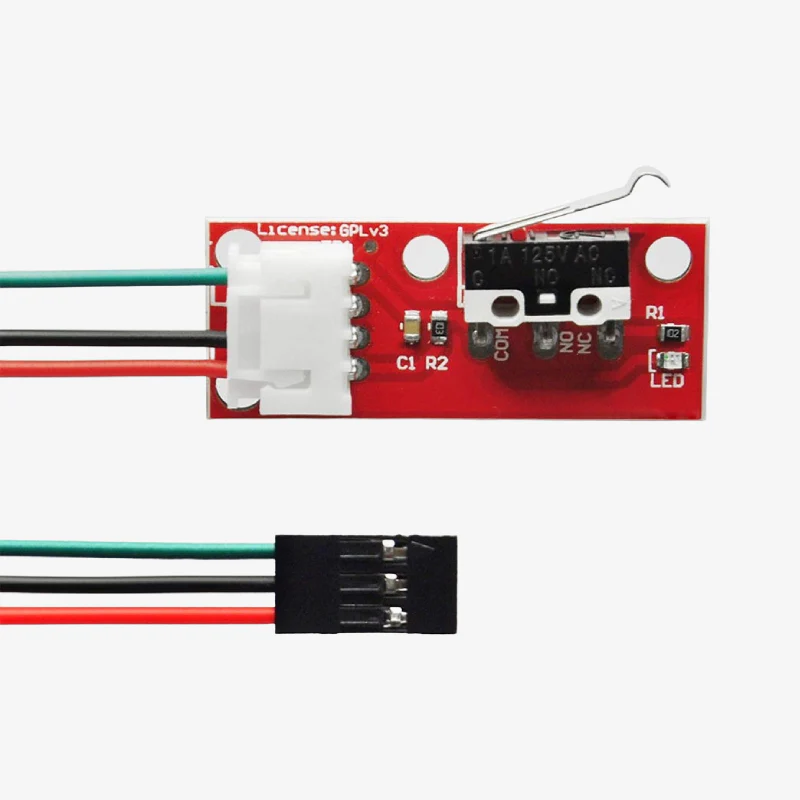

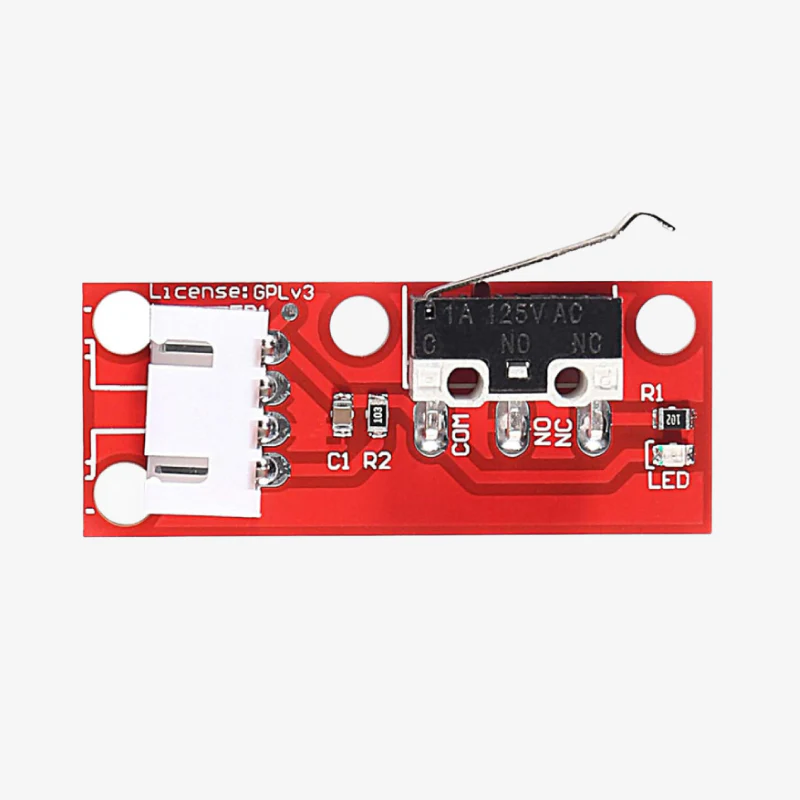

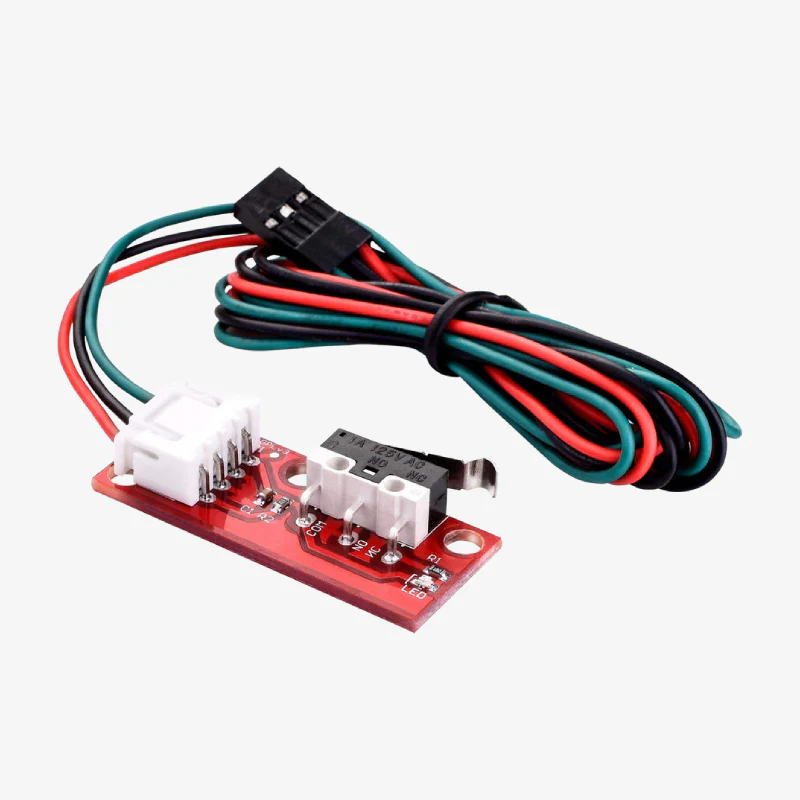

The CNC 3D Printer Mech Endstop Switch is a reliable mechanical limit switch module designed for use in 3D printers, CNC machines, and other automated systems. It functions as a position sensor to detect the end of movement axes and prevent over-travel, protecting motors and structural components. This endstop switch is compatible with popular 3D printer control boards like RAMPS and works seamlessly with firmware like Marlin.

Features of CNC 3D Printer Mech Endstop Switch:

1. Compact mechanical limit switch module with high accuracy
2. Plug-and-play with 3-pin interface (Signal, VCC, GND)
3. Compatible with most open-source 3D printer boards including RAMPS 1.4
4. Provides precise axis positioning and repeatable performance
5. Durable mechanical switch for long service life
6. Comes pre-soldered and with Dupont-style cables for easy installation

Specifications of CNC 3D Printer Mech Endstop Switch:

• Switch Type: Mechanical (NO/NC configurable via firmware)
• Operating Voltage: 5V
• Interface: 3-pin (Signal, VCC, GND)
• Cable Length: Approx. 70cm
• Mounting Holes: Compatible with standard 3D printer frames
• Dimensions: Approx. 28mm x 20mm

Package Includes:

1 × CNC 3D Printer Mech Endstop Switch Module
1 × 3-Pin Dupont Cable
