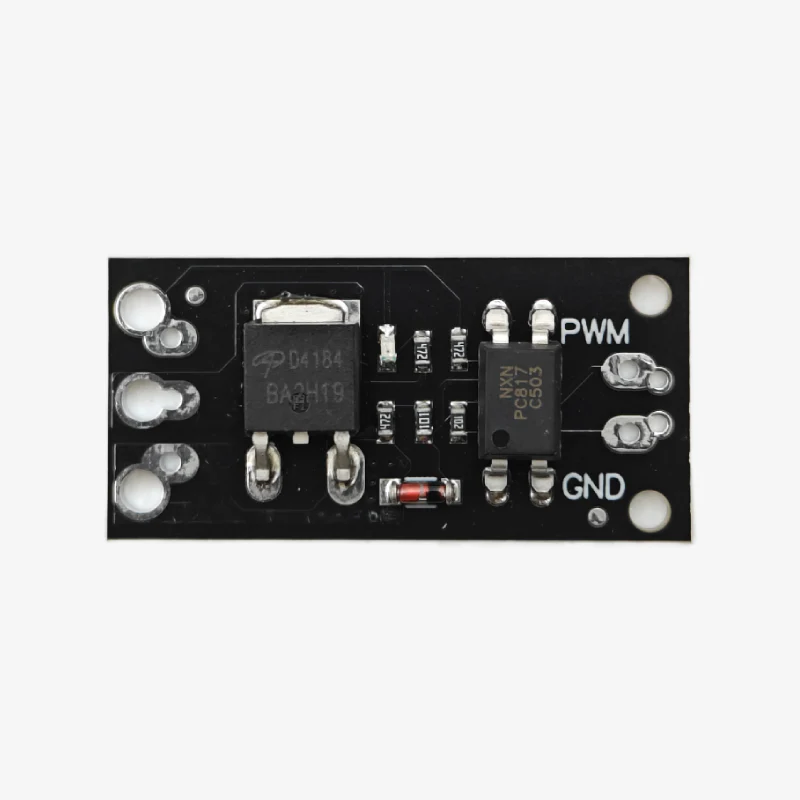

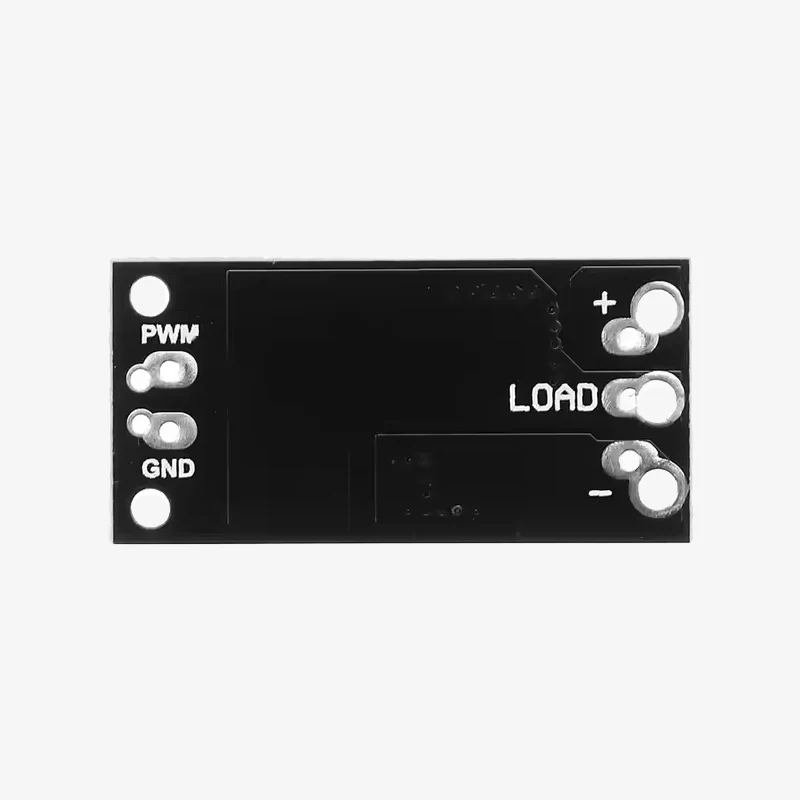

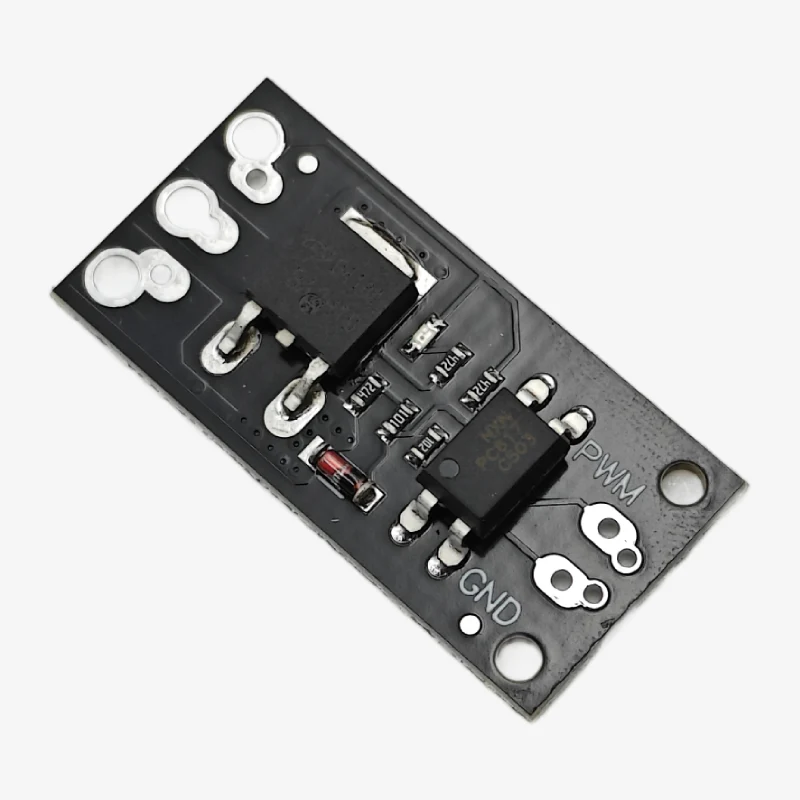

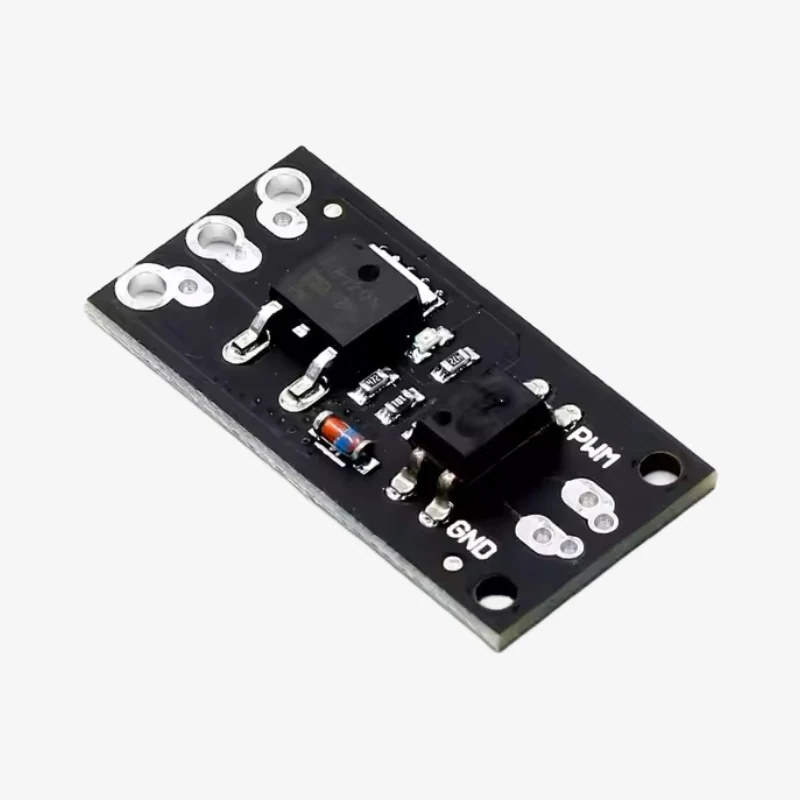

The D4184 MOSFET Control Module is a highly efficient solid-state switching module designed to replace traditional mechanical relays. It features a D4184 MOSFET, which enables fast and reliable switching for high-power loads with minimal heat dissipation. This module is ideal for motor control, LED dimming, heater control, and other DC switching applications.

Features of D4184 MOSFET Control Module:

1. Replaces mechanical relays with a more efficient MOSFET switch.
2. Supports PWM control, making it ideal for dimming and speed control applications.
3. Low on-resistance (Rds ON ≤ 5mΩ) ensures minimal power loss.
4. Optocoupler isolation for safe and reliable operation.
5. Compatible with microcontrollers like Arduino, Raspberry Pi, and STM32.

Specifications of D4184 MOSFET Control Module:

• MOSFET Model: D4184
• Input Voltage (Control Signal): 3.3V - 20V DC
• Load Voltage: 5V - 36V DC
• Load Current: Up to 10A
• Trigger Signal: Low-level trigger
• Output Type: Open-drain MOSFET switch
• Dimensions: Compact and easy to integrate into circuits

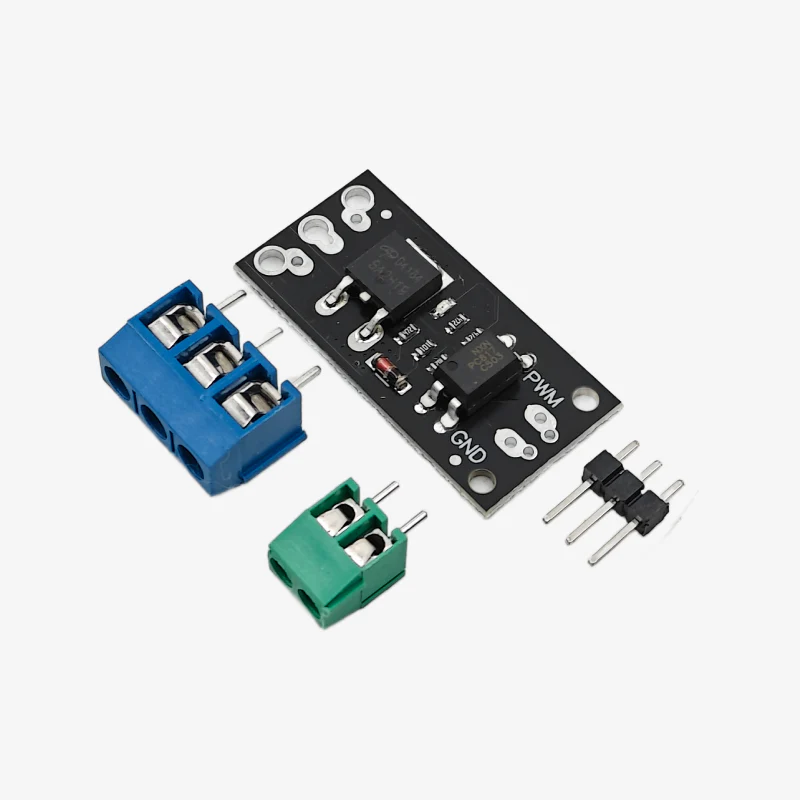

Package Includes:

1 × D4184 MOSFET Control Module
