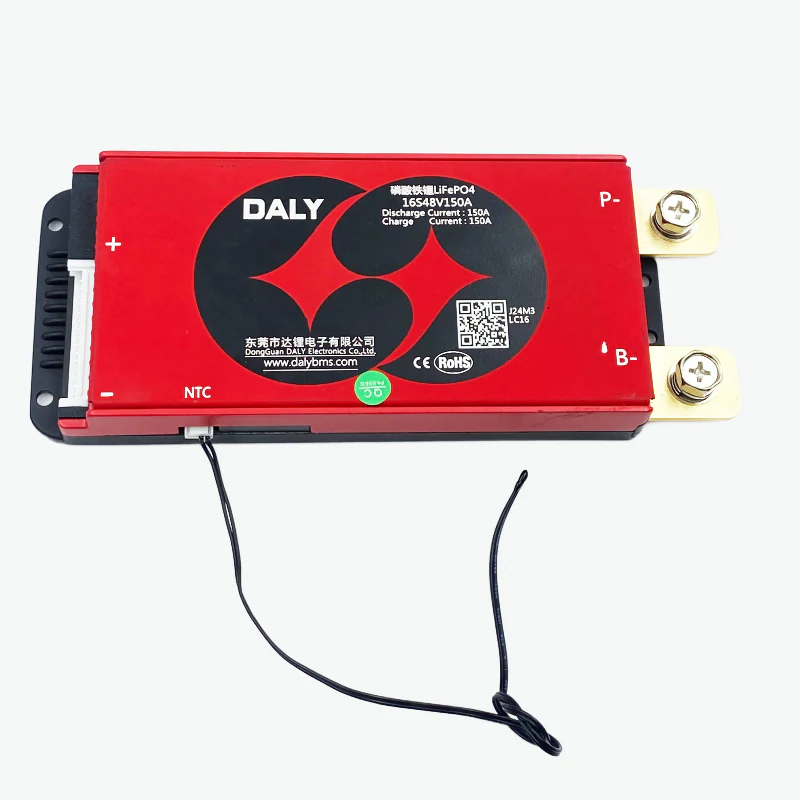

DALY LiFePO4 16S 48V 150A Waterproof Battery Management System - BMS Protection Board is designed to protect and manage 16S LiFePO4 battery packs with high current capability and reliable waterproof performance. Ideal for electric vehicles, solar storage systems, and high-power battery applications.

Features:

1. Supports 16S LiFePO4 Battery Packs
2. High Current Handling up to 150A
3. Waterproof Design for Outdoor Use
4. Built-in Cell Balancing Function
5. Overcharge Protection
6. Over Discharge Protection
7. Overcurrent and Short Circuit Protection
8. Stable and Reliable Performance

Specifications:

Parameter	Value
Brand	DALY
Battery Type	LiFePO4
Configuration	16S (48V Nominal)
Continuous Current	150A
Waterproof Rating	Waterproof Design
Balancing Function	Yes
Overcharge Detection Voltage	~3.65V per Cell
Overcharge Release Voltage	~3.4V per Cell
Over Discharge Detection Voltage	~2.5V per Cell
Over Discharge Release Voltage	~3.0V per Cell
Protection	Overcharge, Over Discharge, Overcurrent, Short Circuit
Operating Temperature	-20°C to +60°C



Explore wide range of DALY Smart BMS >

Package Includes:

1 x DALY LiFePO4 16S 48V 150A Waterproof Battery Management System - BMS Protection Board
