DALY LiFePo4 23S 72V 100A is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePo4 battery packs. It employs an A-level protective integrated circuit (IC) that ensures robust safety and efficient performance. Its high load capability with a 100A continuous discharge current makes it an ideal solution for high-demand battery applications. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, while an integrated heat sink significantly aids in cooling.

DALY LiFePo4 23S 72V 100A Waterproof Battery BMS Features:

• State of charge calculations.
• Cell over-voltage and under-voltage protection.
• Intelligent battery balancing (passive).
• Fully sealed waterproof technology with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.

DALY LiFePo4 23S 72V 100A Waterproof Battery BMS Specification:

Specification	Value
Model	LiFePo4 23S 72V 100A
Charge Voltage (V)	83.95
Charge Current (A)	50
Balance Current (mA)	30±5
Balance Detect Voltage (V)	3.50
Working Current (uA)	500
Overcharge Detect Voltage (V)	3.70±0.05
Overcharge Release Voltage (V)	3.65±0.05
Over Discharge Detect (V)	2.2±0.1
Over Discharge Release (V)	2.5±0.1
Working Temperature Range (°C)	-20 to 70
Cable Size (AWG)	7
Length (mm)	166
Width (mm)	65
Height (mm)	24



Explore wide range of DALY Smart BMS >

Package Includes:

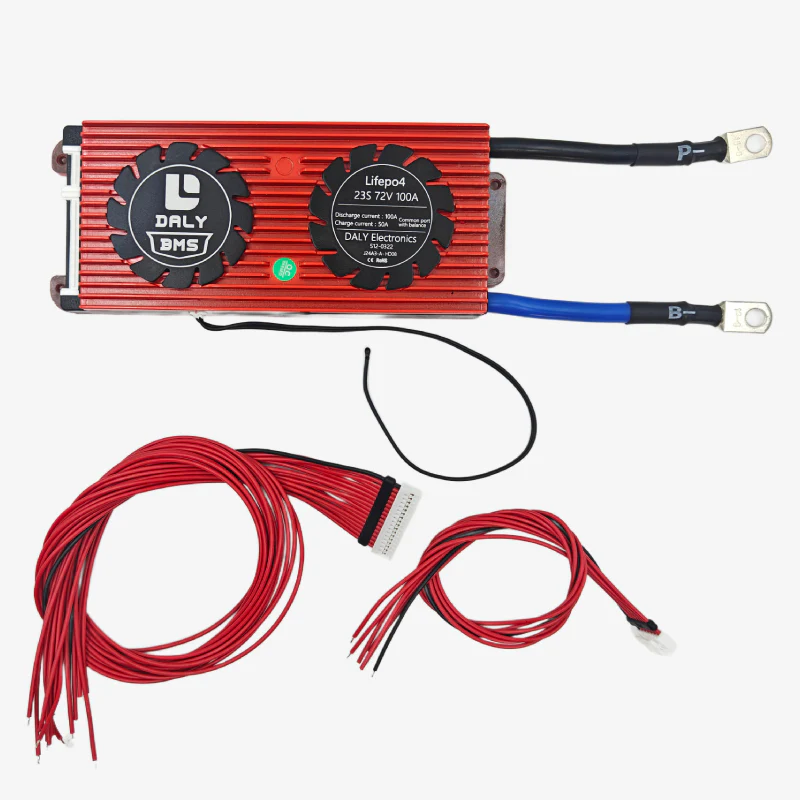

1 x DALY LiFePo4 23S 72V 100A Waterproof Battery Management System - BMS Protection Board
